407 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

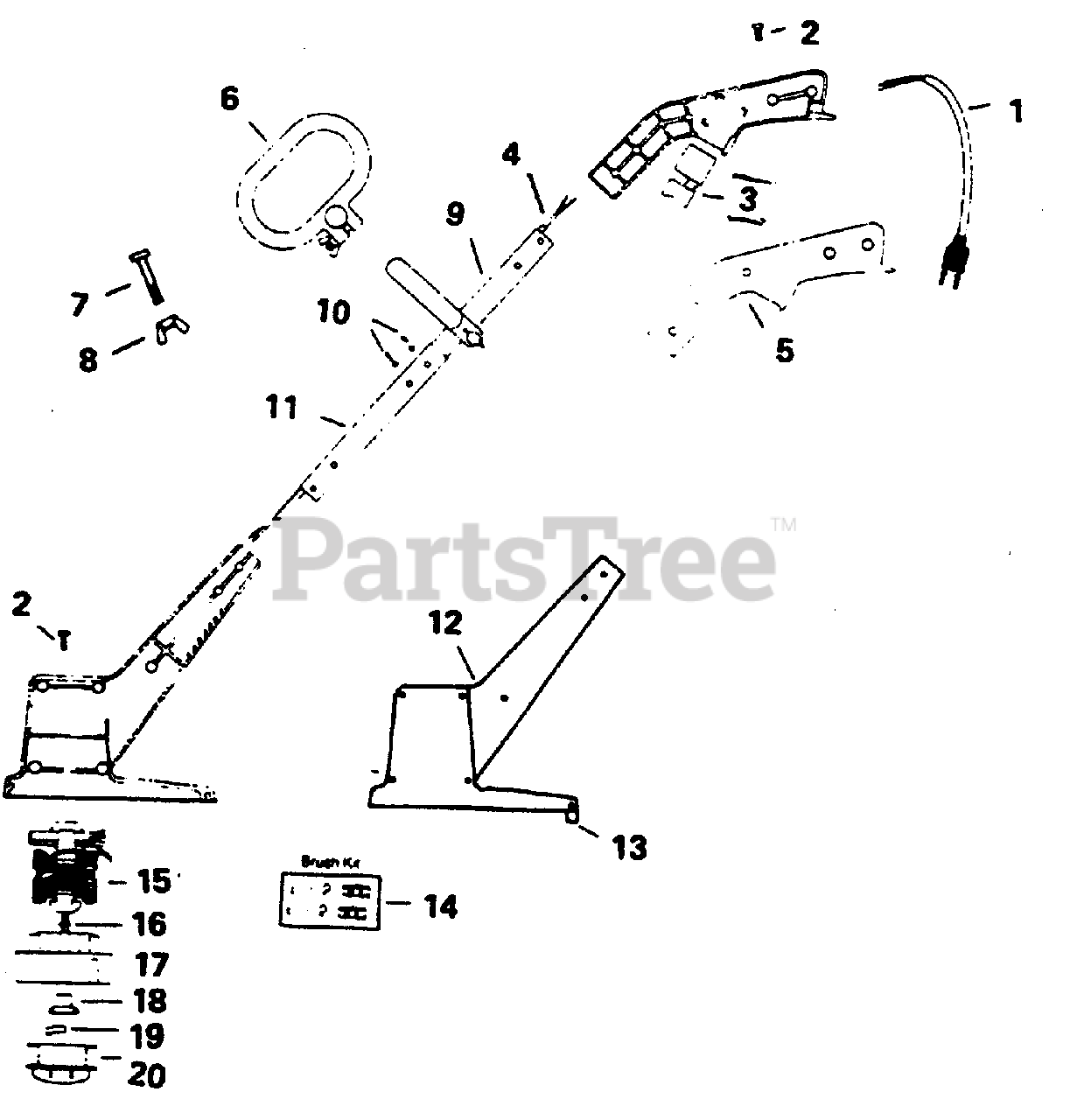

TRIMMER ASSEMBLY Parts Diagram

  • Title
1

Poulan 530090866

POWER CORD PIGTAIL

$

$

Not available

$

$

Not available

3

$

$

Not available

4

$

$

Not available

5

Poulan 530090883

TRIGGER HANDLE SET

$

$

Not available

6

Poulan 530090884

ASSIST HANDLE

$

$

Not available

$

$

Not available

8

Poulan 530092049

WING NUT

$

$

Not available

9

Poulan 530090885

TUBE, UPPER

$

$

Not available

10

Poulan 530092626

TUBE FASTENER KIT

$

$

Not available

11

Poulan 530090888

TUBE, LOWER

$

$

Not available

12

Poulan 530092627

MOTOR HOUSING SET

$

$

Not available

13

Poulan 530090874

TAIL INTERFERENCE BLADE

$

$

Not available

14

Poulan 530090891

BRUSH KIT

$

$

Not available

15

$

$

Not available

16

Poulan 530090878

WASHER-THRUST

$

$

Not available

17

Poulan 530090894

HUB w/LINE SAVERS

$

$

Not available

18

Poulan 530090877

HUB RETAINER

$

$

Not available

19

Poulan 530090895

LINE SAVERS

$

$

Not available

20

Poulan 702503

SPOOL WOUND

$

$

Not available
