407 (590-407-100) - Cub Cadet Backhoe Valve Controls & Hardware Parts Diagram

Backhoe

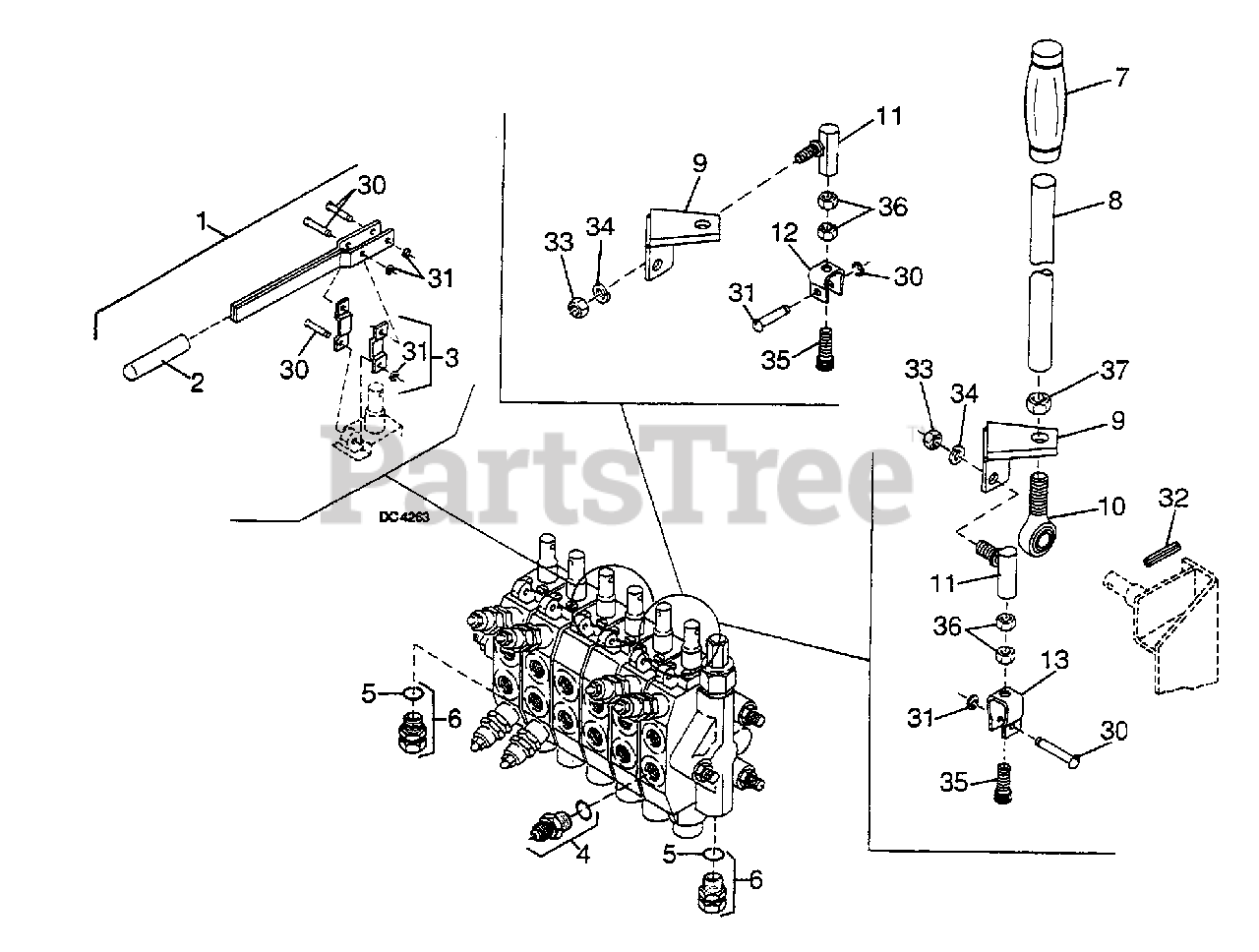

Valve Controls & Hardware Parts Diagram

  • Title

1

Cub Cadet WM-64897

Stabilizer handle assembly

$

$

Not available

2

Cub Cadet WM-31416

Rubber handle

$

$

Not available

3

Cub Cadet WM-67330

Stabilizer handle link kit

$

$

Not available

4

Cub Cadet WM-62367

9/16 - 18 to O-Ring connector

$

$

Not available

5

Cub Cadet WM-34982

#906 O-Ring, .468 ID x .078 cross section

$

$

Not available

6

Cub Cadet WM-31275

9/16 - 18 x 3/8 NPT Union

$

$

Not available

7

Cub Cadet WM-67338

Grip, .63 x 1.06 x 5.0 Black

$

$

Not available

8

Cub Cadet WM-67337

Control handle

$

$

Not available

9

Cub Cadet WM-33970

Handle arm weldment assembly

$

$

Not available

10

Cub Cadet WM-34968

Rod end 7/16 NF male

$

$

Not available

11

Cub Cadet WM-30050

Ball joint, 5/16 NF

$21.99

$

Usually ships in 3-6 days

0

12

Cub Cadet WM-33973

Clevis - Valve spool .69

$

$

Not available

13

Cub Cadet WM-33974

Clevis - Valve spool. 1.00

$

$

Not available

30

Cub Cadet WM-34302

Valve linkage pin

$

$

Not available

31

Cub Cadet WM-34303

.025 x .156 External E-ring

$

$

Not available

32

Cub Cadet WM-4115

3/16 x 1-1/8 Spring pin
(Superseded to 715-0150)

Note: Obtain Locally

$4.49

$

In Stock, Qty 15

0

33

Cub Cadet WM-5283

5/16 NF Hex nut
(Superseded to 912-3057)

Note: Obtain Locally

$6.99

$

In Stock, only 3 left!

0

34

Cub Cadet WM-2472

5/16 Standard lockwasher
(Superseded to 936-0119)

Note: Obtain Locally

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet WM-33653

5/16 NF x 1 Socket head cap screw

$

$

Not available

36

Cub Cadet WM-33654

5/16 NF Hex jam nut
(Superseded to 712-0256)

Note: Obtain Locally

$

$

Not available

37

Cub Cadet WM-29685

7/16 NF Hex nut

Note: Obtain Locally

$

$

Not available
