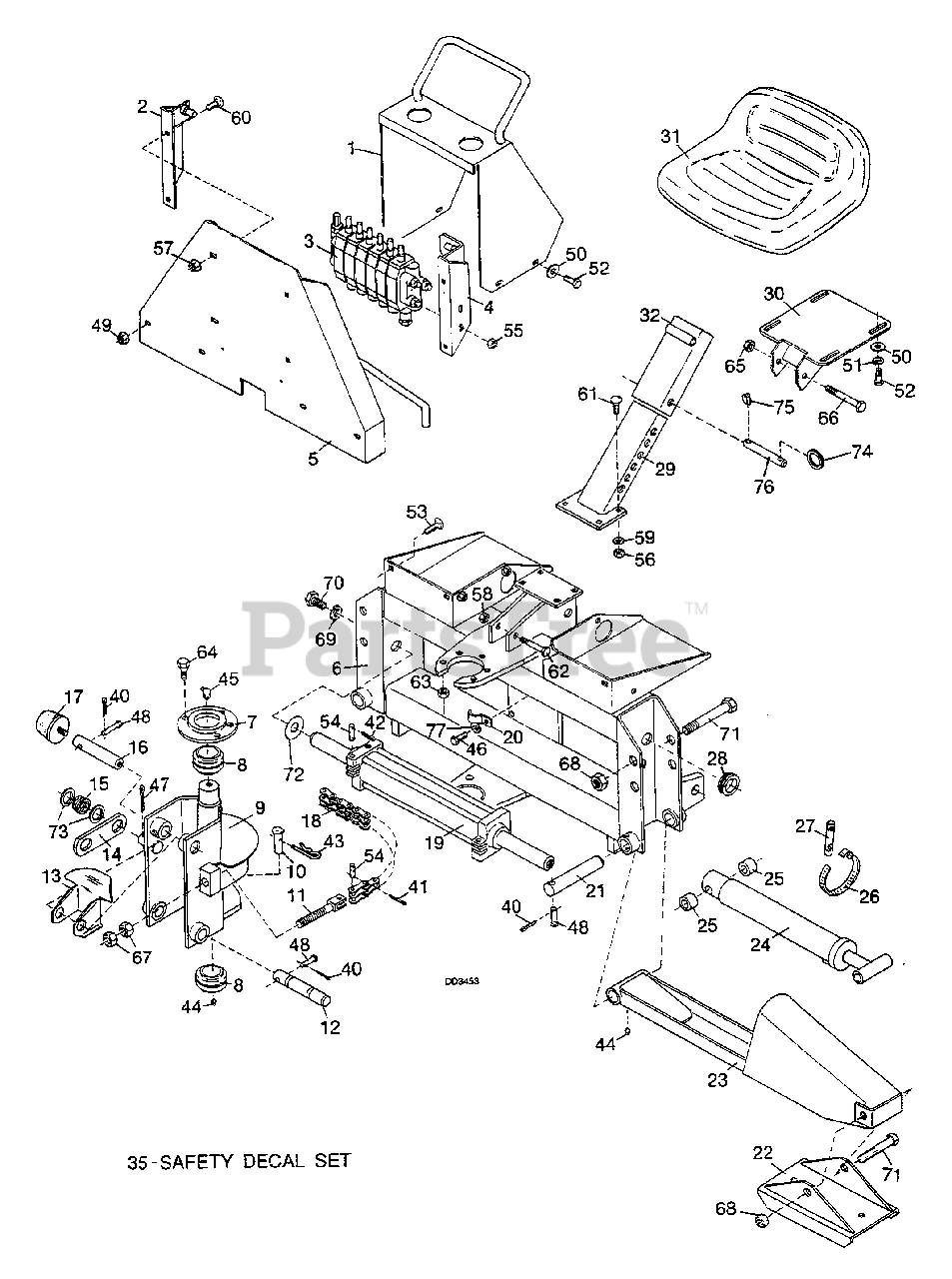

407 (590-407-100) - Cub Cadet Backhoe Main Frame Parts Diagram

Backhoe

Main Frame Parts Diagram

  • Title

1

Cub Cadet WM-66356

Console cover

$2.49

$

Usually ships in 3-6 days

0

2

Cub Cadet WM-33966

Right valve bracket assembly

$

$

Not available

3

Cub Cadet WM-65699

Console valve

Note: (See "Console Valve" illustration and parts list for breakdown)

$

$

Not available

4

Cub Cadet WM-33967

Left valve bracket assembly

$

$

Not available

5

Cub Cadet WM-64908

Valve mounting plate assembly

$

$

Not available

6

Cub Cadet WM-33396

Main frame assembly

$

$

Not available

7

Cub Cadet WM-62327

Cap weldment assembly - Kingpost

$239.99

$

Usually ships in 3-6 days

0

8

Cub Cadet WM-62383

1-1/2 ID Ball bushing

$

$

Not available

9

Cub Cadet WM-33365

Kingpost weldment assembly
(Superseded to WM-59761)

$

$

Not available

10

Cub Cadet WM-33426

Swing lock pin, .5 x 2.75

$

$

Not available

11

Cub Cadet WM-62404

Bolt - Chain tension

$

$

Not available

12

Cub Cadet WM-62266

Pivot pin - 1 x 7.50 Boom

$

$

Not available

13

Cub Cadet WM-33370

Guide - Hose

$

$

Not available

14

Cub Cadet WM-62407

Plate - Latch

$

$

Not available

15

Cub Cadet WM-62072

.072 x .62 Compression spring

$

$

Not available

16

Cub Cadet WM-62504

Pin - 1 x 5.8 Pivot

$

$

Not available

17

Cub Cadet WM-62440

Pad assembly - Bumper

$

$

Not available

18

Cub Cadet WM-62405

Chain - Swing

$

$

Not available

19

Cub Cadet WM-62402

Cylinder assembly - Hydraulic

Note: (See "Backhoe Swing Cylinder" illustration and parts list for breakdown)

$

$

Not available

20

Cub Cadet WM-62269

Clamp - Hose

$

$

Not available

21

Cub Cadet WM-62295

2 Pin - 1 x 6.5 Pivot

$

$

Not available

22

Cub Cadet WM-62312

Pad weldment assembly - Stabilizer

$

$

Not available

23

Cub Cadet WM-62488

Stabilizer weldment assembly

$

$

Not available

24

Cub Cadet WM-62498

2 x 14-1/2 Hydraulic cylinder

Note: (See "2" Bore Hydraulic Bucket & Stabilizer Cylinders" illustration and parts list for breakdown)

$

$

Not available

25

Cub Cadet WM-62512

13/16 x 1-1/4 x 1 Bushing

$

$

Not available

26

Cub Cadet WM-62319

Hose clamp

$

$

Not available

27

Cub Cadet WM-62321

Shield - Hose protector

$

$

Not available

28

Cub Cadet WM-62384

Grommet - .25 x 1.0 x 1.38

$

$

Not available

29

Cub Cadet WM-33469

Lower seat support

$

$

Not available

30

Cub Cadet WM-62244

Seat bracket weldment assembly

$

$

Not available

31

Cub Cadet WM-30039

Seat

$

$

Not available

32

Cub Cadet WM-33466

Upper seat support

$

$

Not available

35

Cub Cadet WM-66314

1 Safety decal set

$

$

Currently unavailable

40

Cub Cadet WM-62523

1/16 x 1/2 Cotter pin

Note: Obtain Locally

$

$

Not available

41

Cub Cadet WM-3145

3/32 x 1/2 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

42

Cub Cadet WM-62531

3/32 x 1-1/2 Cotter pin

Note: Obtain Locally

$

$

Not available

43

Cub Cadet WM-18270

3/16 Safety pin

Note: Obtain Locally

$

$

Currently unavailable

44

Cub Cadet WM-6270

Straight 1/4 tapered thread grease fitting
(Superseded to 737-04345)

Note: Obtain Locally

$4.99

$

In Stock, Qty 6

0

45

Cub Cadet WM-2985

1/4 - 28 Threaded 90° grease fitting
(Superseded to 737-3004)

Note: Obtain Locally

$11.99

$

In Stock, only 4 left!

0

46

Cub Cadet WM-2457

1/4 NC x 3/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

47

Cub Cadet WM-1285

1/4 x 1-1/2 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

48

Cub Cadet WM-62425

1/4 x 1-7/8 Clevis pin

$

$

Not available

49

Cub Cadet WM-14139

5/16 NC Flanged hex locknut

$

$

Not available

50

Cub Cadet WM-4378

5/16 Standard flat washer

Note: Obtain Locally

$

$

Currently unavailable

51

Cub Cadet WM-2472

5/16 Standard flat washer
(Superseded to 936-0119)

Note: Obtain Locally

$4.99

$

In Stock, Qty 20+

0

52

Cub Cadet WM-6096

5/16 NC x 3/4 Hex head cap screw GR5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet WM-16148

5/16 NC x 3/4 Carriage bolt

Note: Obtain Locally

$

$

Not available

54

Cub Cadet WM-62399

Pin - Chain

$16.99

$

Usually ships in 3-6 days

0

55

Cub Cadet WM-30515

8mm x 1.25mm Pitch hex nut
(Superseded to 712-3077)

$

$

Not available

56

Cub Cadet WM-835

3/8 NC Hex nut, plated
(Superseded to 712-0798)

Note: Obtain Locally

$4.49

$

In Stock, only 2 left!

0

57

Cub Cadet WM-14350

3/8 NC Flanged hex locknut

$

$

Not available

58

Cub Cadet WM-6698

3/8 NC Hex locknut
(Superseded to 912-3000)

Note: Obtain Locally

$4.49

$

In Stock, Qty 9

0

59

Cub Cadet WM-838

3/8 Standard lockwasher

Note: Obtain Locally

$3.99

$

Usually ships in 3-6 days

0

60

Cub Cadet WM-24597

3/8 NC x 3/4 Carriage bolt
(Superseded to 710-0389)

Note: Obtain Locally

$4.49

$

In Stock, Qty 10

0

61

Cub Cadet WM-6697

3/8 NC x 1 Carriage bolt GR5

Note: Obtain Locally

$

$

Not available

62

Cub Cadet WM-7747

3/8 NC x 3 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

63

Cub Cadet WM-62528

7/16 NF Hex locknut

Note: Obtain Locally

$

$

Not available

64

Cub Cadet WM-21016

7/16 NF x 1-1/4 Wheel bolt GR5

$

$

Not available

65

Cub Cadet WM-765

1/2 NC Hex locknut

Note: Obtain Locally

$

$

Not available

66

Cub Cadet WM-10380

1/2 NC x 4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

67

Cub Cadet WM-230

5/8 NC Hex nut
(Superseded to 912-3015)

Note: Obtain Locally

$4.99

$

In Stock, only 2 left!

0

68

Cub Cadet WM-2371

3/4 NC Hex locknut

Note: Obtain Locally

$

$

Currently unavailable

69

Cub Cadet WM-2522

3/4 Standard lockwasher
(Superseded to 936-0364)

Note: Obtain Locally

$

$

Not available

70

Cub Cadet WM-4616

3/4 NC x 1-1/2 Hex head cap screw GR5

$

$

Not available

71

Cub Cadet WM-2377

3/4 NC x 6 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

72

Cub Cadet WM-11204

13/16 x .010 Shim washer

$

$

Not available

73

Cub Cadet WM-62075

10 GA x 1 x 1-1/2 Washer

$

$

Not available

74

Cub Cadet WM-62992

.11 x 1.1 OD Split ring

$

$

Not available

75

Cub Cadet WM-22411

3/16 x 1 Klik pin
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

76

Cub Cadet WM-13817

1/2 x 4-1/2 Clevis pin

$

$

Not available

77

Cub Cadet WM-1985

1/4 Standard lockwasher
(Superseded to 936-0329)

Note: Obtain Locally

$4.49

$

In Stock, Qty 11

0
