407 (590-407-100) - Cub Cadet Backhoe 2-1/2" Bore Hydraulic Boom & Dipperstick Cylinders Parts Diagram

Backhoe

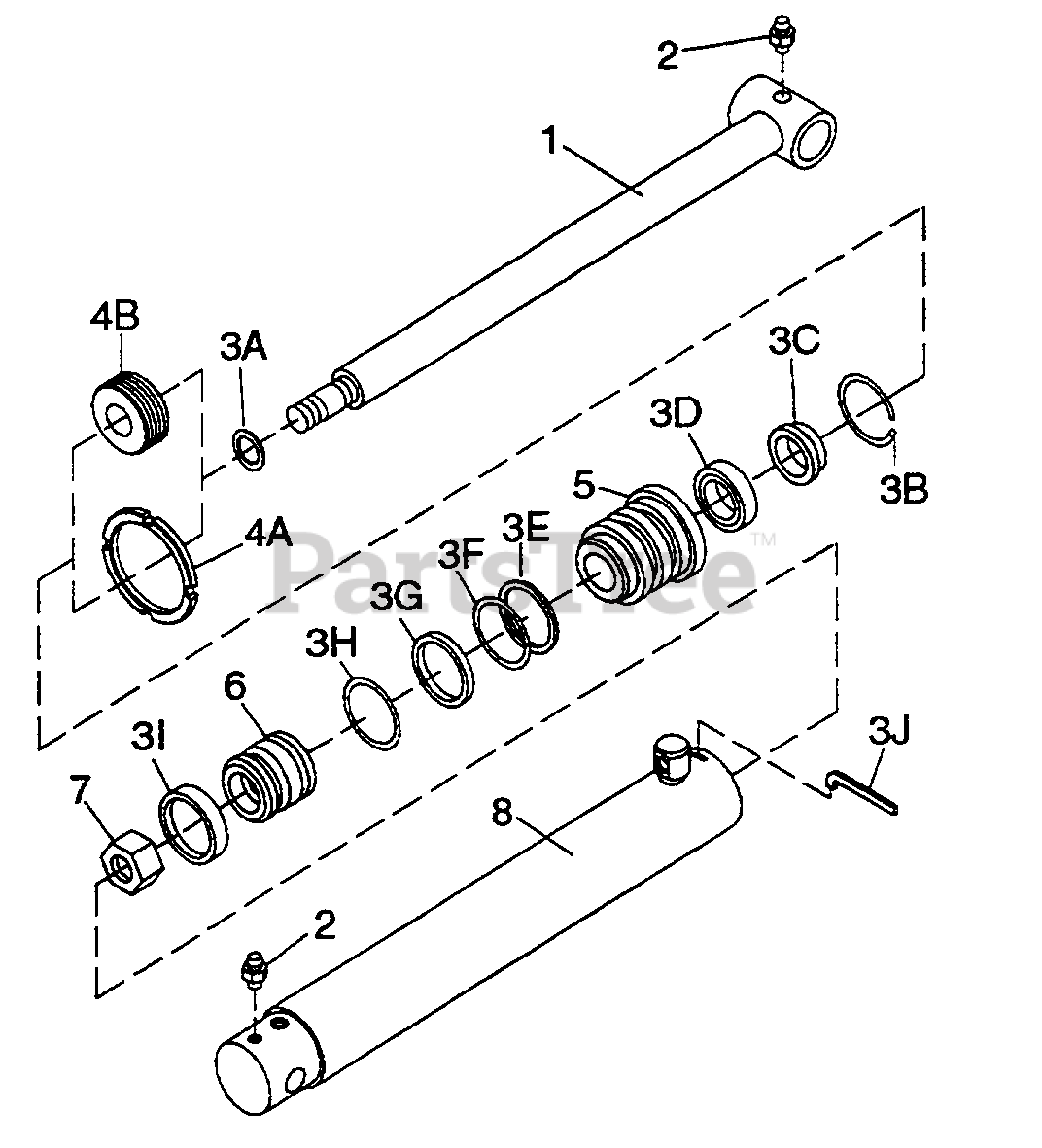

2-1/2" Bore Hydraulic Boom & Dipperstick Cylinders Parts Diagram

  • Title

Cub Cadet WM-62290

2-1/2" Bore hydraulic cylinder complete

$

$

Not available

1

Cub Cadet WM-65593

Piston rod, 1-1/4 diameter

$

$

Not available

2

Cub Cadet WM-1972

Grease fitting, 1/4-28 tapered thread
(Superseded to 937-0146)

Note: Obtain Locally

$5.49

$

In Stock, only 2 left!

0

?3

Cub Cadet WM-65587

Seal kit for 2-1/2 cylinder

Note: (Contains 3A thru 3J)

$

$

Not available

3A

O-Ring, 3/4 ID x 7/8 OD

Note: Included in Seal Kit

$

$

Not available

3B

Round retaining ring, 2-1/2 internal

Note: (E394 & later);

$

$

Not available

3C

Wiper ring, heavy section 1-1/4

Note: Included in Seal Kit

$

$

Not available

3D

U-Cup, 1-1/4 ID x 5/8 OD x 5/16 deep

Note: Included in Seal Kit

$

$

Not available

3E

Back-up washer, 2-1/4 ID x 2-1/2 OD

Note: Included in Seal Kit

$

$

Not available

3F

O-Ring, 2-1/4 ID x 2-1/2 OD

Note: Included in Seal Kit

$

$

Not available

3G

Piston ring, Teflon 2-1/2 OD

Note: Included in Seal Kit

$

$

Not available

3H

O-Ring, 2-1/16 ID x 2-1/4 OD

Note: Included in Seal Kit

$

$

Not available

3I

Wear ring, 2-1/2 OD x 1/2 x 1/8 thick

Note: Included in Seal Kit

$

$

Not available

3J

Retaining wire

Note: (Not used on 407); Included in Seal Kit

$

$

Not available

4A

Cub Cadet WM-64978

Spanner nut, .250 x 2.875 OD

Note: (E394 & later)

$

$

Not available

4B

Cub Cadet WM-65591

Threaded retainer, 2-1/2 diameter

Note: (Before E394)

$

$

Not available

5

Cub Cadet WM-64935

Rod guide with thread 2-1/2 diameter

Note: (E394 & later)

$

$

Not available

5

Cub Cadet WM-65590

Rod guide, 2-1/2 diameter

Note: (Before E394)

$

$

Not available

6

Cub Cadet WM-65592

Piston, 2-1/2 OD

$

$

Not available

7

Cub Cadet WM-64874

7/8 NF Self-lock hex nut
(Superseded to 712-0682)

$13.99

$

Usually ships in 3-6 days

0

8

Cylinder barrel, 2-1/2 OD

Note: Not Sold Separately

$

$

Not available
