407 (590-407-100) - Cub Cadet Backhoe att Hydraulic Plumbing To Tractor Parts Diagram

Backhoe

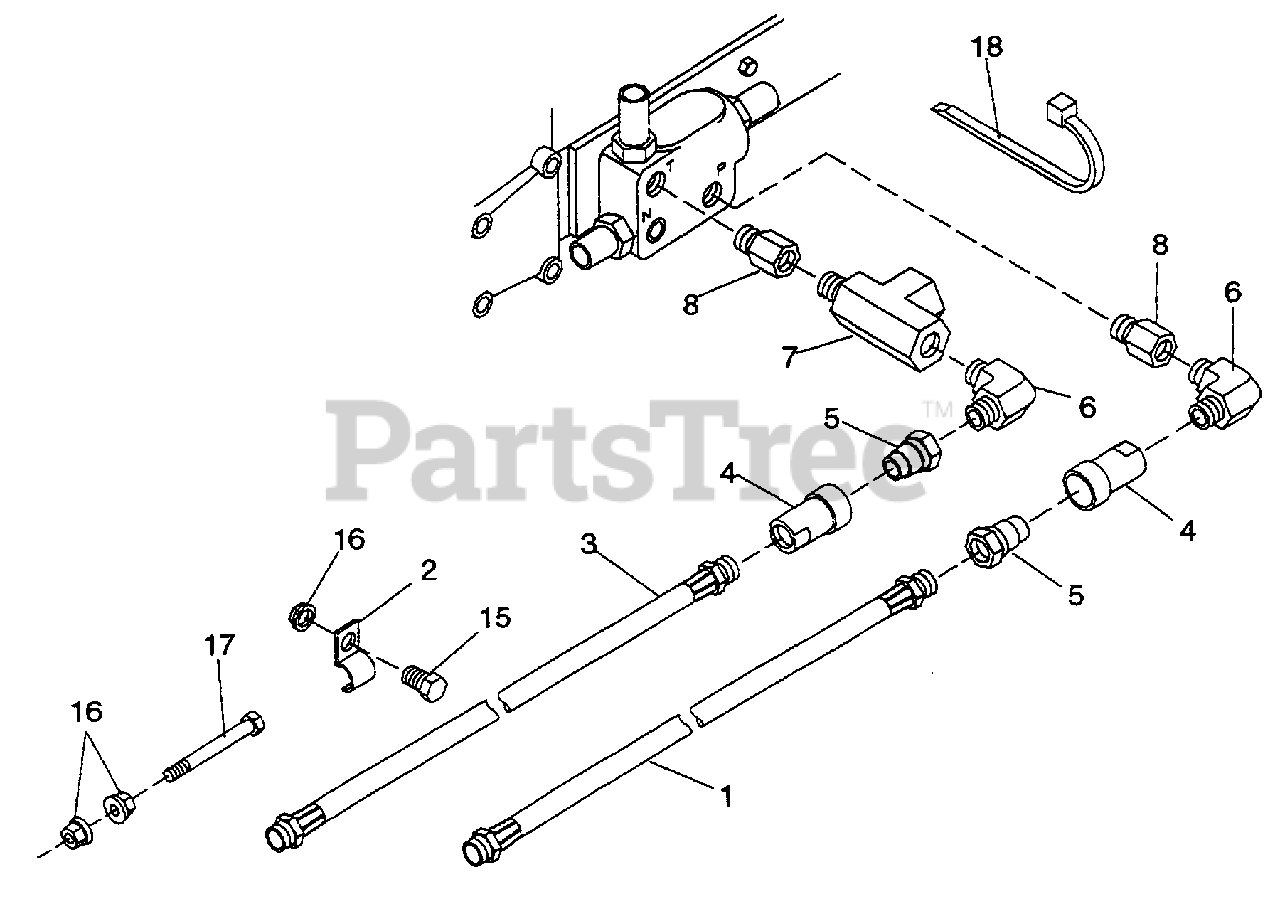

Hydraulic Plumbing To Tractor Parts Diagram

  • Title

1

Cub Cadet WM-28657

Hose, 3/8 NPT x 92"

$

$

Not available

2

Cub Cadet WM-34169

Hose clamp

$2.49

$

Usually ships in 3-6 days

0

3

Cub Cadet WM-34223

Hose, 3/8 NPT x 100"

$

$

Not available

4

Cub Cadet WM-64299

Quick coupler, 3/8 NPT female
(Superseded to WM-31-6007)

$153.99

$

Usually ships in 3-6 days

0

5

Cub Cadet WM-64300

Quick coupling, 3/8 NPT male
(Superseded to WM-31-6007)

$153.99

$

Usually ships in 3-6 days

0

6

Cub Cadet WM-66367

Elbow, Male 3/8 NPT x 90°

$

$

Not available

7

Cub Cadet WM-66368

Run tee, 3/8 NPT

$

$

Not available

8

Cub Cadet WM-66369

Adapter, 3/8 BSTP Male 3/8 NPT

$

$

Not available

15

Cub Cadet WM-2457

1/4 NC x 3/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

16

Cub Cadet WM-62521

1/4 NC Flanged locknut

Note: Obtain Locally

$

$

Not available

17

Cub Cadet 11353

1/4 NC x 4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

18

Cub Cadet 31407

Hydraulic hose tie, 7" long

Note: Obtain Locally

$

$

Currently unavailable
