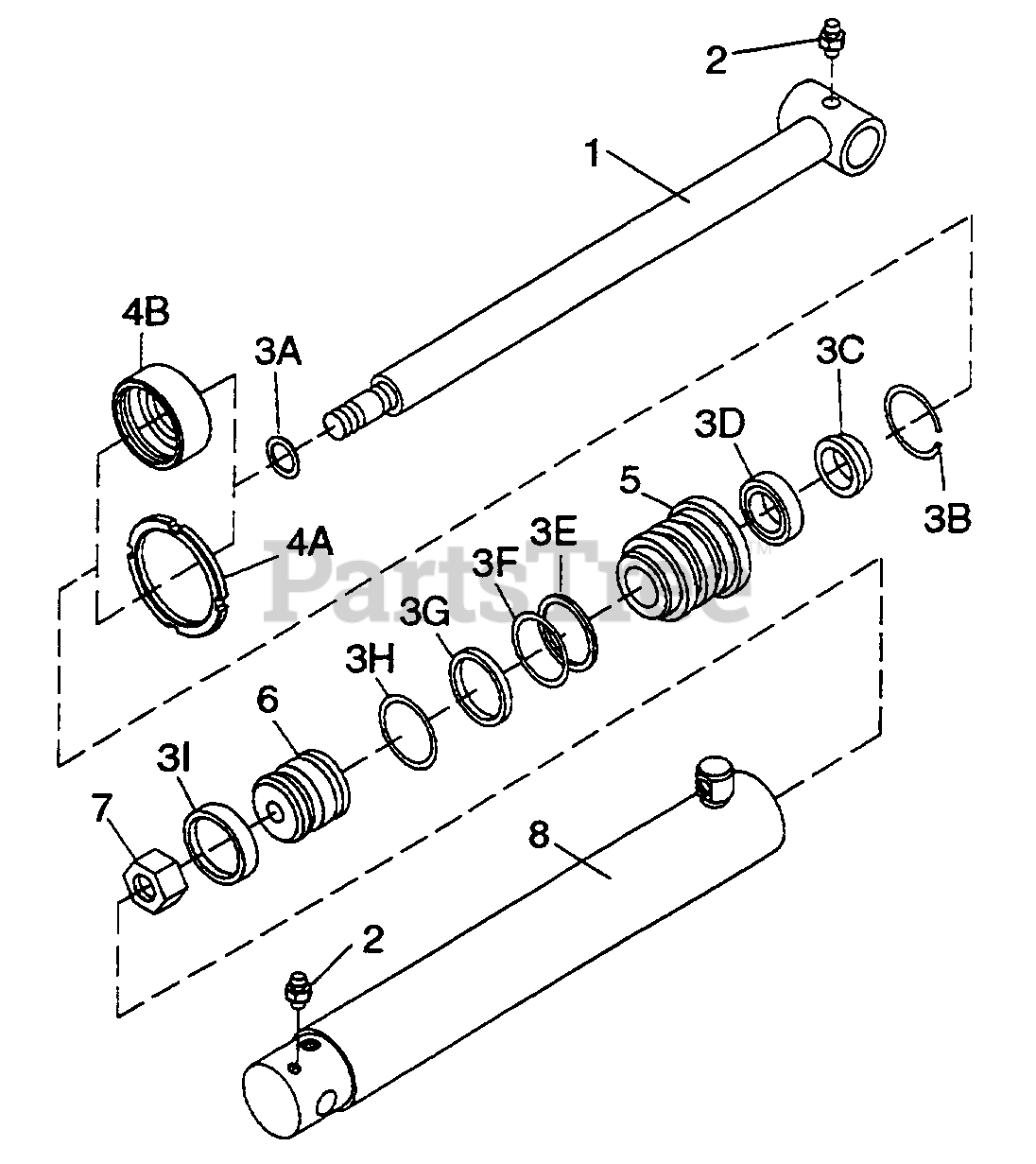

  • Title

Cub Cadet WM-62498

Hydraulic cylinder complete

$

$

Not available

1

Cub Cadet WM-65658

Piston rod, 1-1/8 diameter

$

$

Not available

2

Cub Cadet WM-1972

Grease fitting, 1/4-28 tapered thread
(Superseded to 937-0146)

Note: Obtain Locally

$5.49

$

In Stock, only 2 left!

0

?3

Cub Cadet WM-65586

Seal kit for 2" cylinder

Note: (Contains items 3A thru 3I)

$

$

Not available

3A

O-Ring, 3/4 ID x 7/8 OD

Note: Included in Seal Kit

$

$

Not available

3B

Round retaining ring, 2" internal

Note: (E394 & later);

$

$

Not available

3C

Wiper ring, heavy section 1-1/8

Note: (The 1-1/4 wiper ring included in seal kit is not used on this model); Included in Seal Kit

$

$

Not available

3D

U-Cup, 1-1/8 ID x 1-1/2 OD x 5/16 deep

Note: (The 1-1/4 U-cup included in seal kit is not used on this model); Included in Seal Kit

$

$

Not available

3E

Back-up washer, 1-3/4 ID x 2 OD

Note: Included in Seal Kit

$

$

Not available

3F

O-Ring, 1-3/4 ID x 2 OD

Note: Included in Seal Kit

$

$

Not available

3G

Piston ring, Teflon 2 OD

Note: Included in Seal Kit

$

$

Not available

3H

O-Ring, 1-9/16 ID x 1-3/4 OD

Note: Included in Seal Kit

$

$

Not available

3I

Wear ring, 2 OD x 1/2 wide X 1/8 thick

Note: Included in Seal Kit

$

$

Not available

4A

Cub Cadet WM-65067

Spanner nut, .250 x 2.375 OD

Note: (E394 & later)

$

$

Not available

4B

Cub Cadet WM-65581

2" Hydraulic cylinder collar

Note: (Before E394)

$

$

Not available

5

Cub Cadet WM-65041

Rod guide, 1-5/8 x 2 diameter

Note: (E394 & later)

$

$

Not available

5

Cub Cadet WM-65582

Rod guide, 1-7/8 x 2 diameter

Note: (Before E394)

$

$

Not available

6

Cub Cadet WM-65580

Piston, 2 OD

$36.99

$

Usually ships in 3-6 days

0

7

Cub Cadet WM-64874

7/8 NF Self-lock hex nut
(Superseded to 712-0682)

$13.99

$

Usually ships in 3-6 days

0

8

Cylinder barrel, 2 ID

Note: (Not sold separately)

$

$

Not available
