40694 - Gravely 32" Snow Blower for 2-Wheel Tractor BLOWER HOUSING AND CONTROLS Parts Diagram

32" Snow Blower for 2-Wheel Tractor

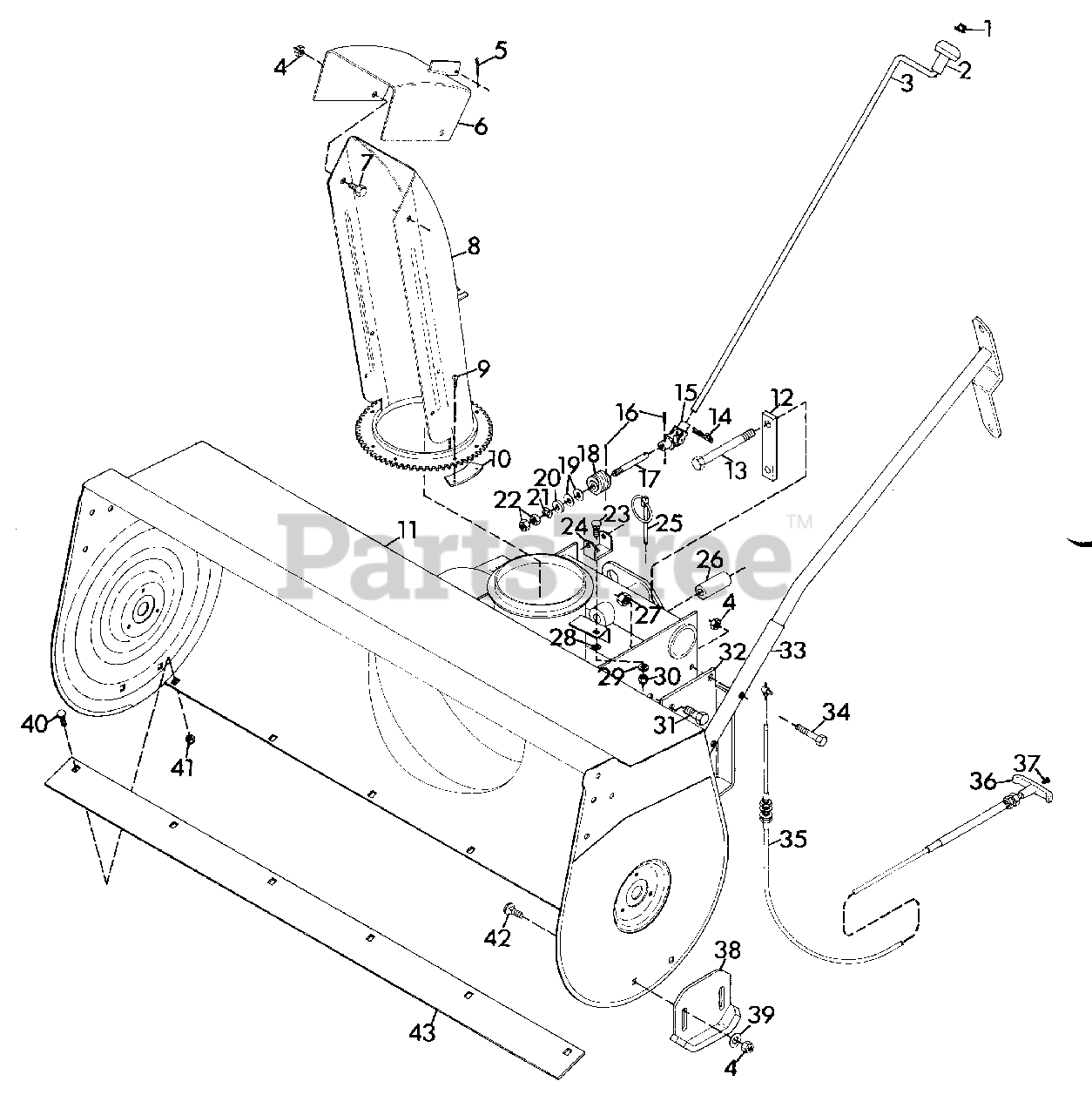

BLOWER HOUSING AND CONTROLS Parts Diagram

  • Title
1

Gravely 036903

CAP
(Superseded to 01019800)

$2.99

$

In Stock, Qty 15

0

2

Gravely 036902

KNOB
(Superseded to 07508300)

$13.99

$

In Stock, Qty 7

0

3

Gravely 038849

CRANK, CHUTE CONTROL
(Superseded to 03330600)

$

$

Not available

4

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

6

Gravely 036893

CHUTE DEFLECTOR

$

$

Not available

7

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 038835

DISCHARGE CHUTE
(Superseded to 02449953)

$

$

Not available

9

Gravely 038836

SCREW, TAPTITE #10-24X.375
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 036894

CLAMP, CHUTE
(Superseded to 52409200)

$29.99

$

In Stock, only 1 left!

0

11

Gravely 038829

32" SNO THRO HOUSING
(Superseded to 03329000)

$

$

Not available

12

Gravely 035053

STRAP, LOCKING
(Superseded to 08538200)

$62.99

$

In Stock, only 2 left!

0

13

Gravely 433156

BOLT, HEX 1/2-13X4.50
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

14

Gravely 036075

HAIR PIN, INTERNAL
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 039376

ASSEMBLY, U-JOINT
(Superseded to 02470400)

$129.99

$

Usually ships in 4-12 days

0

16

Gravely 415236

PIN, SPRING .125X.750
(Superseded to 05803400)

$0.99

$

In Stock, Qty 16

0

17

Gravely 038841

WORM SHAFT
(Superseded to 02451400)

$

$

Not available

18

Gravely 038839

WORM GEAR, L.H.
(Superseded to 02450000)

$45.99

$

Usually ships in 4-12 days

0

19

Gravely 038840

WASHER, PLASTIC .390X.875X.0
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

20

Gravely 038842

WASHER, .390X.875X.7 GA.
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 038843

WAVE WASHER
(Superseded to 01320200)

$3.49

$

In Stock, Qty 7

0

22

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

24

Gravely 038837

WORM CLEVIS
(Superseded to 02212300)

$15.99

$

Usually ships in 4-12 days

0

25

Gravely 021244

PIN, SELF-LOCKING
(Superseded to 07014300)

$11.99

$

Usually ships in 4-12 days

0

26

Gravely 035054

SPACER
(Superseded to 08538800)

$37.99

$

Usually ships in 4-12 days

0

27

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 138489

WASHER, LOCK 3/8 EXT. TH. TYA
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

31

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

32

Gravely 040463

BRACKET, SUPPORT
(Superseded to 03331600)

$102.99

$

Usually ships in 4-12 days

0

33

Gravely 038846

CRANK SUPPORT
(Superseded to 03329743)

$

$

Not available

34

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

35

Gravely 036898

CABLE, CONTROL
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

36

Gravely 036910

HANDLE, TEE
(Superseded to 07513700)

$47.99

$

Usually ships in 4-12 days

0

37

Gravely 036911

SCREW, MACHINE 10-32X.50
(Superseded to 06106500)

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 040825

RUNNER, SKID SHOE
(Superseded to 03075553)

$39.99

$

Usually ships in 4-12 days

0

39

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 126353

BOLT, 5/16-18X.875 RD HD SQ NK
(Superseded to 06209200)

$

$

Not available

41

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

43

Gravely 040457

SCRAPER BLADE
(Superseded to 03331543)

$59.99

$

In Stock, only 1 left!

0

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

NS

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 038847

DECAL, CHUTE
(Superseded to 03330700)

$

$

Not available

NS

Gravely 038848

DECAL, DEFLECTOR
(Superseded to 03330800)

$

$

Not available
