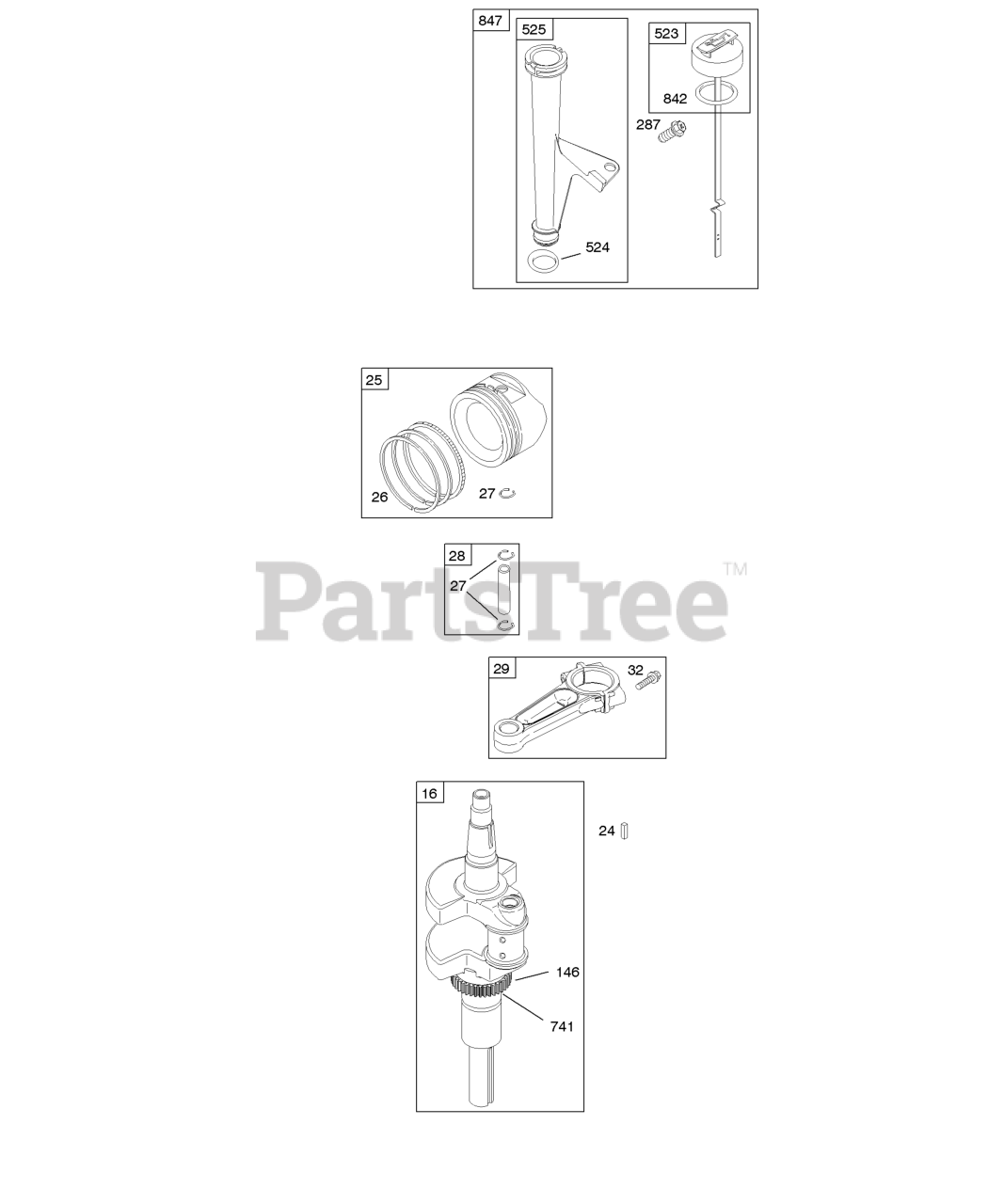

406677-0373-E1 - Briggs & Stratton Vertical Engine Camshaft, Crankshaft, Lubrication, Piston, Rings, Connecting Rod Parts Diagram

Vertical Engine

Camshaft, Crankshaft, Lubrication, Piston, Rings, Connecting Rod Parts Diagram

  • Title

16

Briggs & Stratton 699700

Crankshaft
(Superseded to 595707)

$385.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499588

Piston Assembly
(Superseded to 793647)

Note: (Standard)

$137.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 499590

Piston Assembly
(Superseded to 793648)

Note: (.020" Oversize)

$159.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499604

Ring Set

Note: (Standard)

$69.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 499606

Ring Set

Note: (.020" Oversize)

$61.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690975

LOCK, Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Briggs & Stratton 690229

Pin-Piston

Note: (Standard)

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 699699

Rod-Connecting
(Superseded to 796209)

Note: (Standard)

$18.99

$

In Stock, Qty 20+

0

32

Briggs & Stratton 690976

SCREW

Note: (Connecting Rod)

$4.49

$

In Stock, Qty 19

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

287

Briggs & Stratton 691108

SCREW

Note: (Dipstick Tube)

$3.49

$

In Stock, Qty 20+

0

523

Briggs & Stratton 691036

Dipstick
(Superseded to 594528)

$18.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 691037

TUBE, Dipstick
(Superseded to 597129)

$21.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 690980

GEAR, Timing

$14.99

$

In Stock, only 2 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 499602

Dipstick/Tube Assembly
(Superseded to 594609)

$47.99

$

In Stock, only 2 left!

0
