40564x86A - Murray 40" Lawn Tractor (1999) Chassis & Hood Parts Diagram

40" Lawn Tractor

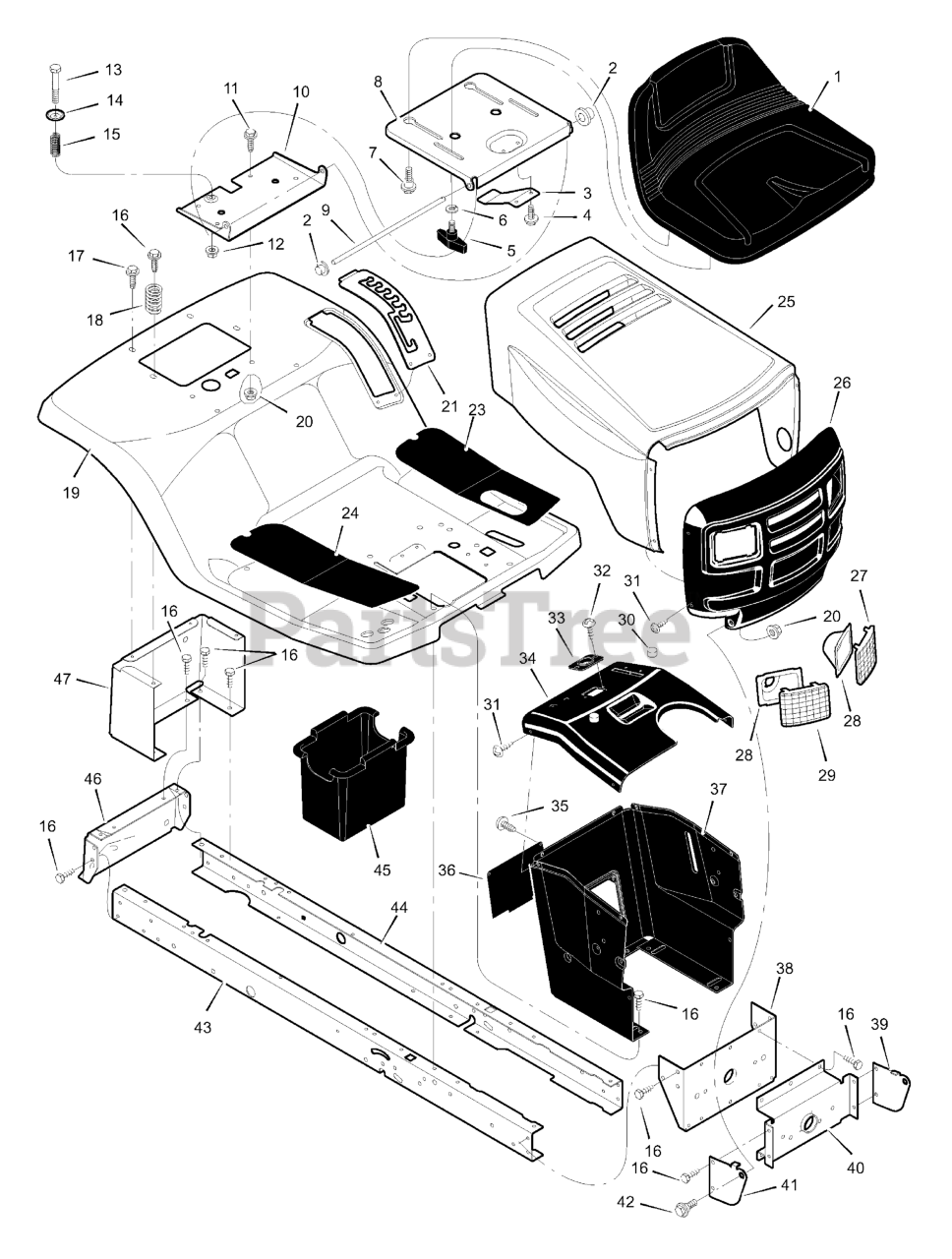

Chassis & Hood Parts Diagram

  • Title

1

Murray 094162

Seat

$

$

Currently unavailable

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

3

Murray 094057MA

Spring

$5.99

$

Usually ships in 2-12 days

0

4

Murray 26X229MA

Screw

$4.49

$

In Stock, only 1 left!

0

5

Murray 094160

Bolt, Wing

$

$

Not available

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E700

Support, Seat

$

$

Currently unavailable

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 094153E700MA

Bracket, Pivot
(Superseded to 1001648E701MA)

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

12

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094155 Z

Washer

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

Murray 26X249MA

Screw

$

$

Not available

17

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

18

Murray 164X30MA

Spring

$15.99

$

Usually ships in 2-12 days

0

19

Murray 95122E245

Deck, Seat

$

$

Currently unavailable

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 094829E700

Plate, Index

$50.99

$

Usually ships in 2-12 days

0

23

Murray 094999MA

Mat, Left

$18.99

$

In Stock, only 1 left!

0

24

Murray 094998MA

Mat, Right

$

$

Not available

25

Murray 094072E245

Hood

$

$

Currently unavailable

26

Murray 094079E701MA

Grille

$104.99

$

In Stock, only 1 left!

0

27

Murray 094081MA

Lens, Left

$

$

Not available

28

Murray 094807 Z

Bezel

$

$

Currently unavailable

29

Murray 094080MA

Lens, Right

$9.49

$

In Stock, only 2 left!

0

30

UNKNOWN

$

$

Not available

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

Murray 26X239MA

Screw

$4.49

$

Usually ships in 2-12 days

0

33

Murray 094075

Bearing, Steering

$

$

Currently unavailable

34

Murray 094074E700

Dash

$

$

Currently unavailable

35

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

36

Murray 093007E701MA

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

37

Murray 095318E701MA

Support, Dash

$155.99

$

Usually ships in 2-12 days

0

38

Murray 094013E701MA

Bracket, Rear Hanger
(Superseded to 1001270E701MA)

$165.99

$

Usually ships in 2-12 days

0

39

Murray 094083E700

Support, Left Grille

$

$

Currently unavailable

40

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

Murray 094082E700

Support, Right Grille

$

$

Currently unavailable

42

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

43

Murray 690206E700

Frame, Right

$

$

Currently unavailable

44

Murray 690207E700

Frame, Left

$

$

Currently unavailable

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E701

Plate, Hitch

$

$

Not available

47

Murray 690434E700

Panel, Rear

$87.99

$

Usually ships in 2-12 days

0

--

Murray 48X175

Decal, Right Hood

$

$

Currently unavailable

--

Murray 48X176

Decal, Left Hood

$

$

Currently unavailable

--

Murray 44X6815MA

Decal, Warning

$9.99

$

Usually ships in 2-12 days

0

--

Murray F-99820

Instruction Book & Parts List

$

$

Currently unavailable
