405618x81A - Yard King 40" Lawn Tractor (2001) Engine Mount Parts Diagram

40" Lawn Tractor

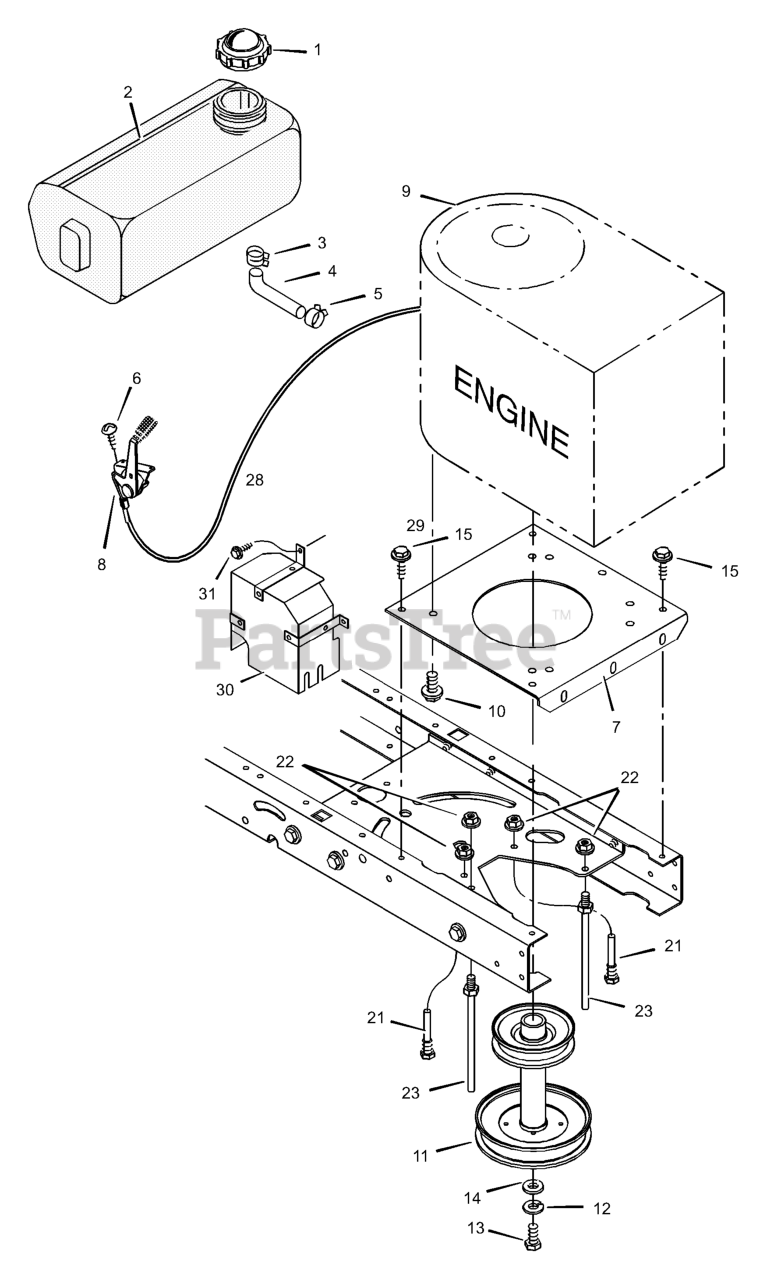

Engine Mount Parts Diagram

  • Title
1

Murray 092317MA

Fuel Cap

Note: (Included with Ref. No. 2)

$10.99

$

In Stock, Qty 7

0

2

Murray 690263MA

Fuel Tank

$

$

Not available

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

4

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 2)

$22.99

$

Usually ships in 2-12 days

0

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

6

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

8

Murray 092371MA

Throttle Control

$37.99

$

Usually ships in 2-12 days

0

9

Engine

$

$

Not available

--

Murray 690436MA

Muffler

$90.99

$

Usually ships in 2-12 days

0

--

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

--

Murray 095207MA

Adapter, Muffler
(Superseded to 796002)

$43.99

$

In Stock, Qty 6

0

--

Murray 06X103MA

Screw, Adapter

$6.49

$

Usually ships in 2-12 days

0

--

Murray 009X59MA

Bolt, Muffler

$6.99

$

In Stock, Qty 9

0

--

Murray 092378MA

Lock, Screw

$5.49

$

In Stock, Qty 9

0

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 5

0

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

14

$

$

Not available

15

$

$

Not available

21

Murray 094384MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

22

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Murray 094781MA

Guide, Belt

$60.99

$

Usually ships in 2-12 days

0

26

$4.49

$

In Stock, only 1 left!

0

28

UNKNOWN

$

$

Not available

29

UNKNOWN

$

$

Not available

30

Murray 092550MA

Shield, Heat

$70.99

$

Usually ships in 2-12 days

0

31

$4.99

$

In Stock, only 1 left!

0
