405607x78A - Murray 40" Lawn Tractor (2006) Steering Parts Diagram

40" Lawn Tractor

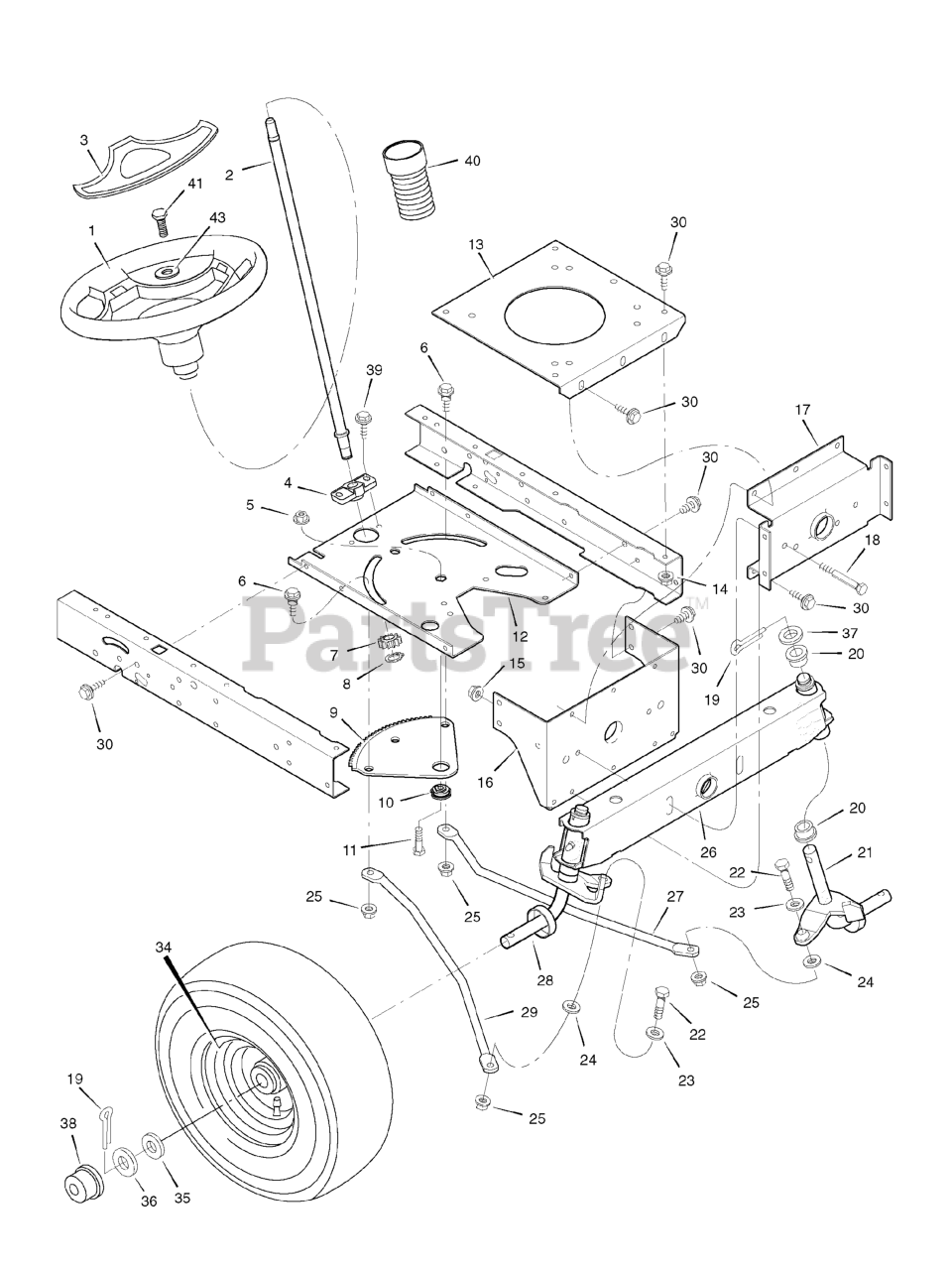

Steering Parts Diagram

  • Title

1

Murray 1001980MA

Wheel, Steering

$87.99

$

Usually ships in 2-12 days

0

2

Murray 690625MA

Post, Steering

Note: (Includes with Ref. Nos. 4, 5, 7 & 8)

$

$

Not available

3

Murray 1001982MA

Cover, Steering Wheel

$24.99

$

In Stock, only 1 left!

0

4

Murray 094124MA

Bearing

Note: (Included with Ref. No. 2)

$14.99

$

In Stock, only 1 left!

0

5

Murray 15X111MA

Nut, Flange

Note: (Included with Ref. No. 2)

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X57MA

Bolt, Shoulder

$9.99

$

In Stock, Qty 11

0

7

Murray 1001893MA

Gear, Pinion
(Superseded to 690183MA)

Note: (Included with Ref. No. 2)

$

$

Not available

8

Murray 011X25MA

Ring, Snap

Note: (Included with Ref. No. 2)

$4.49

$

In Stock, Qty 5

0

9

Murray 094121MA

Gear, Sector

$

$

Not available

10

Murray 094123MA

Bearing

$12.99

$

In Stock, only 1 left!

0

11

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

12

Murray 1001121E701MA

Plate, Steering
(Superseded to 7300867ZMA)

$

$

Not available

13

Murray 094006E701MA

Plate, Engine

$114.99

$

Usually ships in 2-12 days

0

14

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

15

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

16

Murray 1001270E701MA

Bracket, Hanger

$165.99

$

Usually ships in 2-12 days

0

17

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

18

Murray 01X146MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

19

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

20

Murray 690150MA

Bearing

$8.99

$

In Stock, only 2 left!

0

21

Murray 094576E701MA

Spindle Assembly, Left

$186.99

$

Usually ships in 2-12 days

0

22

Murray 01X111MA

Bolt

$4.49

$

In Stock, only 1 left!

0

23

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

24

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

25

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Murray 1001460E701MA

Axle Assembly

$108.99

$

Usually ships in 2-12 days

0

27

Murray 095329E701MA

Drag Link, Left

$20.99

$

Usually ships in 2-12 days

0

28

Murray 094575E701MA

Spindle Assembly, Right

$173.99

$

Usually ships in 2-12 days

0

29

Murray 095328E701MA

Drag Link, Right

$

$

Not available

30

Murray 26X249MA

Screw

$

$

Not available

34

Murray 094581601MA

Wheel and Tire Assembly
(Superseded to 094581650MA)

$159.99

$

In Stock, only 1 left!

0

35

Murray 17X195MA

Washer

$4.99

$

In Stock, only 4 left!

0

36

Murray 17X192MA

Washer

$4.99

$

In Stock, Qty 15

0

37

Murray 17X113MA

Washer

$3.99

$

In Stock, only 2 left!

0

38

Murray 094618MA

Hub Cap

$5.99

$

In Stock, only 4 left!

0

39

Murray 26X267MA

Screw

$4.99

$

In Stock, Qty 20+

0

40

Murray 092059MA

Bellows

$9.49

$

Usually ships in 2-12 days

0

41

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

43

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0
