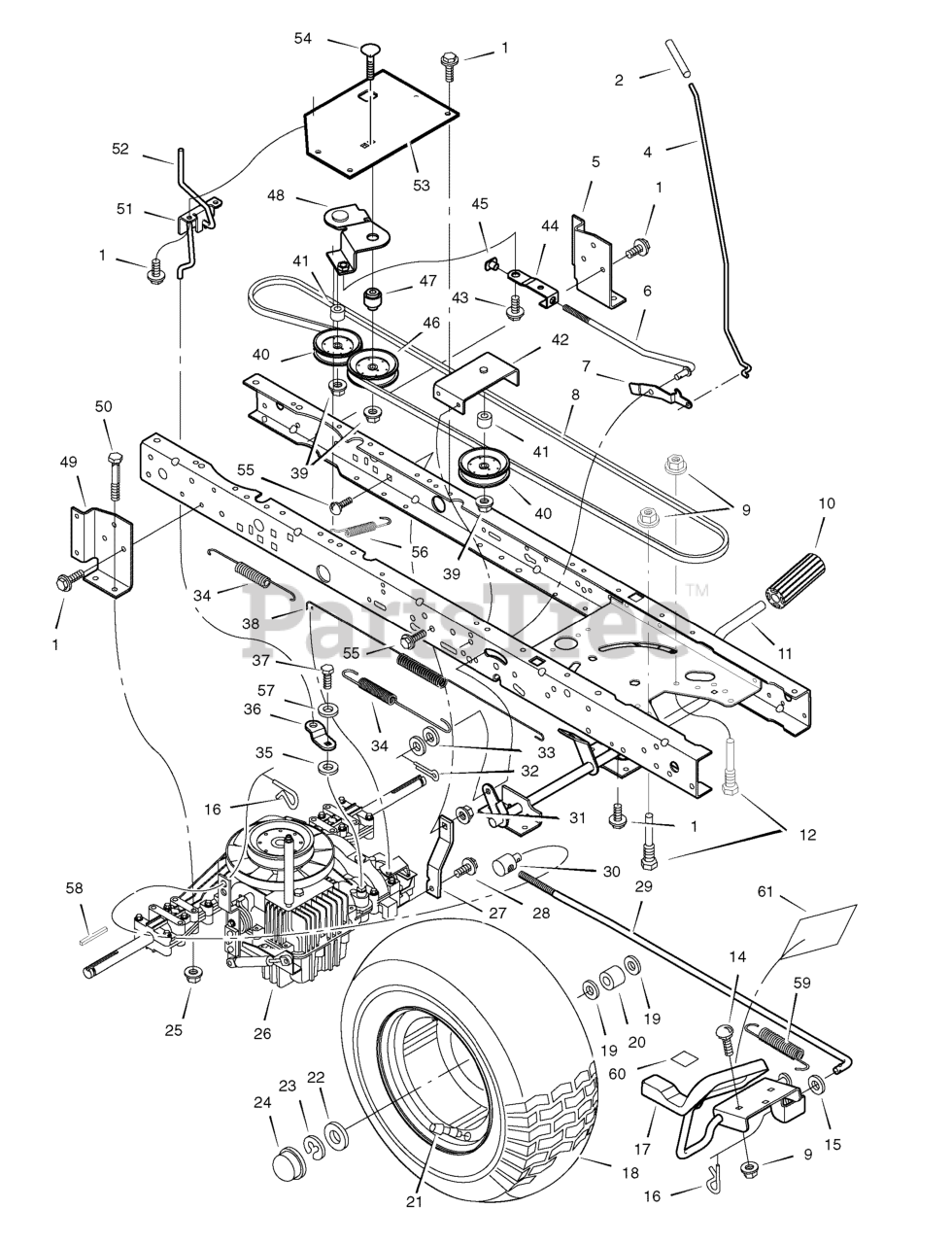

405606x50C - Murray 40" Lawn Tractor (2007) Drive Assembly Parts Diagram

40" Lawn Tractor

Drive Assembly Parts Diagram

  • Title
1

$

$

Not available

2

Murray 091079MA

GRIP, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

4

Murray 1001245ZMA

ROD, Parking Brake

$33.99

$

Usually ships in 2-12 days

0

5

Murray 094008E701MA

BRACKET, Left Transaxle

$34.99

$

Usually ships in 2-12 days

0

6

Murray 1001013ZMA

ROD, Clutch

$26.99

$

Usually ships in 2-12 days

0

7

Murray 094045ZMA

LATCH, Parking Brake

$45.99

$

Usually ships in 2-12 days

0

8

Murray 37X106MA

V-BELT, Drive

$43.99

$

In Stock, only 1 left!

0

9

Murray 015X79MA

NUT, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Murray 021544MA

PEDAL, Brake/Clutch
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

11

Murray 1001011E701MA

BRAKE PEDAL ASSEMBLY

$43.99

$

Usually ships in 2-12 days

0

12

Murray 094384MA

SCREW, Guide

$4.49

$

Usually ships in 2-12 days

0

14

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

15

$4.49

$

Usually ships in 2-12 days

0

16

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 095121E701MA

PEDAL ASSEMBLY, Hydro

$112.99

$

Usually ships in 2-12 days

0

18

Murray 092294601MA

WHEEL & TIRE ASSEMBLY, Rear

$128.99

$

Usually ships in 2-12 days

0

--

Murray 091914MA

Tire ONLY *

$128.99

$

Usually ships in 2-12 days

0

--

Murray 407049MA

TUBE ONLY

$68.99

$

Usually ships in 2-12 days

0

19

$4.99

$

In Stock, Qty 20+

0

20

$17.99

$

In Stock, only 2 left!

0

21

Murray 024373MA

STEM, Valve

$

$

Not available

22

$4.99

$

In Stock, Qty 5

0

23

$5.49

$

In Stock, Qty 20+

0

24

Murray 094618MA

CAP, Hub

$5.99

$

Usually ships in 2-12 days

0

25

Murray 015X88MA

NUT, Centerlock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

26

Transaxle, Peerless Hydro **

$

$

Not available

27

Murray 1001085E701MA

Strap, Torque **

$10.99

$

Usually ships in 2-12 days

0

28

$6.99

$

In Stock, Qty 5

0

29

Murray 1001234ZMA

ROD, Control

$

$

Not available

30

Murray 092132ZMA

NUT, Adjusting

$14.99

$

Usually ships in 2-12 days

0

31

Murray 015X84MA

NUT, Centerlock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

32

Murray 030X20MA

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

33

$8.49

$

Usually ships in 2-12 days

0

34

Murray 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 2 left!

0

35

$3.99

$

Usually ships in 2-12 days

0

36

Murray 1001086ZMA

ARM, Disconnect

$34.99

$

Usually ships in 2-12 days

0

37

$3.99

$

In Stock, only 1 left!

0

38

Murray 165X150MA

SPRING, Brake

$29.99

$

In Stock, only 1 left!

0

39

Murray 015X98MA

LOCKNUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

40

Murray 690409MA

PULLEY, Idler

$19.99

$

In Stock, Qty 13

0

41

$

$

Not available

42

Murray 1001097E701MA

BRACKET, Idler Assembly

$22.99

$

Usually ships in 2-12 days

0

43

Murray 009X49MA

BOLT, Shoulder

$5.49

$

In Stock, only 1 left!

0

44

Murray 1001007ZMA

LINK, Clutch

$5.49

$

Usually ships in 2-12 days

0

45

Murray 1001014MA

NUT, Tee

$4.99

$

Usually ships in 2-12 days

0

46

Murray 690410MA

PULLEY, Idler

$19.99

$

In Stock, only 1 left!

0

47

Murray 1001012MA

BUSHING, Pivot

$9.49

$

Usually ships in 2-12 days

0

48

Murray 1001018ZMA

ARM ASSEMBLY, Idler

$

$

Not available

49

Murray 094008E701MA

BRACKET, Right Transaxle

$34.99

$

Usually ships in 2-12 days

0

50

Murray 01X155MA

BOLT, Hex
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

51

Murray 1001214ZMA

BRACKET, Dump Valve

$9.99

$

Usually ships in 2-12 days

0

52

Murray 1001215ZMA

ROD, Roll Release

$16.99

$

Usually ships in 2-12 days

0

53

Murray 1001108E701MA

BRACKET, Idler Pivot

$24.99

$

Usually ships in 2-12 days

0

54

Murray 002X92MA

BOLT, Carriage

$4.99

$

In Stock, only 4 left!

0

55

Murray 002X78MA

BOLT, Carriage

$3.49

$

Usually ships in 2-12 days

0

56

Murray 165X155MA

SPRING, Clutch

$6.49

$

In Stock, only 1 left!

0

57

$3.99

$

Usually ships in 2-12 days

0

58

Murray 021553MA

KEY, Square 3/16"

$4.99

$

In Stock, only 2 left!

0

59

Murray 165X168MA

SPRING, Extension

$5.99

$

Usually ships in 2-12 days

0

60

Murray 093249MA

MAT, Toe Reverse

$3.49

$

Usually ships in 2-12 days

0

61

Murray 094953MA

PAD, Hydro Pedal

$

$

Not available
