405601x30A - Murray 40" Lawn Tractor (2003) Mower Housing Parts Diagram

40" Lawn Tractor

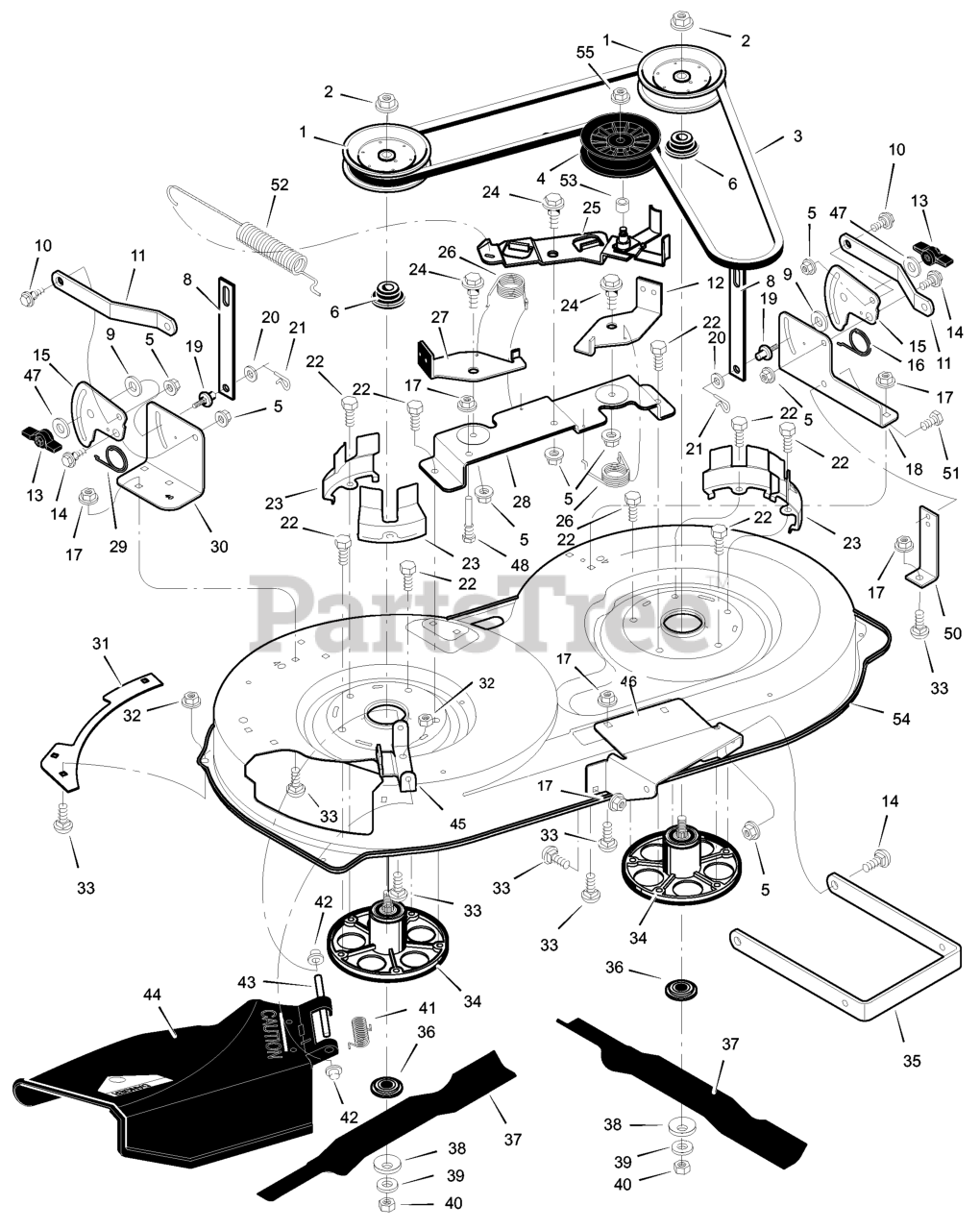

Mower Housing Parts Diagram

  • Title

1

Murray 092851MA

Pulley, Jackshaft

$28.99

$

Usually ships in 2-12 days

0

2

Murray 15X140MA

Nut, Hex

$9.99

$

In Stock, Qty 7

0

3

Murray 037X62MA

Belt, Mower Drive

$33.99

$

Usually ships in 2-12 days

0

4

Murray 690387MA

Pulley, Idler

$

$

Not available

5

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 1001197MA

Spacer, Pulley

$12.99

$

In Stock, only 2 left!

0

8

Murray 690212E700

Link, Lift

$

$

Currently unavailable

9

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 8

0

10

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

11

Murray 094055E700

Bracket, Suspension

$

$

Currently unavailable

12

Murray 094049E700

Pad Assembly, Left Brake

$

$

Currently unavailable

13

Murray 094068MA

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

15

Murray 094128E700MA

Plate, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

16

Murray 166X43MA

Spring

$4.99

$

In Stock, only 2 left!

0

17

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 094143E700

Bracket, Suspension

$26.99

$

Usually ships in 2-12 days

0

19

Murray 095194

Pin, Hanger
(Superseded to 095194MA)

$20.99

$

In Stock, only 1 left!

0

20

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

21

Murray 0031X4MA

Pin, Cotter
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

23

Murray 094051E700

Cover, Pulley

$

$

Currently unavailable

24

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

25

Murray 690408E700

Arm, Idler

$

$

Currently unavailable

26

Murray 0166X41

Spring

$4.99

$

In Stock, only 2 left!

0

27

Murray 094047E700

Pad Assembly, Right Brake

$

$

Currently unavailable

28

Murray 094145E700MA

Bracket Assembly, Brake
(Superseded to 7300733ZYP)

$99.99

$

Usually ships in 2-12 days

0

29

Murray 166X42MA

Spring

$4.99

$

In Stock, Qty 8

0

30

Murray 094142E700

Bracket, Suspension

$

$

Currently unavailable

31

Murray 091770E700MA

Plate
(Superseded to 091770E701MA)

$10.99

$

Usually ships in 2-12 days

0

32

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 18

0

33

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

34

Murray 1001200MA

Mandrell

$82.99

$

In Stock, only 3 left!

0

35

Murray 690539E700

Bracket, Suspension

$

$

Currently unavailable

36

Murray 690411MA

Adapter, Blade

$

$

Not available

37

Murray 095103E701MA

Blade

$19.99

$

In Stock, only 2 left!

0

38

Murray 17X166MA

Washer

$13.99

$

In Stock, Qty 18

0

39

Murray 17X165MA

Washer

$16.99

$

In Stock, only 4 left!

0

40

Murray 15X100MA

Nut

$3.99

$

In Stock, Qty 10

0

41

Murray 0166X4MA

Spring

$6.49

$

In Stock, Qty 9

0

42

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

43

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

44

Murray 094707MA

Deflector Assembly

$108.99

$

In Stock, only 3 left!

0

45

Murray 094956E700

Bracket, Deflector

$

$

Currently unavailable

46

Murray 094144E700

Bracket, Front Hanger

$

$

Currently unavailable

47

Murray 017X45 Z

Washer

$

$

Currently unavailable

48

Murray 94781

Guide, Belt

$60.99

$

Usually ships in 2-12 days

0

50

Murray 094681E700

Bracket, Support

$13.99

$

Usually ships in 2-12 days

0

51

Murray 26X249MA

Screw

$

$

Not available

52

Murray 165X119MA

Spring, Extension

$13.99

$

In Stock, only 1 left!

0

54

Murray 094141E701MA

Housing, Blade

Note: (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 47 and 51)

$

$

Not available

55
