40536x4A - Murray 40" Lawn Tractor (1997) Motion Drive Parts Diagram

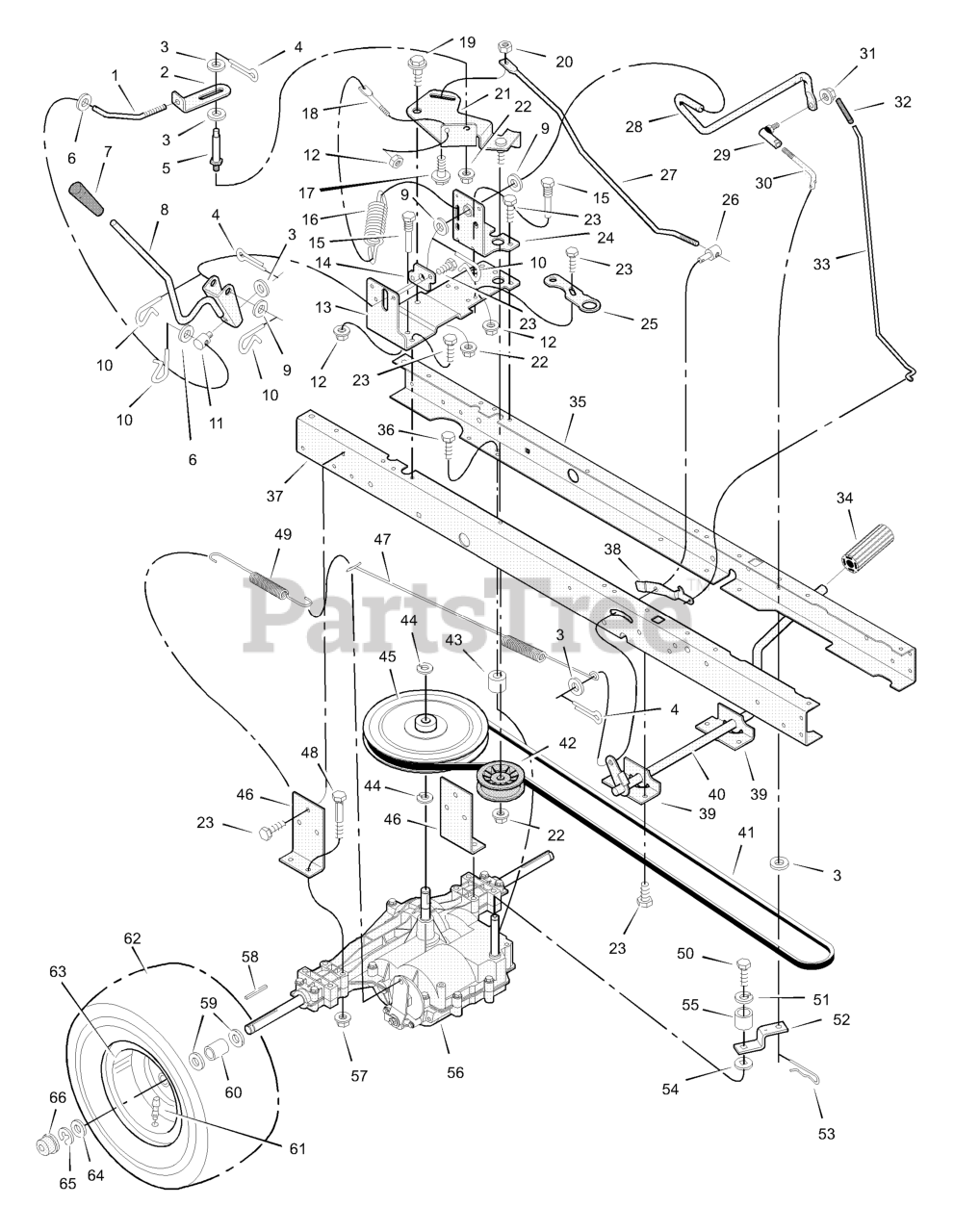

40" Lawn Tractor

Motion Drive Parts Diagram

  • Title
1

Murray 094166 Z

Rod, Adjuster

$

$

Currently unavailable

2

Murray 094183 Z

Link, Clutch

$

$

Currently unavailable

3

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

4

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

5

Murray 094146

Spacer, Stud

$

$

Currently unavailable

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

$6.49

$

Usually ships in 2-12 days

0

8

Murray 094170 Z

Lever, Shift

$

$

Currently unavailable

9

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

10

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

11

$37.99

$

Usually ships in 2-12 days

0

12

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Murray 94033E701

Bracket, Shifter

$

$

Currently unavailable

14

Murray 94164E701

Plate, Pivot

$

$

Currently unavailable

15

Murray 093349MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

16

Murray 165X116MA

Spring, Extension

$8.49

$

Usually ships in 2-12 days

0

17

Murray 009X54MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

18

Murray 94042

Stud, Spring
(Superseded to 691632)

$8.49

$

In Stock, only 1 left!

0

19

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, only 4 left!

0

20

Murray 015X89MA

Locknut

$4.49

$

Usually ships in 2-12 days

0

21

Murray 094040 Z

Arm Assembly, Idler

$

$

Currently unavailable

22

Murray 015X84MA

Locknut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

$

$

Not available

24

Murray 94034E701

Bracket, Shift

$

$

Currently unavailable

25

Murray 94032E701

Plate, Shift

$

$

Currently unavailable

26

Murray 094815ZMA

Nut, Adjuster

$21.99

$

Usually ships in 2-12 days

0

27

Murray 094041 Z

Rod, Clutch

$

$

Currently unavailable

28

Murray 094167 Z

Rod, Shift

$

$

Currently unavailable

29

Murray 021031MA

Joint, Ball

$18.99

$

Usually ships in 2-12 days

0

30

Murray 094172 Z

Link, Shift

$

$

Currently unavailable

31

Murray 015X87

Locknut

$4.49

$

In Stock, only 1 left!

0

32

$

$

Currently unavailable

33

Murray 094152 Z

Rod, Parking Brake

$

$

Currently unavailable

34

Murray 021544MA

Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, only 4 left!

0

35

Murray 94001 E701

Frame, Left

$

$

Currently unavailable

36

$5.99

$

Usually ships in 2-12 days

0

37

Murray 94000E701

Frame, Right

$

$

Currently unavailable

38

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

39

Murray 94035E701

Bracket, Pedal

$24.99

$

Usually ships in 2-12 days

0

40

Murray 94038E701

Lever, Clutch/Brake

$72.99

$

Usually ships in 2-12 days

0

41

$28.99

$

In Stock, Qty 16

0

42

Murray 091179MA

Pulley, Idler

$17.99

$

In Stock, Qty 16

0

43

$16.99

$

In Stock, only 1 left!

0

44

Murray 0011X7MA

Ring, Snap

$3.99

$

In Stock, only 4 left!

0

45

Murray 091807

Pulley, Drive

$

$

Currently unavailable

46

Murray 094008E701MA

Bracket, Transaxle

$34.99

$

Usually ships in 2-12 days

0

47

Murray 165X115MA

Spring, Extension

$21.99

$

Usually ships in 2-12 days

0

48

Murray 01X155MA

Bolt
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

49

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

50

$4.49

$

Usually ships in 2-12 days

0

51

Murray 018X32MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

52

Murray 094031ZMA

Yoke, Shift

$15.99

$

Usually ships in 2-12 days

0

53

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

54

$3.99

$

Usually ships in 2-12 days

0

55

Murray 091889

Spacer

$3.99

$

Usually ships in 2-12 days

0

56

Transaxle **

$

$

Not available

57

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

58

Murray 021553MA

Key, Square

$4.99

$

In Stock, only 2 left!

0

59

$4.99

$

In Stock, Qty 20+

0

60

$

$

Currently unavailable

61

Murray 024373MA

Stem, Valve

$

$

Not available

62

Murray 091414

Tire *

$

$

Not available

--

$68.99

$

Usually ships in 2-12 days

0

63

Murray 092289601

Wheel & Tire Assembly

$148.99

$

Usually ships in 2-12 days

0

64

$4.99

$

In Stock, Qty 5

0

65

$5.49

$

In Stock, Qty 15

0

66

Murray 094618MA

Cap, Hub

Note: (Optional)

$5.99

$

In Stock, only 1 left!

0
