40531x50A - Murray 40" Lawn Tractor (1997) Chassis & Hood Parts Diagram

40" Lawn Tractor

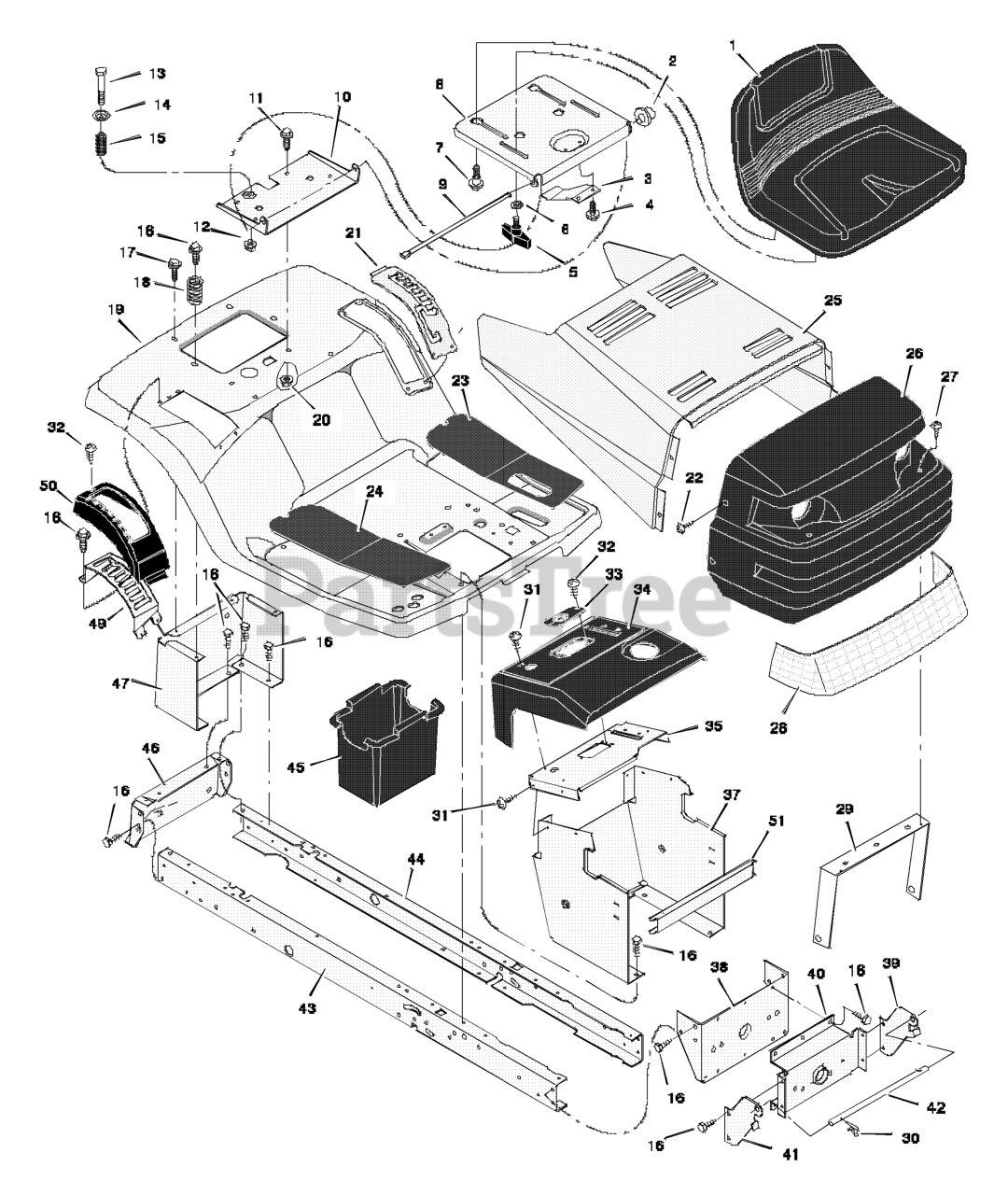

Chassis & Hood Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 094160

Bolt, Wing

$

$

Not available

6

Murray 17X472

Washer

$

$

Currently unavailable

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 94154E245

Support, Seat

$

$

Currently unavailable

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 94153E717

Bracket, Pivot

$

$

Currently unavailable

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

Murray 94173E245

Deck, Seat

$

$

Currently unavailable

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

21

Murray 94829E701

Plate, Index

$50.99

$

Usually ships in 2-12 days

0

22

UNKNOWN

$

$

Not available

23

Murray 094149

Mat, Left

$

$

Not available

24

Murray 094148

Mat, Right

$

$

Currently unavailable

$273.99

$

Usually ships in 2-12 days

0

26

Murray 94867E717

Grille Assembly

Note: (Includes Lens)

$

$

Currently unavailable

27

$4.49

$

In Stock, only 2 left!

0

28

$79.99

$

Usually ships in 2-12 days

0

29

Murray 092448

Brace, Grille

$

$

Not available

30

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 094214MA

Bearing, Steering

$4.99

$

Usually ships in 2-12 days

0

34

$104.99

$

Usually ships in 2-12 days

0

35

Murray 94211E701

Plate, Dash

$

$

Currently unavailable

36

Murray 93007E717

Panel, Access

$

$

Currently unavailable

37

Murray 94210E717

Support, Dash

$

$

Currently unavailable

38

Murray 094013E701MA

Bracket, Rear Hanger
(Superseded to 1001270E701MA)

$165.99

$

Usually ships in 2-12 days

0

39

Murray 94213E701

Support, Left Grille

$

$

Currently unavailable

40

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

Murray 94212E701

Support, Right Grille

$

$

Currently unavailable

42

Murray 092332 Z

Rod, Pivot

$

$

Currently unavailable

43

Murray 94000E701

Frame, Right

$

$

Currently unavailable

44

Murray 94001 E701

Frame, Left

$

$

Currently unavailable

45

Murray 094069

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 94002E717MA

Plate, Hitch

$

$

Not available

47

Murray 94023E717

Panel, Rear

$

$

Currently unavailable

49

Murray 94171E701

Gate, Shift

$

$

Currently unavailable

50

Murray 094138

Cover, Shift Gate

$

$

Currently unavailable

51

$16.99

$

Usually ships in 2-12 days

0

--

Murray 44X6764

Decal, Right Hood

$

$

Currently unavailable

--

Murray 44X6765

Decal, Left Hood

$

$

Currently unavailable

--

Murray 44X6815MA

Decal, Warning

$9.99

$

Usually ships in 2-12 days

0

--

Murray 44X6283

Decal, Shifter

$

$

Currently unavailable

--

Murray F-97797

Book, Instruction

$

$

Currently unavailable

--

Murray F-97798

Book, Instruction

$

$

Currently unavailable

--

Murray F-97799

Parts List

$

$

Currently unavailable
