40530x83A - Briggs & Stratton 40" Lawn Tractor (1997) Mower Housing Suspension Parts Diagram

40" Lawn Tractor

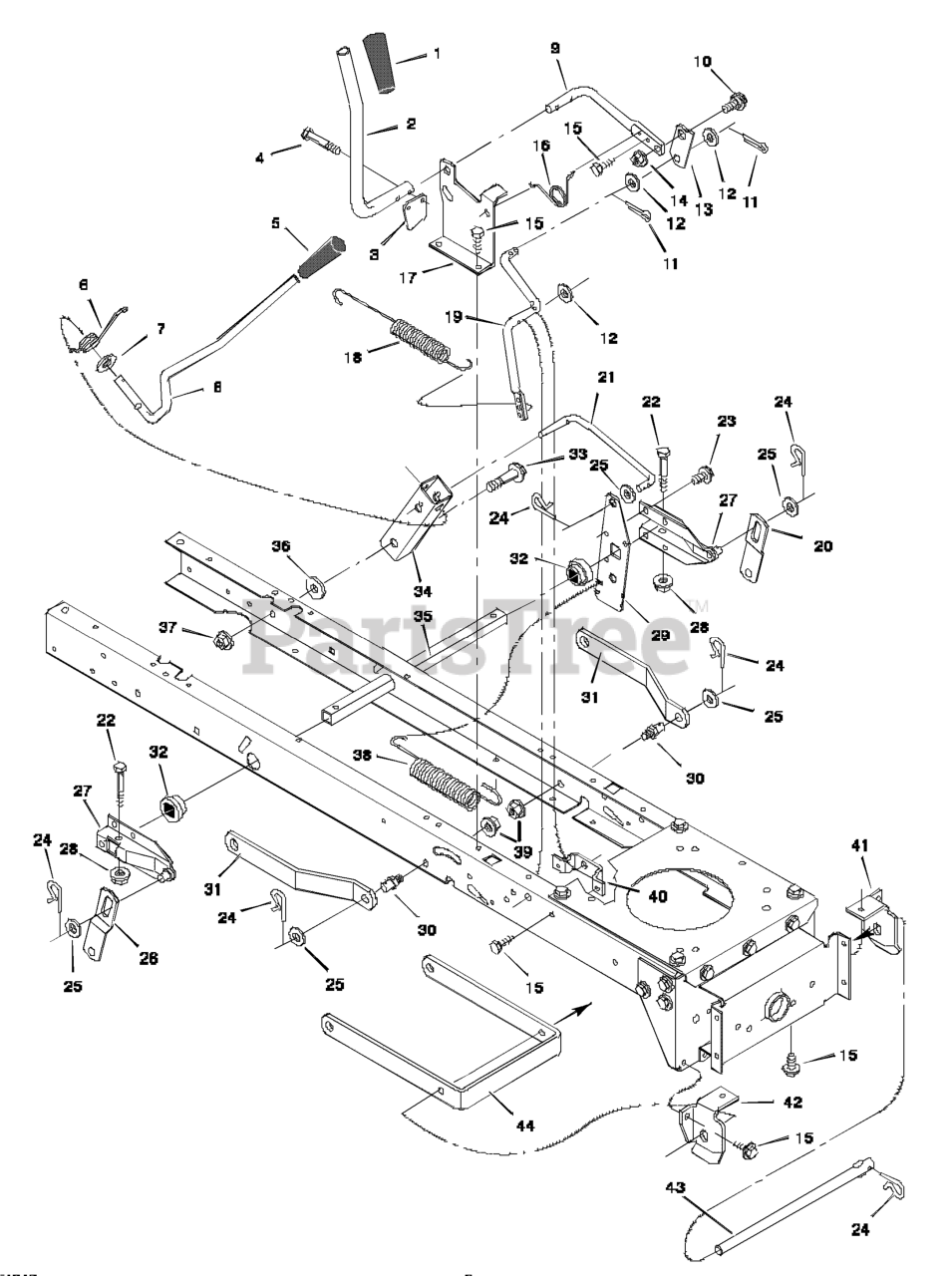

Mower Housing Suspension Parts Diagram

  • Title

1

Murray 092698MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

2

Murray 094157 Z

Handle

$

$

Currently unavailable

3

Murray 94022E701

Pad, Switch

$

$

Currently unavailable

4

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

5

Murray 092697MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

6

Murray 166X40MA

Spring

$6.49

$

Usually ships in 2-12 days

0

7

Murray 17X103MA

Washer

$4.99

$

In Stock, only 2 left!

0

8

Murray 094029 Z

Lever, Lift

$

$

Currently unavailable

9

Murray 094017 Z

Lever, PTO

$

$

Currently unavailable

10

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

11

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

13

Murray 094004 Z

Link, PTO

$

$

Currently unavailable

14

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Murray 26X249MA

Screw

$

$

Not available

16

Murray 166X39MA

Spring

$5.49

$

Usually ships in 2-12 days

0

17

Murray 94018

Bracket, PTO
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

18

Murray 165X118MA

Spring

$10.99

$

Usually ships in 2-12 days

0

19

Murray 94019 D

Crank, PTO

$

$

Currently unavailable

20

Murray 94611E701

Link, Left Lift

$48.99

$

Usually ships in 2-12 days

0

21

Murray 94028E701

Link, Lift

$

$

Currently unavailable

22

Murray 001X74MA

Bolt

$3.49

$

Usually ships in 2-12 days

0

23

Murray 026X49MA

Screw

$4.49

$

In Stock, only 2 left!

0

24

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

26

Murray 094053E701MA

Link, Right Lift

$35.99

$

In Stock, only 1 left!

0

27

Murray 94180E701

Lever Assembly, Lift

$18.99

$

Usually ships in 2-12 days

0

28

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

29

Murray 94030E701

Plate, Lift Arm

$

$

Not available

30

Murray 094067MA

Pin
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

31

Murray 094055E701MA

Bracket, Rear Suspension

$13.99

$

Usually ships in 2-12 days

0

32

Murray 094065MA

Bushing

$4.49

$

Usually ships in 2-12 days

0

33

Murray 009X53MA

Bolt, Shoulder

$6.99

$

Usually ships in 2-12 days

0

34

Murray 94015E701

Bracket, Pivot

$70.99

$

Usually ships in 2-12 days

0

35

Murray 94063E701

Tube, Deck Lift

$

$

Currently unavailable

36

Murray 17X191MA

Washer

$3.99

$

Usually ships in 2-12 days

0

37

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 165X117MA

Spring

$15.99

$

In Stock, only 1 left!

0

39

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

40

Murray 94005E701

Bracket, PTO

$8.99

$

Usually ships in 2-12 days

0

41

Murray 094027E701MA

Hanger, Left Deck

$22.99

$

Usually ships in 2-12 days

0

42

Murray 094026E701MA

Hanger, Right Deck

$22.99

$

Usually ships in 2-12 days

0

43

Murray 094158ZMA

Rod, Hanger

$28.99

$

Usually ships in 2-12 days

0

44

Murray 94058E701

Bracket, Suspension

$

$

Currently unavailable
