405013x50C - Murray 40" Lawn Tractor (2007) Chassis & Hood Parts Diagram

40" Lawn Tractor

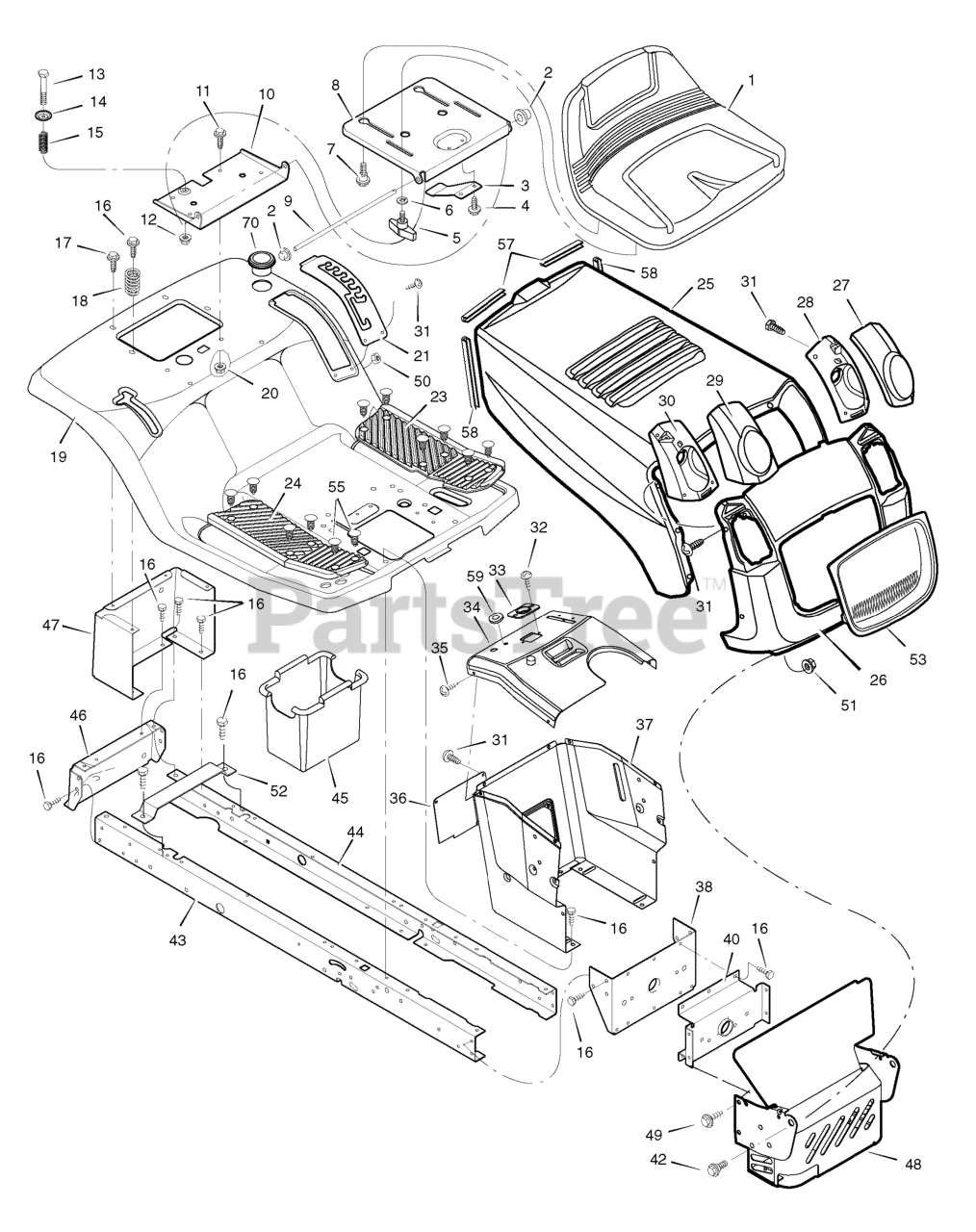

Chassis & Hood Parts Diagram

  • Title
1

Murray 690566MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push 0n
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E701MA

Support, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E245MA

Bracket, Pivot
(Superseded to 1001648E701MA)

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$3.99

$

Usually ships in 2-12 days

0

15

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

$267.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

21

Murray 094829E701MA

Plate, Index Detent

$50.99

$

Usually ships in 2-12 days

0

23

Murray 1001582MA

Mat, Left

$24.99

$

Usually ships in 2-12 days

0

24

Murray 1001578MA

Mat, Right

$23.99

$

Usually ships in 2-12 days

0

$193.99

$

Usually ships in 2-12 days

0

26

Murray 1001531E717MA

Grille
(Superseded to 1001531E701MA)

$113.99

$

In Stock, only 1 left!

0

27

Murray 1001546MA

Lens, Left

$13.99

$

In Stock, only 1 left!

0

28

Murray 1001544MA

Housing, Left Headlamp
(Superseded to 1001548MA)

$28.99

$

Usually ships in 2-12 days

0

29

Murray 1001545MA

Lens, Right

$13.99

$

In Stock, only 2 left!

0

30

Murray 1001543MA

Housing, Right Headlamp
(Superseded to 1001547MA)

$

$

Not available

31

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491MA

Bearing, Steering

$5.49

$

Usually ships in 2-12 days

0

34

Murray 1001584E717MA

Dash
(Superseded to 7300774ZMA)

$71.99

$

Usually ships in 2-12 days

0

35

$4.49

$

In Stock, only 2 left!

0

36

Murray 093007E701MA

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

37

Murray 095318E717MA

Support, Dash
(Superseded to 7300872TMA)

$142.99

$

Usually ships in 2-12 days

0

38

Murray 1001270E701MA

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

40

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

42

Murray 009X58MA

Bolt
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 1001928E701MA

Frame, Right

$104.99

$

Usually ships in 2-12 days

0

44

Murray 1001927E701MA

Frame, Left
(Superseded to 1001269E701MA)

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E701MA

Plate, Hitch

$

$

Not available

47

Murray 690434E717MA

Panel, Rear

$85.99

$

Usually ships in 2-12 days

0

48

Murray 1001619E701MA

SHIELD, Heat

$245.99

$

Usually ships in 2-12 days

0

49

$4.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

51

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

52

Murray 690482E701MA

Support, Battery

$

$

Not available

53

Murray 1001541MA

Insert, Grille

$

$

Not available

55

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

57

Murray 1001652MA

Trim, Hood (3.75")
(Superseded to 7102404YP)

$6.99

$

Usually ships in 2-12 days

0

58

Murray 1001653MA

Trim, Hood (6.5")

$10.99

$

Usually ships in 2-12 days

0

59

Murray 1001755MA

Grommet, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

70

Murray 1001542MA

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray 1002050MA

PARTS BAG, Assembly

$20.99

$

Usually ships in 2-12 days

0

--

Murray 1740476

Manual, Parts List

$

$

Currently unavailable

--

Murray 1740475

Instruction Book

$

$

Currently unavailable
