405 X - Husqvarna Automower Robotic Lawn Mower BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

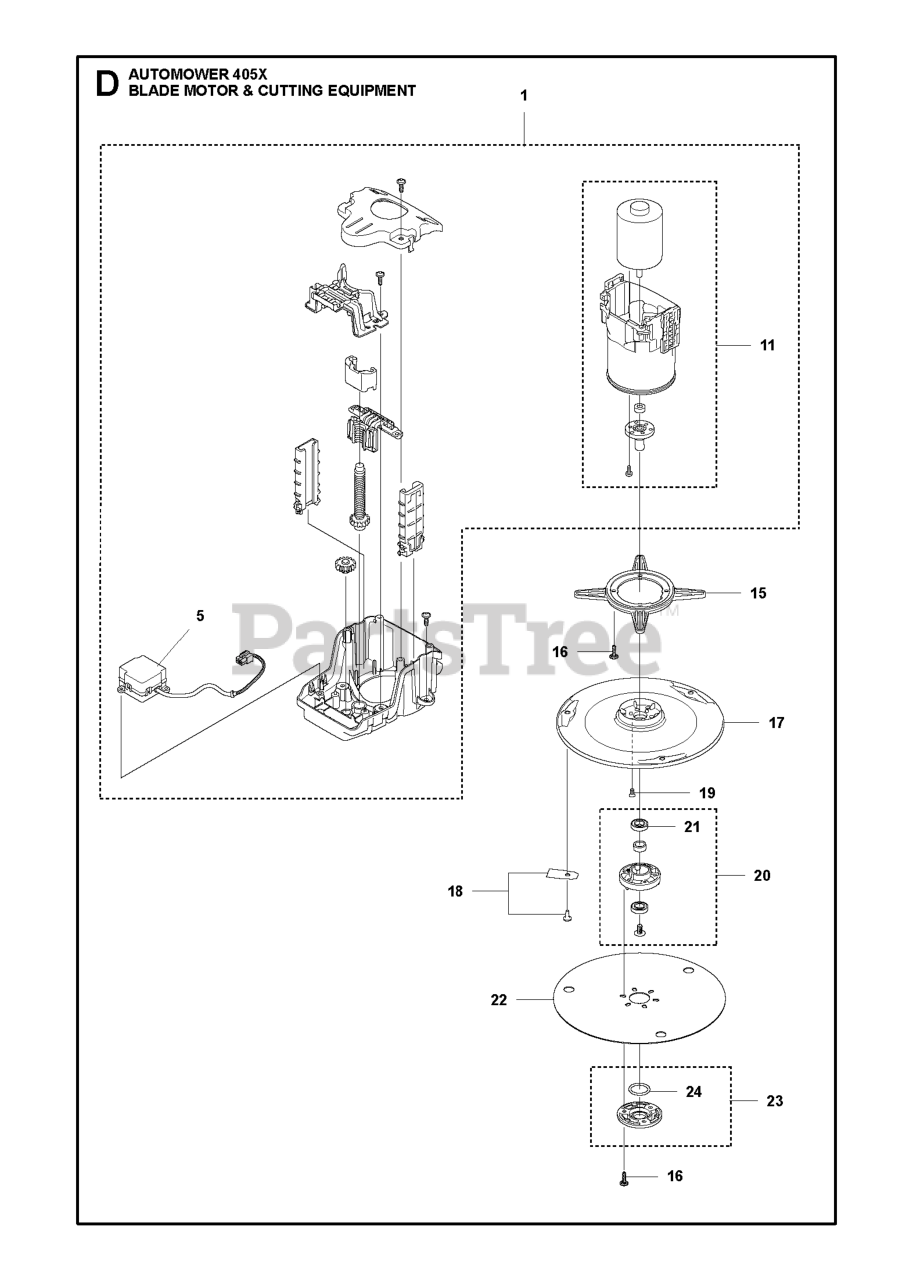

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

24

Husqvarna 585297501

O-RING 20X2,5 MM

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$319.99

$

Usually ships in 3-10 days

0

17

Husqvarna 597422201

GUARDS
(Superseded to 531177401)

$28.99

$

Usually ships in 3-10 days

0

11

Husqvarna 599428301

MOTOR ASSY CUTTING SYSTEM

$113.99

$

In Stock, only 1 left!

0

21

Husqvarna 535075703

BALL BEARING 2 RS,TIGHT CLEAR

$6.99

$

In Stock, only 1 left!

0

5

Husqvarna 592735802

NEEDS DESCRIPTION

Note: HAM

$

$

Currently unavailable

1

Husqvarna 599521301

CUTTING SYSTEM ECS TYPE 1

Note: Cutting module assy

$

$

Not available

20

Husqvarna 588421702

BEARING HOUSING ASSY

$26.99

$

In Stock, only 3 left!

0

19

Husqvarna 590508701

SCREW HEXAGON SOCKET BUTTON HE

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

22

Husqvarna 598794801

NEEDS DESCRIPTION

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 599318201

FRAME MOTOR HOUSING

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 587449601

COVER KIT BEARING

$11.99

$

Usually ships in 3-10 days

0

18

Husqvarna 595084401

NEEDS DESCRIPTION
(Superseded to 595084411)

Note: Endurance 6 pcs, Blister

$28.99

$

Usually ships in 3-10 days

0
