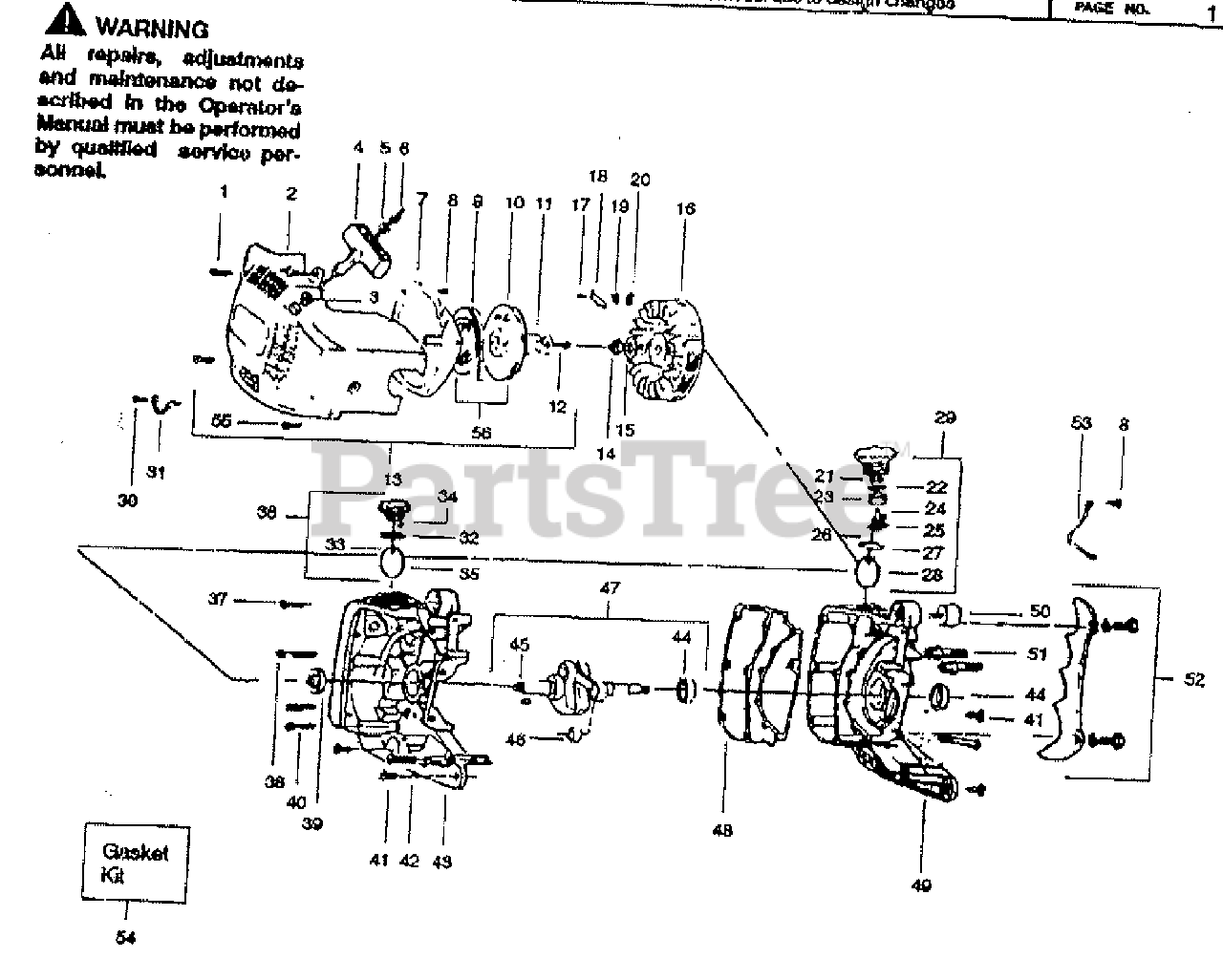

405 Plus - Poulan Pro Chainsaw Crankcase Parts Diagram

Chainsaw

Crankcase Parts Diagram

  • Title

1

Poulan 507433157

Screw

$

$

Not available

2

Poulan 5074765231

Starter Cover & Shell Assy.

$

$

Not available

3

Poulan 507430716

Eyelet

$

$

Not available

4

Poulan 5074314418

Starter Handle

$

$

Not available

5

Poulan 507431640

Washer

$

$

Not available

6

Poulan 507476562

Starter Cord

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 507433584

Baffle Plate

$9.99

$

Usually ships in 3-10 days

0

8

Poulan 507429266

Screw

$

$

Not available

9

Poulan 507476600

Rewind Spring
(Superseded to 545008004)

$

$

Not available

10

Poulan 507476607

Starter Pulley

$32.99

$

Usually ships in 3-10 days

0

11

Poulan 507433574

Washer

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 503211801

Screw

$

$

Not available

13

Poulan 5074766081

Starter Assy.

Note: (Incl.1-12)

$

$

Not available

14

Poulan 507430800

Nut

$

$

Not available

15

Poulan 507429851

Washer

$

$

Not available

16

Poulan 507433294

Flywheel

$54.99

$

Usually ships in 3-10 days

0

17

Poulan 507430877

Pivot Pawl

$

$

Not available

18

Poulan 507430876

Pawl

$

$

Not available

19

Poulan 507431416

Spring

$3.99

$

In Stock, only 1 left!

0

20

Poulan 507430878

Washer

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 507427993

Disc

$

$

Not available

22

Poulan 507427273

Gasket

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 507431003

Spacer

$

$

Not available

24

Poulan 530026383

Umbrella Valve

$

$

Not available

25

Poulan 507427278

Cover Gas Cap

$

$

Not available

26

Poulan 507431370

Bead Chain

$

$

Not available

27

Poulan 507429946

"O" Ring

$

$

Not available

28

Poulan 507431368

Retainer

$

$

Not available

29

Poulan 530047186

Gas Cap Ass'y.

Note: (Incl. 21-28)

$

$

Not available

30

Poulan 507433611

Screw

$

$

Not available

31

Poulan 507431022

Retainer Wire

$

$

Not available

32

Poulan 507433143

"O" Ring

$

$

Not available

33

Poulan 507427690

Bead Chain

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 507428335

Screw

$2.49

$

Usually ships in 3-10 days

0

35

Poulan 507431369

Retainer

$

$

Not available

36

Poulan 507475168

Oil Cap Assy.

Note: (Incl.32-35)

$

$

Not available

37

Poulan 507431690

Screw

$

$

Not available

38

Poulan 507431658

Screw

$3.99

$

In Stock, only 1 left!

0

39

Poulan 507428746

Seal

$

$

Not available

40

Poulan 507431650

Screw

$1.49

$

Usually ships in 3-10 days

0

41

Poulan 507432634

Screw

$

$

Not available

42

Poulan 507431642

Screw

$2.49

$

Usually ships in 3-10 days

0

43

Poulan 5074334811

Crankcase Half

$

$

Not available

44

Poulan 507433355

Main Bearing

$

$

Not available

45

Poulan 507432210

Flywheel Key

$

$

Not available

46

Poulan 507431408

Bearing

$18.99

$

Usually ships in 3-10 days

0

47

Poulan 507476196

Crankshaft Ass'y.

Note: (Incl. 44, 45, & 46)

$

$

Not available

48

Poulan 507430190

Gasket

$

$

Not available

49

Poulan 530049490

Crankcase Ass'y Drive Side

$

$

Not available

50

Poulan 507430197

Shock Absorber

$

$

Not available

51

Poulan 507433228

Bear Mtg. Studs

$

$

Not available

52

Poulan 507473645

Pivot Grip Kit

$

$

Not available

53

Poulan 507430990

Ground Wire

$2.49

$

Usually ships in 3-10 days

0

54

Poulan 507476509

Gasket Set

$

$

Not available

55

Poulan 507433158

Screw

$3.99

$

Usually ships in 3-10 days

0

56

Poulan 507476615

Pulley & Spring Kit

$40.99

$

Usually ships in 3-10 days

0

56

Poulan 507433712

Side Decal

Note: Not Shown

$

$

Not available
