405 (194-405-100) - Cub Cadet 3-Point Hitch (1984) 3 Point Hitch Parts Diagram

3-Point Hitch

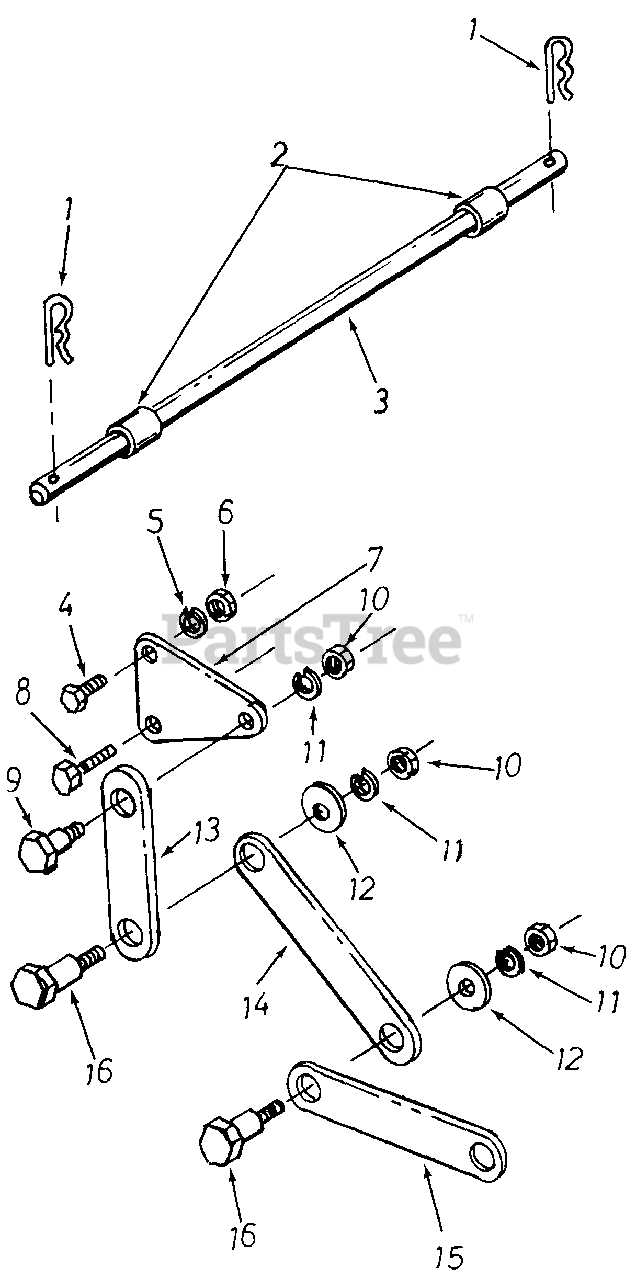

3 Point Hitch Parts Diagram

  • Title

1

Cub Cadet 714-0147

Hair Pin Cotter

$4.99

$

In Stock, Qty 6

0

2

Cub Cadet 750-0449

Spacer

$

$

Not available

3

Cub Cadet 738-3040

Tiller Mounting Shaft

$

$

Not available

4

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 703-0822

Tiller Mounting Brkt.

$

$

Not available

8

Cub Cadet 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 738-0322

Shoulder Bolt .625" Dia.
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

10

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

11

Cub Cadet 736-0169

L-Wash. .3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0133

Fl.-Wash.

$5.49

$

In Stock, Qty 7

0

13

Cub Cadet 703-0820

Short Link
(Superseded to 703-0820-0637)

Variations

Cub Cadet 703-0820-0637

LINK-SHORT 1.5 X 5 - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 703-0821

Long Link

Variations

Cub Cadet 703-0821-0637

LINK-LONG 1.5 x 8. - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 703-0820

Short Link
(Superseded to 703-0820-0637)

Variations

Cub Cadet 703-0820-0637

LINK-SHORT 1.5 X 5 - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 738-0149

Shoulder Bolt .625" Dia.

$

$

Not available
