404AP (9594-0) - Generac Air Compressor Air Compressor - No. 89509 Parts Diagram

Air Compressor

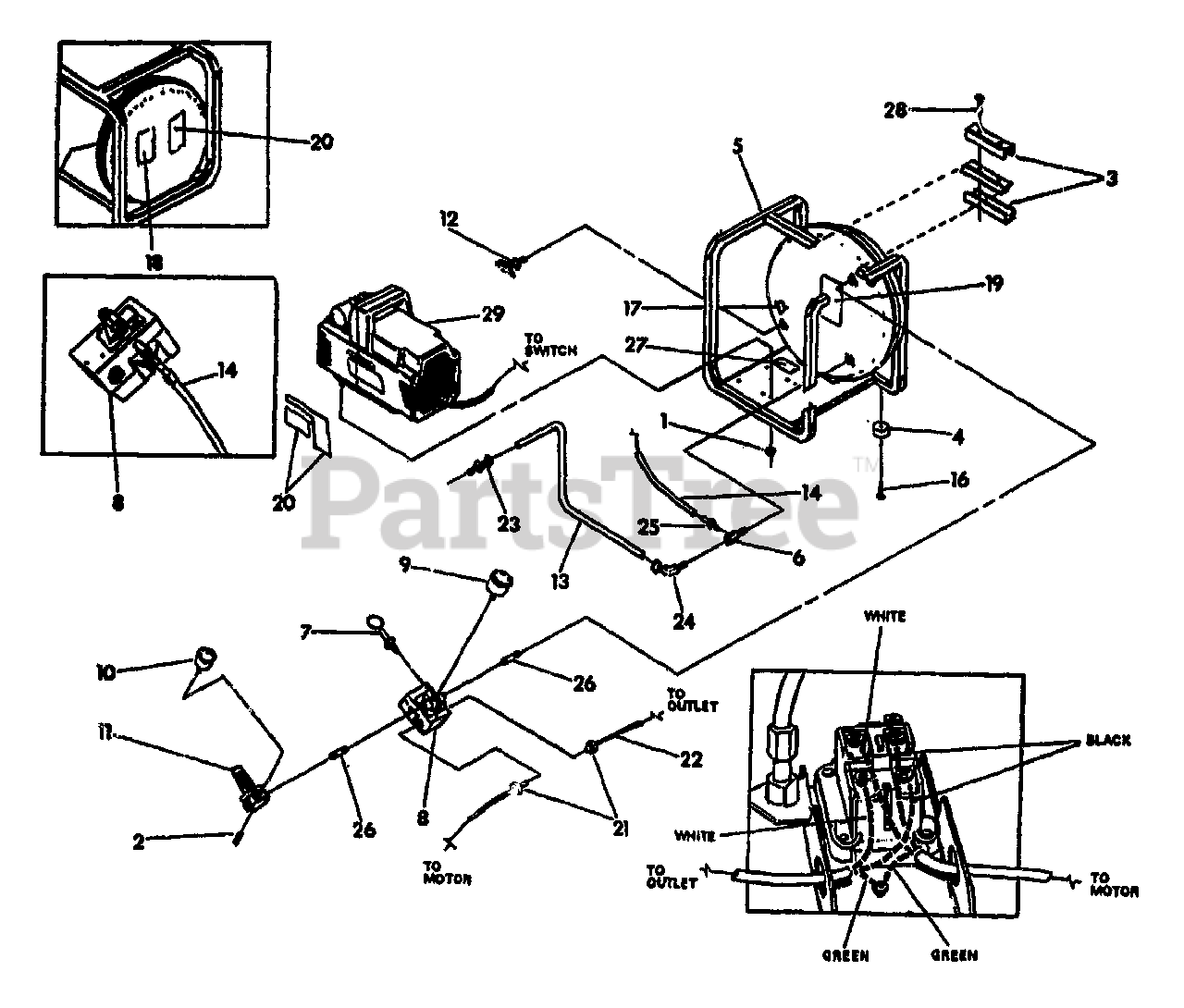

Air Compressor - No. 89509 Parts Diagram

  • Title

1

Briggs & Stratton 52857

M6-1.0 Locking Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 61012

1/8" Socket Pipe Plug

$

$

Not available

3

Briggs & Stratton 66450

Handle Cover

$

$

Not available

4

Briggs & Stratton 87841

Vibration Mount Wheel Kit
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 88086

Air Compressor Lube Cradle

$

$

Currently unavailable

6

Briggs & Stratton 88088

Valve Check Air Compressor

$

$

Currently unavailable

7

Briggs & Stratton 88089

Valve Relief, 125 psi

$

$

Not available

8

Briggs & Stratton 88090

Pressure Switch, 125V, 16A

$

$

Currently unavailable

9

Briggs & Stratton 88091

Pressure Gauge (1/4" x 2")

$

$

Not available

10

Briggs & Stratton 88092

Pressure Gauge (1/8" X 1.5")

$

$

Currently unavailable

11

Briggs & Stratton 88093

Air Pressure Regulator

$

$

Currently unavailable

12

Briggs & Stratton 88094

Air Tank Valve Drain

$

$

Not available

13

Briggs & Stratton 88206

Air Tube, pressure sensing

$

$

Currently unavailable

14

Briggs & Stratton 88280

Air-Compressor-to-Tank Tube

$

$

Currently unavailable

15

Briggs & Stratton 88289

1/4"-20 Self-drilling Capscrew

$

$

Not available

16

Briggs & Stratton 88817

Decal - Drain Air Compressor

$

$

Currently unavailable

17

Briggs & Stratton 88994

Decal - Warning

$

$

Currently unavailable

18

Briggs & Stratton 89021

Decal - Maintenance

$

$

Currently unavailable

19

Briggs & Stratton 89022

Decal - Warning
(Superseded to 89022GS)

$7.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 89270

Decal - 1.5 HP Oilless

$

$

Currently unavailable

21

Briggs & Stratton 89506

7/8" I.D. Strain Relief

$

$

Currently unavailable

22

Briggs & Stratton 89508

14GA, 3W Power Cord
(Superseded to 89508GS)

$28.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 89514

Compressor Fitting 37TX37P

$

$

Currently unavailable

24

Briggs & Stratton 89518

3/8" I.D. Compressor Connector

$

$

Currently unavailable

25

Briggs & Stratton 87765

1/4" x 1/8" I.D. Compressor Fitting

$

$

Currently unavailable

26

Briggs & Stratton 91063

Brass LPN, 1/4" x 1" x 1/2"

$

$

Currently unavailable

27

Briggs & Stratton 91064

Air Compressor Data Plate
(Superseded to 7091064YP)

$3.99

$

In Stock, only 3 left!

0

28

Briggs & Stratton 68831

4mm Aluminum Rivet

$

$

Currently unavailable

29

Briggs & Stratton 88065

Oilless Electric Air Compressor

$

$

Currently unavailable
