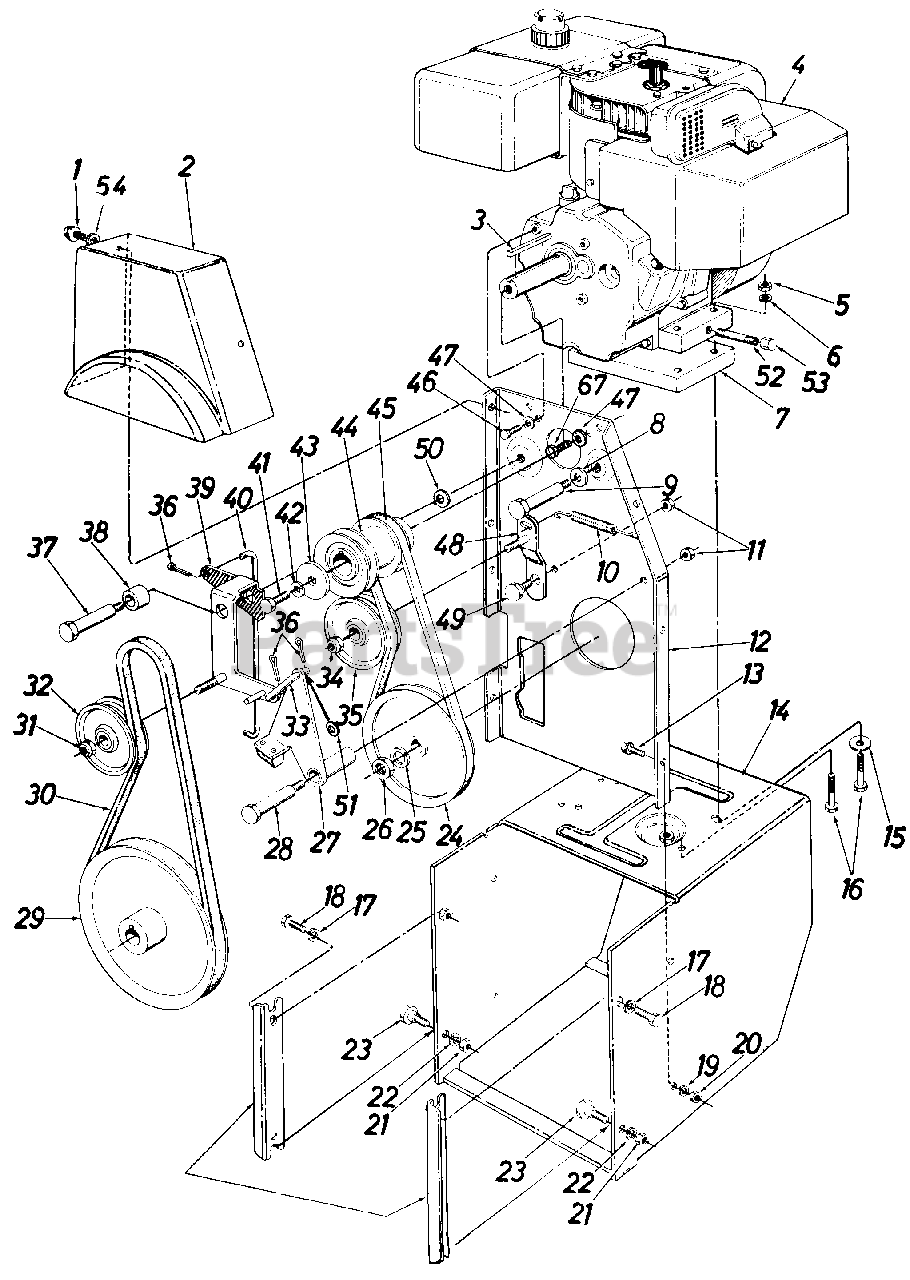

4048 (812-1329) - Snow Pro Snow Thrower (1987) (J.C. Penney) Snow Throwers Parts Diagram

Snow Thrower

Snow Throwers Parts Diagram

  • Title

1

MTD 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

2

MTD 731-0321

Belt Cover
(Superseded to 931-2531)

$51.99

$

In Stock, only 1 left!

0

3

MTD 714-0118

Sq. Key 1/4" x 1.50" Lg.

$6.99

$

In Stock, only 4 left!

0

4

Engine

$

$

Not available

5

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

MTD 717-0522

Engine Spacer Ass'y.

$

$

Not available

8

MTD 736-0105

Bell-Wash. .40 I.D. x .88 0. D

$4.49

$

In Stock, Qty 20+

0

9

MTD 738-0215

Shld. Scr. .498" Dia. x 3.00" Lg.
(Superseded to 738-0215A)

Note: (840, 841, 850)

$9.49

$

Usually ships in 3-6 days

0

MTD 711-0769

Stud 3/8-16 x 3.37" Lg.

Note: (960)

$

$

Not available

10

MTD 732-0303

Ext Spring .38 O.D. x 3.18" Lg.
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

11

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

12

MTD 05491

Engine Brkt. Ass'y.

$

$

Not available

13

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

14

MTD 784-5129

Frame Ass'y.

$

$

Currently unavailable

15

MTD 736-0264

Fl-Wash. .345 I.D. x .75 O.D. x .060

$6.99

$

In Stock, only 1 left!

0

16

MTD 710-0378

Hex Scr. 5/16-18 x 2.50" Lg.

$4.99

$

In Stock, only 4 left!

0

17

MTD 736-0217

L-Wash. 3/8" Scr. H.D.

$4.49

$

In Stock, Qty 8

0

18

MTD 710-0555

Pilot Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

19

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

22

MTD 736-0217

L-Wash. 3/8" Scr. H.D.

$4.49

$

In Stock, Qty 8

0

23

MTD 738-0143

Shld. Scr. .498" Dia. x .340" Lg.

$4.49

$

In Stock, Qty 20+

0

24

MTD 756-0344

V-Puiley .628 I.D. x 7.50 O.D.

$81.99

$

Usually ships in 3-6 days

0

25

MTD 736-0158

L-Wash. for 5/8" Scr.

$4.49

$

In Stock, Qty 11

0

26

MTD 712-0221

Hex Ins. Jam L-Nut 5/8-18 Thd.

$

$

Not available

27

MTD 05510

Brake Brkt. Ass'y.
(Superseded to 05510A)

$

$

Not available

28

MTD 738-0129

Shld. Scr. .498" Dia. x 2.00" Lg.

$11.99

$

In Stock, only 1 left!

0

29

MTD 756-0243

V-Pulley .875 I.D. x 10.12 O.D.

$94.99

$

Usually ships in 3-6 days

0

30

MTD 754-0194

"V"-Belt
(Superseded to 954-0194)

$29.99

$

In Stock, Qty 5

0

31

MTD 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

32

MTD 756-0240

Fl-Idler w/Flanges 3.0 O.D.

$

$

Not available

33

MTD 05531

Brake Linkage Ass'y.

$

$

Not available

34

MTD 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

35

MTD 756-0240

3.0" O.D. Fl-Idler w/Flanges

Note: (840, 841, 850)

$

$

Not available

MTD 756-0225

Flat Idler Pulley

Note: (960)

$

$

Not available

36

MTD 714-0104

Int. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

37

MTD 738-0282

Shld. Scr. .625 Dia. x 2.750" Lg.

$

$

Not available

38

MTD 750-0227

Spacer .75 O.D. x 1.00" Lg.

$

$

Currently unavailable

39

MTD 05493

Blower Idler Brkt. Ass'y.

Variations

MTD 05493-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.

$

$

Currently unavailable

41

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

42

MTD 736-0217

L-Wash. 3/8" Scr. H.D.

$4.49

$

In Stock, Qty 8

0

43

MTD 07386

Fl-Wash.

$

$

Not available

44

MTD 756-0241

Engine Pulley-Double Groove
(Superseded to 756-0241B)

Note: (840, 841, 850)

$99.99

$

In Stock, Qty 5

0

MTD 756-0429

Engine Pulley

Note: (960)

$

$

Currently unavailable

45

MTD 754-0131

"V"-Belt
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 10

0

46

MTD 710-0237

Hex Scr. 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

47

MTD 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

48

MTD 05495

Drive Idler Brkt. Ass'y.

$

$

Currently unavailable

49

MTD 738-0281

Shld. Scr.-.625" Dia. x . 170" Lg.

$10.99

$

In Stock, Qty 7

0

50

MTD 736-0219

Bell-Wash. .40 I.D. x 1.12 O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

51

MTD 736-0264

Fl-Wash. .34 I.D. x .750 O.D. x .05

$6.99

$

In Stock, only 1 left!

0

52

MTD 737-0130

Pipe Nipple-1/2" Pipe Thd. x 3.00" Lg.
(Superseded to 737-0298)

$12.99

$

Usually ships in 3-6 days

0

53

MTD 737-0132

Hex Scr. 1/4-18 Pipe Thd.

$10.99

$

Usually ships in 3-6 days

0

54

MTD 736-0264

Fl-Wash. .340 I.D. x .62 O.D. x .62

$6.99

$

In Stock, only 1 left!

0

67

UNKNOWN

$

$

Not available

MTD 725-0954

Ignition Key
(Superseded to TC-35062)

Note: (Not Shown)

$3.99

$

Usually ships in 3-12 days

0
