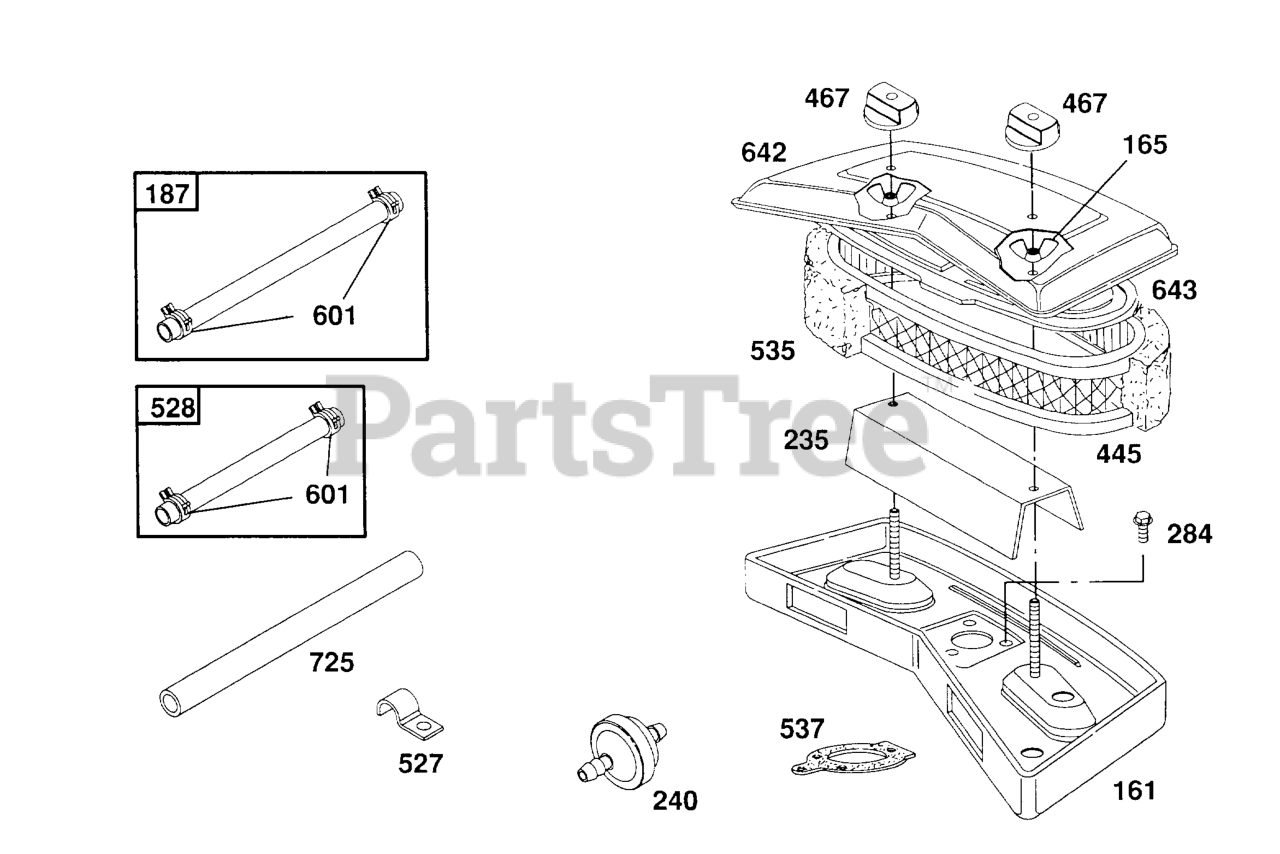

404707-1207-01 - Briggs & Stratton Vertical Engine Air Cleaner Group,Fuel Hoses Parts Diagram

Vertical Engine

Air Cleaner Group,Fuel Hoses Parts Diagram

  • Title
161

Briggs & Stratton 398826

Body-Air Cleaner
(Superseded to 495617)

$58.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 94289

Nut-Wing
(Superseded to 691331)

$5.99

$

In Stock, only 3 left!

0

187

Briggs & Stratton 299146

Line-Fuel (28" Cut To Required Length)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 393815

Hose-Vacuum (11" Cut To Required Length)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

235

Briggs & Stratton 224039

Shield-Fuel Spray
(Superseded to 691206)

$9.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 394358

Filter, Fuel (Used With Fuel Pump)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

284

Briggs & Stratton 94166

Screw-Hex. Hd.
(Superseded to 691100)

$3.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 394019

Filter-Air Cleaner Cartridge
(Superseded to 394019S)

$21.99

$

In Stock, Qty 6

0

467

Briggs & Stratton 493903

Knob-Air Cleaner
(Superseded to 691668)

$5.49

$

In Stock, only 3 left!

0

527

Briggs & Stratton 223167

Support-Breather Tube
(Superseded to 690423)

$4.99

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 393815

Hose-Vacuum (11" Cut To Required Length)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 271271

Filter-Air
(Superseded to 272490S)

$5.49

$

In Stock, Qty 15

0

537

Briggs & Stratton 271411

Gasket-Air Cleaner
(Superseded to 690273)

Note: Included in Gasket Set-Part No. 491856. Included in Carburetor Kit-Part No. 491539

$5.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

642

Briggs & Stratton 223579

Cover-Air Cleaner
(Superseded to 224436)

$67.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 223714

Retainer-Air Filter

$14.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 280866

Shield-Heat (20")

$

$

Not available
