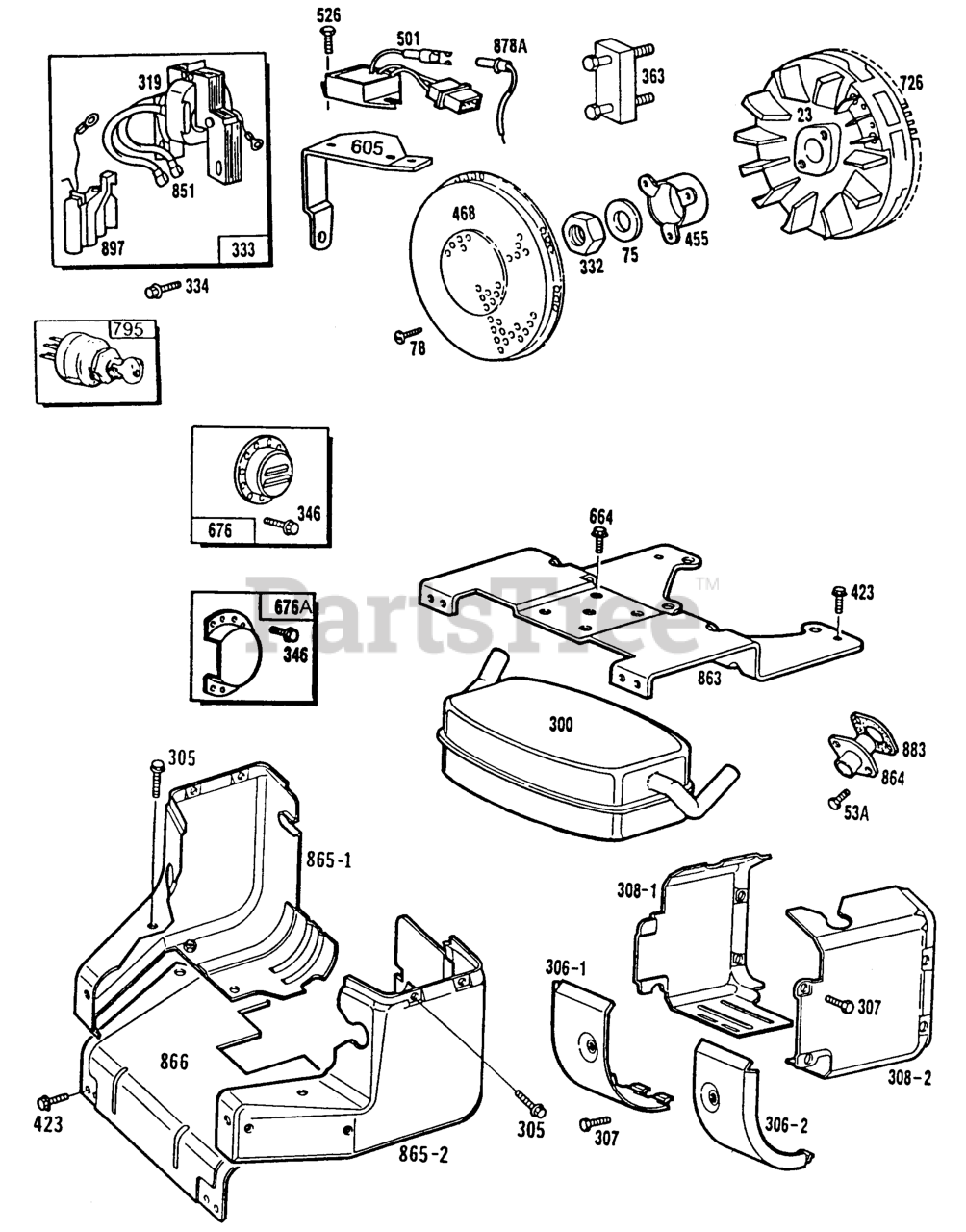

404707-0119-01 - Briggs & Stratton Vertical Engine BlowerHsg,Mufflers,Shielding Parts Diagram

Vertical Engine

BlowerHsg,Mufflers,Shielding Parts Diagram

  • Title

23

Briggs & Stratton 393480

Flywheel (For 16A Charging)

$294.99

$

Usually ships in 2-12 days

0

53A

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

75

Briggs & Stratton 222511

Washer-Spring
(Superseded to 691056)

$9.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 93805

Screw-Sem
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 394164

Muffler-Exhaust
(Superseded to 491319S)

$152.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306-1

Briggs & Stratton 222846

Shield-Cylinder
(Superseded to 690414)

$23.99

$

Usually ships in 2-12 days

0

306-2

Briggs & Stratton 222847

Shield , Cylinder
(Superseded to 690435)

Note: Use on Engines with 3-5/8" or Shorter Starter Motor

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93163

Screw, Sem Hex Head
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308-1

Briggs & Stratton 222848

Cover-Air Guide
(Superseded to 691196)

$166.99

$

Usually ships in 2-12 days

0

308-2

Briggs & Stratton 222849

Cover-Air Guide
(Superseded to 691197)

$75.99

$

Usually ships in 2-12 days

0

319

Briggs & Stratton 394988

Armature-Magneto
(Superseded to 590781)

$75.99

$

In Stock, Qty 10

0

332

Briggs & Stratton 230674

Nut-Hex.
(Superseded to 691059)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 394891

Armature-Mag
(Superseded to 590781)

$75.99

$

In Stock, Qty 10

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 93876

Screw-Sem
(Superseded to 690312)

$3.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 222674

Cup-Screen Mounting

$31.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 222673

Screen-Flush Rotating
(Superseded to 692527)

$15.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 394890

Regulator
(Superseded to 845907)

Note: (10, 13, or 16 Amp, Depending on Size of Flywheel Magnets)

$61.99

$

In Stock, Qty 20+

0

526

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

605

Briggs & Stratton 222959

Bracket-Support
(Superseded to 690416)

$18.99

$

Usually ships in 2-12 days

0

664

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

676A

Briggs & Stratton 393761

Deflector-Muff (Side Outlet)
(Superseded to 795036)

$8.49

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 397630

Deflector-Muff (Louvered Outlet)
(Superseded to 795038)

$15.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 391362

Gear-Ring (Including Mtg. Parts)

$

$

Not available

795

Briggs & Stratton 490066

Switch-Ignition
(Superseded to 692318)

$29.99

$

In Stock, Qty 18

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

863

Briggs & Stratton 222865

Bracket-Muffler
(Superseded to 690444)

$54.99

$

In Stock, only 1 left!

0

864

Briggs & Stratton 393483

Liner-Exhaust Port
(Superseded to 691970)

$

$

Not available

865-1

Briggs & Stratton 393288

Cover Assembly-Air Guide (Cyl. #1)
(Superseded to 690831)

$67.99

$

Usually ships in 2-12 days

0

865-2

Briggs & Stratton 393289

Cover Assembly-Guide (Cyl. #2)
(Superseded to 690829)

$

$

Not available

866

Briggs & Stratton 393285

Top Plate Assembly
(Superseded to 690830)

$38.99

$

In Stock, only 1 left!

0

878A

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 271174

Gasket-Exhaust
(Superseded to 692282)

$6.99

$

In Stock, Qty 10

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available
