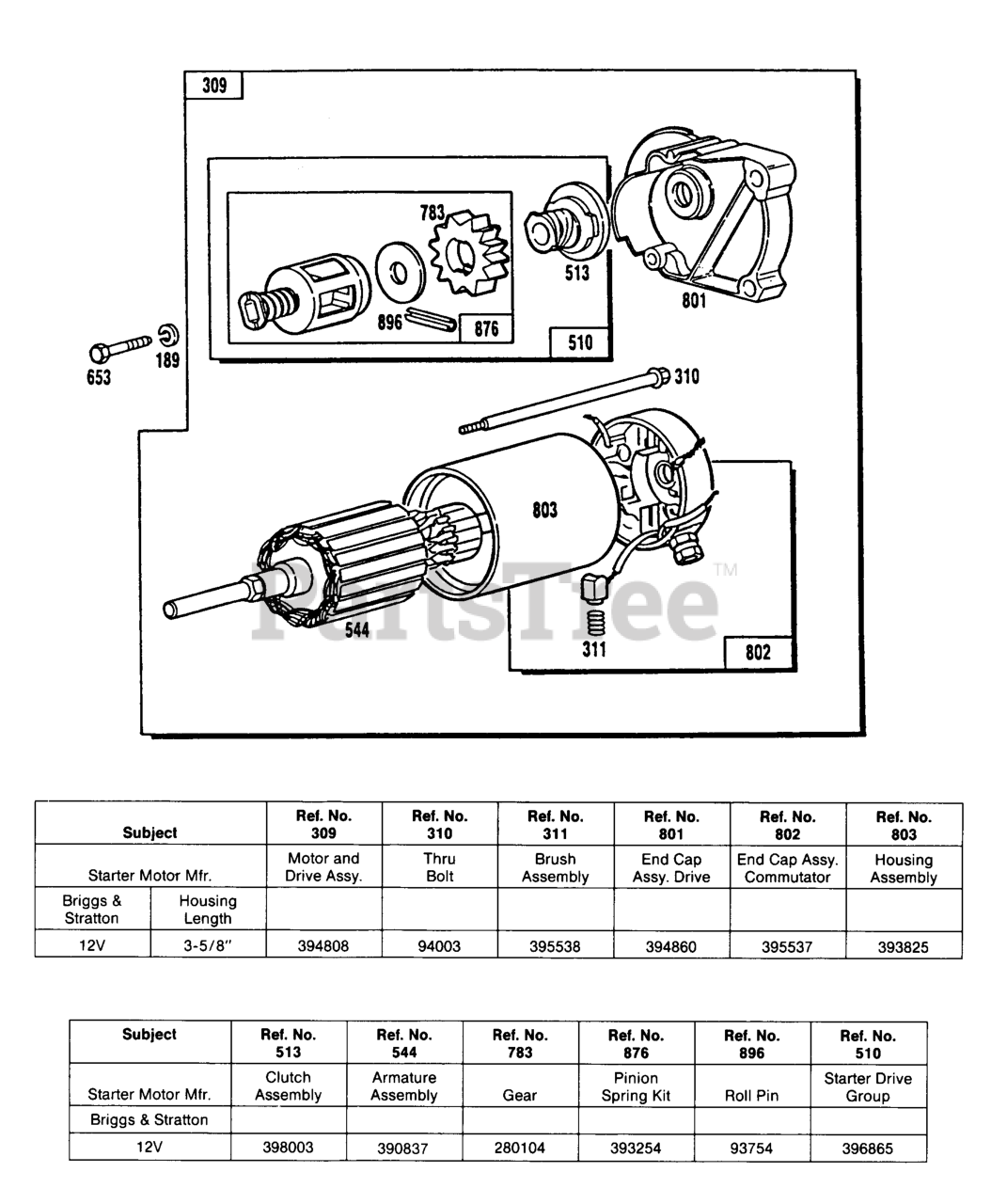

404707-0115-01 - Briggs & Stratton Vertical Engine Electric Starter and Chart Parts Diagram

Vertical Engine

Electric Starter and Chart Parts Diagram

  • Title

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 394808

Motor/Drive Assy (For 3-5/8" Housing Length)
(Superseded to 497596)

$122.99

$

In Stock, only 1 left!

0

310

Briggs & Stratton 94003

Screw, Hex Flange H (For 3-5/8" Housing Length)
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 395538

Brush Set

Note: (For 3-5/8" or 4-3/8" Housing Length)

$24.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 396865

Drive, Starter Grp (For 3-21/32" Housing Length)
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

513

Briggs & Stratton 398003

Clutch, Starter Ass
(Superseded to 692024)

$21.99

$

In Stock, only 3 left!

0

544

Briggs & Stratton 390837

Armature-Str (For 3-5/8" Housing Length)

$159.99

$

In Stock, only 1 left!

0

653

Briggs & Stratton 91162

Screw, Hex Head Cap (5/16-18 X 1-1/2")
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

783

Briggs & Stratton 280104

Pinion, Starter B&s Or United Tech. 12V
(Superseded to 695708)

$6.99

$

In Stock, only 4 left!

0

801

Briggs & Stratton 394860

Bracket, Starter As
(Superseded to 691967)

Note: (For 3-5/8" or 4-1/2" Housing Length)

$74.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 395537

Cap-End (For 3-5/8" Housing Length)

$54.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 393825

Shell/Magnet Assy (For 3-5/8" Housing Length)
(Superseded to 398159)

$80.99

$

Usually ships in 2-12 days

0

876

Briggs & Stratton 393254

Spring Kit Briggs & Stratton 12V
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0
