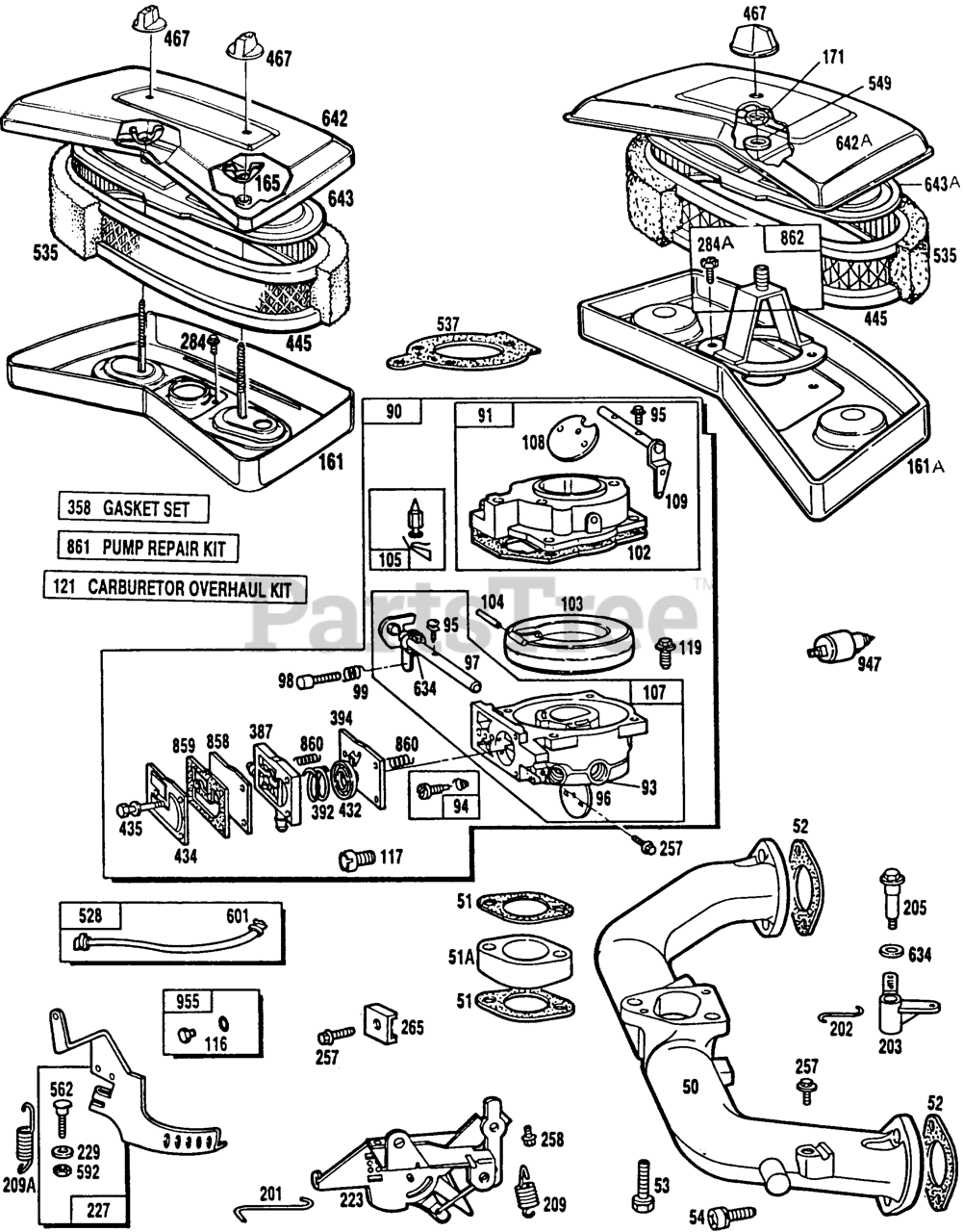

404707-0102-01 - Briggs & Stratton Vertical Engine Carburetor Assemblies, A/C Parts Diagram

Vertical Engine

Carburetor Assemblies, A/C Parts Diagram

  • Title

50

Briggs & Stratton 212965

Manifold Assy.-Intake

$164.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 399230

Manifold Assy.-Intake

$186.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 280319

Spacer-Carburetor
(Superseded to 691928)

$

$

Not available

51

Briggs & Stratton 271412

Gasket-Intake
(Superseded to 692278)

Note: Included in Carburetor Overhaul Kit-Part No. 394502. Included in Gasket Set-Part No. 394501

$5.49

$

In Stock, Qty 9

0

52

Briggs & Stratton 270884

Gasket-Intake Manifold Mtg.
(Superseded to 692219)

$5.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 93970

Screw, Sem Hex Head
(Superseded to 690321)

$6.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, only 1 left!

0

90

Briggs & Stratton 399229

Carburetor Assy (Remote Choke)
(Superseded to 693480)

$289.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 399327

Body Assy.-Upper Carburetor

$

$

Not available

93

Briggs & Stratton 231209

Bushing-Throttle Shaft
(Superseded to 690513)

$8.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 223370

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 392672

Shaft-Throttle
(Superseded to 690629)

$38.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 271609

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$8.99

$

Usually ships in 2-12 days

0

103

Briggs & Stratton 298514

Float-Carburetor
(Superseded to 692265)

$11.99

$

In Stock, Qty 8

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394681

Kit-Needle/seat (Gravity Feed)

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$7.99

$

In Stock, only 1 left!

0

107

Briggs & Stratton 399625

Body-Lower Carburetor

$83.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 223534

Valve-Choke

$7.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 392673

Shaft-Choke
(Superseded to 691957)

$45.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280474

Seal-O
(Superseded to 691319)

$5.49

$

In Stock, only 1 left!

0

117

Briggs & Stratton 231337

Jet-Main (Fixed) (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 231339

Seat, Orifice (Fixed)
(Superseded to 690518)

$17.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 94152

Screw, Sem Hex Head (10-32 X 3/4")
(Superseded to 691090)

$3.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 394502

Carburetor Overhaul Kit
(Superseded to 694056)

$31.99

$

Usually ships in 2-12 days

0

161A

Briggs & Stratton 222861

Body-Air Cleaner

$52.99

$

Usually ships in 2-12 days

0

161

Briggs & Stratton 398826

Body-Air Cleaner
(Superseded to 495617)

$58.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 94289

Nut-Wing
(Superseded to 691331)

$5.99

$

In Stock, only 3 left!

0

171

Briggs & Stratton 93715

Nut, Hex Jam (Starter Terminal)
(Superseded to 691626)

$3.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 261586

Link-Governor
(Superseded to 493230)

$28.99

$

In Stock, Qty 6

0

202

Briggs & Stratton 261587

Link-Throttle
(Superseded to 493230)

$28.99

$

In Stock, Qty 6

0

203

Briggs & Stratton 280320

Crank-Bell
(Superseded to 493230)

$28.99

$

In Stock, Qty 6

0

205

Briggs & Stratton 93971

Screw-Shoulder
(Superseded to 690322)

$

$

Not available

209A

Briggs & Stratton 261563

Spring-Governor Idler
(Superseded to 691807)

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 261720

Spring-Governor

$25.99

$

Usually ships in 2-12 days

0

223

Briggs & Stratton 394538

Plate Assy-Lever & Governor Control

$

$

Not available

227

Briggs & Stratton 394470

Lever Assy.-Governor

$18.99

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 222289

Washer, Steel Zinc
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

257

Briggs & Stratton 93897

Screw, Sem Hex Head
(Superseded to 690316)

$3.99

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

284A

Briggs & Stratton 93893

Screw-Slotted Hex.
(Superseded to 691100)

$3.99

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94166

Screw-Hex. Hd.
(Superseded to 691100)

$3.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 394501

Gasket Set
(Superseded to 495868)

$75.99

$

In Stock, only 1 left!

0

387

Briggs & Stratton 280197

Body-Pump
(Superseded to 691896)

$15.99

$

In Stock, Qty 6

0

392

Briggs & Stratton 261395

Spring-Pump Diaphragm
(Superseded to 691801)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$4.99

$

In Stock, Qty 9

0

394

Briggs & Stratton 270988

Diaphragm-Carburetor
(Superseded to 272638S)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$6.99

$

In Stock, only 4 left!

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$4.99

$

In Stock, only 3 left!

0

434

Briggs & Stratton 222615

Cover-Diaphragm

Note: Used Before Code Date 85121600

$2.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 223688

Cover-Pump
(Superseded to 690434)

Note: Used After Code Date 85121500

$

$

Not available

435

Briggs & Stratton 93829

Screw-Slotted Hex.
(Superseded to 691085)

$4.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 394019

Filter-Air Cleaner Cartridge
(Superseded to 394019S)

$21.99

$

In Stock, Qty 6

0

467

Briggs & Stratton 212706

Knob-Choke Rod
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

528

Briggs & Stratton 393815

Hose-Vacuum (11" Cut To Required Length)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 271271

Filter-Air
(Superseded to 272490S)

$5.49

$

In Stock, Qty 20+

0

537

Briggs & Stratton 271411

Gasket-Air Cleaner
(Superseded to 690273)

Note: Included in Carburetor Overhaul Kit-Part No. 394502. Included in Gasket Set-Part No. 394501

$5.49

$

In Stock, Qty 9

0

549

Briggs & Stratton 271180

Washer
(Superseded to 691875)

$7.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 93853

Bolt-Governor Lever
(Superseded to 690311)

$4.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 92278

Nut, Hex (1/4-20)
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 271013

Sealing Washer (Foam)
(Superseded to 691872)

Note: Included in Carburetor Overhaul Kit-Part No. 394502

$7.49

$

Usually ships in 2-12 days

0

642A

Briggs & Stratton 223002

Cover-Air Cleaner

$29.99

$

Usually ships in 2-12 days

0

642

Briggs & Stratton 223579

Cover-Air Cleaner
(Superseded to 224436)

$67.99

$

Usually ships in 2-12 days

0

643A

Briggs & Stratton 222859

Cartridge Plate-Air Cleaner

$14.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 223714

Retainer-Air Filter

$14.99

$

Usually ships in 2-12 days

0

858

Briggs & Stratton 270989

Diaphragm-Pump
(Superseded to 691871)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$6.49

$

In Stock, only 1 left!

0

859

Briggs & Stratton 271025

Gasket-Pump
(Superseded to 691873)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$8.49

$

In Stock, only 1 left!

0

860

Briggs & Stratton 261358

Spring, Valve
(Superseded to 691799)

Note: Included in Carburetor Overhaul Kit-Part No. 394502 and Pump Repair Kit-Part No. 393397

$7.49

$

In Stock, only 1 left!

0

861

Briggs & Stratton 393397

Repair Kit-Pump

$

$

Not available

862

Briggs & Stratton 394546

Mounting Strap Assy.-Air Cleaner

$9.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 397266

Solenoid-Fuel

$

$

Not available

955

Briggs & Stratton 397882

Plug-Carb (Solenoid Hole)

$

$

Not available
