404577-0264-E1 - Briggs & Stratton Vertical Engine Cylinder, Engine Sump Parts Diagram

Vertical Engine

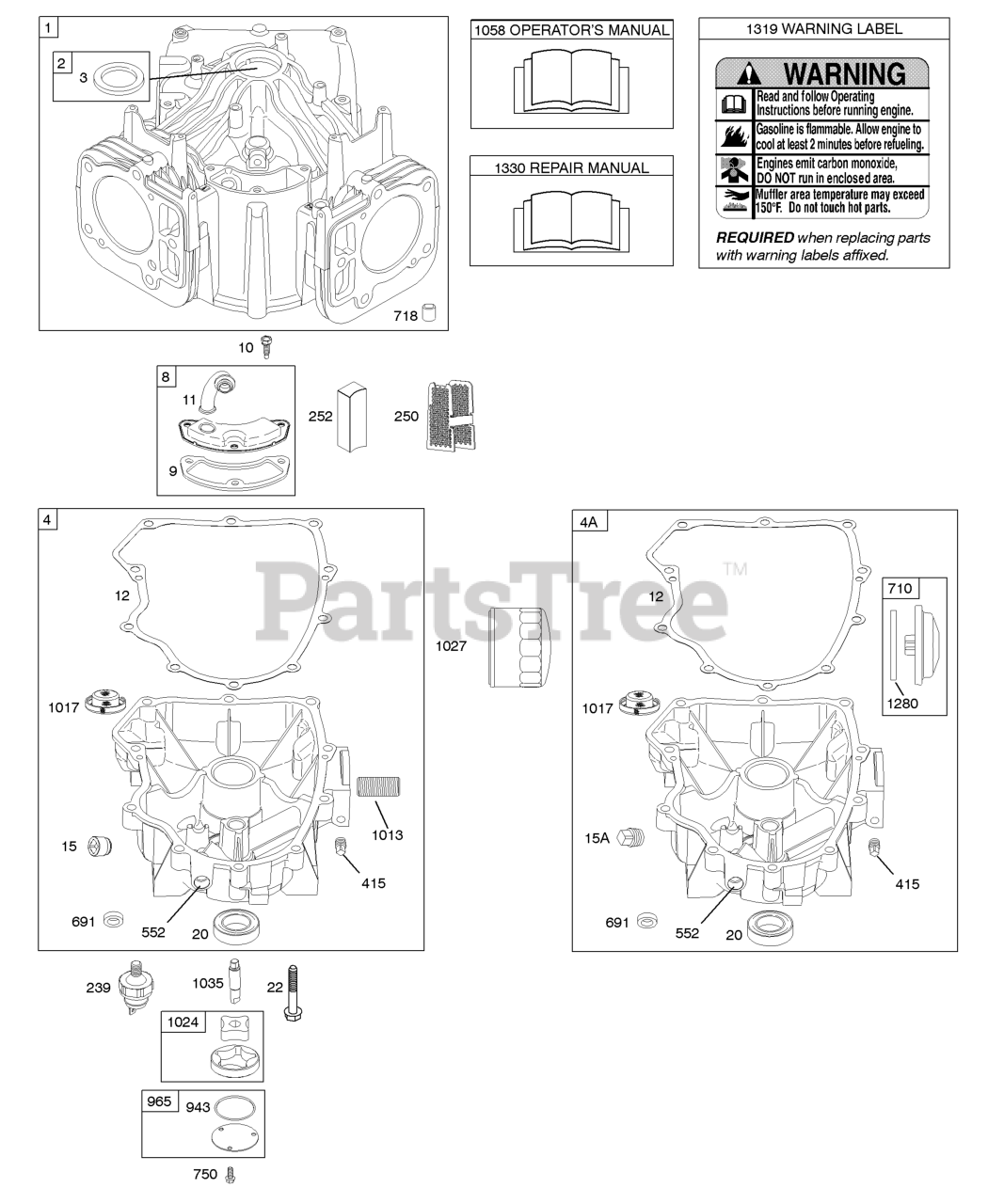

Cylinder, Engine Sump Parts Diagram

  • Title

1

Briggs & Stratton 699751

Cylinder Assembly
(Superseded to 594969)

$418.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 499585

Kit-Bushing/Seal
(Superseded to 797673)

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 699747

Sump-Engine
(Superseded to 796307)

$278.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 792185

Breather Assembly

$

$

Not available

9

Briggs & Stratton 690937

Gasket-Breather

$8.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691108

SCREW

Note: (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 792184

Tube-Breather

$14.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

$37.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 1 left!

0

15A

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

SCREW

Note: (Crankcase Cover/Sump)

$5.99

$

Usually ships in 2-12 days

0

239

Briggs & Stratton 792028

Switch-Oil Pressure

$28.99

$

In Stock, only 1 left!

0

250

Briggs & Stratton 690957

Retainer-Breather

$6.99

$

In Stock, only 1 left!

0

252

Briggs & Stratton 690956

Collector-Oil
(Superseded to 794389)

$7.99

$

In Stock, only 1 left!

0

415

Briggs & Stratton 690283

Plug
(Superseded to 794903)

$5.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 690552

Bushing-Governor Crank

$8.49

$

In Stock, Qty 9

0

691

Briggs & Stratton 790574

SEAL, Governor Shaft

$5.99

$

In Stock, Qty 20+

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

750

Briggs & Stratton 696999

Screw

Note: (Oil Pump Cover)

$29.99

$

Usually ships in 2-12 days

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

COVER, Oil Pump

$13.99

$

In Stock, Qty 10

0

1013

Briggs & Stratton 690954

NIPPLE, Oil Filter

$7.99

$

In Stock, Qty 5

0

1017

Briggs & Stratton 690770

Screen-Oil Pump

$

$

Not available

1024

Briggs & Stratton 499054

Pump-Oil
(Superseded to 794644)

$35.99

$

In Stock, only 1 left!

0

1027

Briggs & Stratton 492932S

FILTER, Oil

$12.99

$

In Stock, Qty 20+

0

1035

Briggs & Stratton 691042

Shaft-Pump
(Superseded to 794644)

$35.99

$

In Stock, only 1 left!

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1058

Briggs & Stratton 276245

Operator's Manual
(Superseded to 276352)

$

$

Not available

1330

Briggs & Stratton 273521

Repair Manual

$34.99

$

In Stock, only 1 left!

0
