40411 (5200) - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start ELECTRICAL Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start

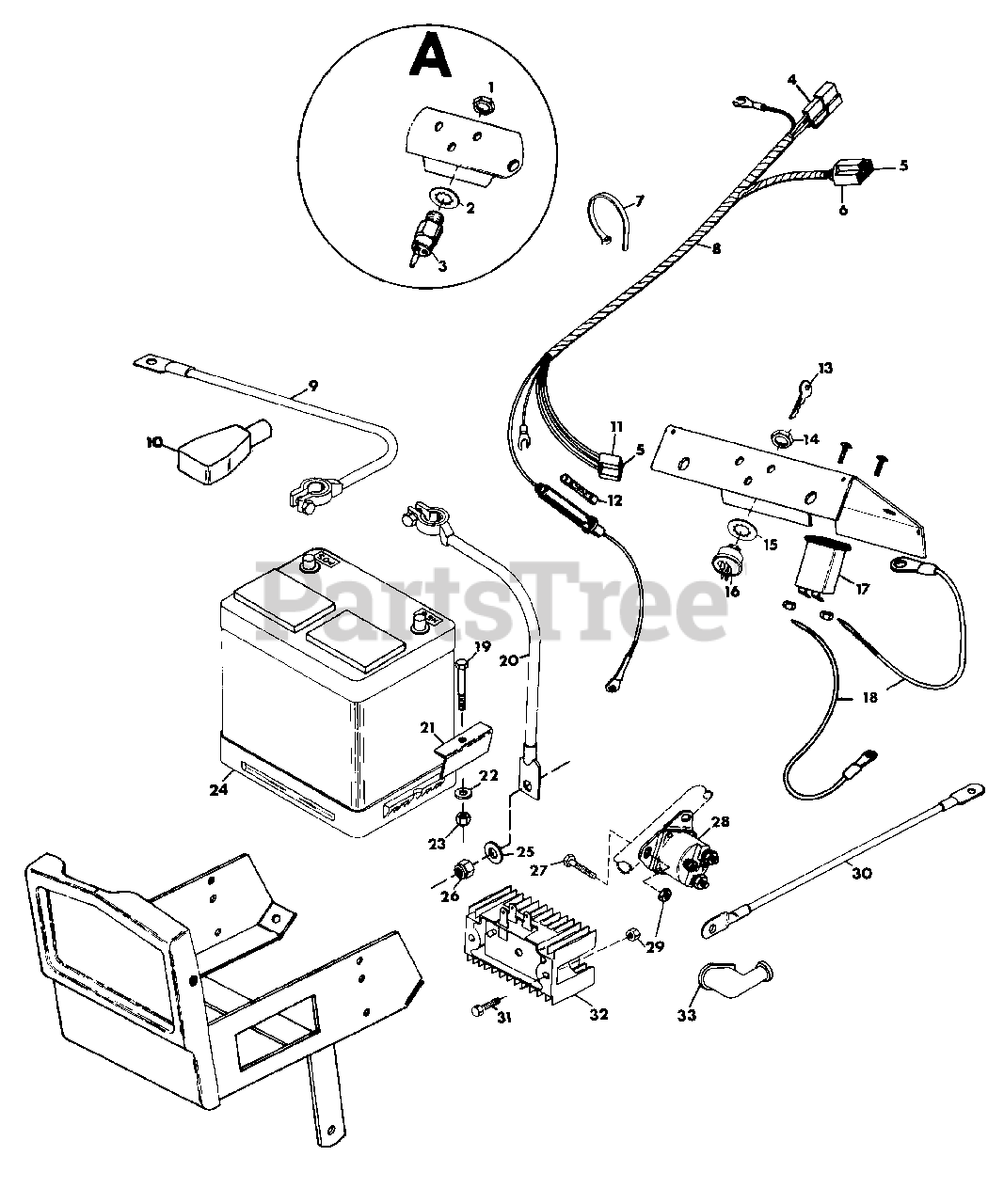

ELECTRICAL Parts Diagram

  • Title

1

Gravely 018585

NUT, JAM 5/8-32
(Superseded to 21119800)

$

$

Not available

2

Gravely 018586

WASHER, LOCK 5/8 INT. TOOTH
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 021104

SWITCH, IGNITION
(Superseded to 53204700)

$59.99

$

In Stock, only 1 left!

0

4

Gravely 038057

CONNECTOR(MODEL 5465,5665)
(Superseded to 20645000)

Note: (MODEL 5465,5665)

$

$

Not available

5

Gravely 038059

TERMINAL(MODEL 5465,5665)
(Superseded to 08540001)

Note: (MODEL 5465,5665)

$3.99

$

In Stock, Qty 5

0

5

Gravely 038059

TERMINAL(MODEL 5260)
(Superseded to 08540001)

Note: (MODEL 5260)

$3.99

$

In Stock, Qty 5

0

6

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

7

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

8

Gravely 024759

HARNESS, WIRING 3 AMP(MODEL 5260)
(Superseded to 20418401)

Note: (MODEL 5260)

$62.99

$

Usually ships in 4-12 days

0

Gravely 019222

HARNESS, WIRING 15 AMP(MODEL 5465,5665)
(Superseded to 20275500)

Note: (MODEL 5465,5665)

$

$

Not available

9

Gravely 021368

CABLE, POSITIVE BATTERY
(Superseded to 08516500)

$

$

Not available

10

Gravely 034466

COVER, BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

11

Gravely 038800

CONNECTOR(MODEL 5465,5665)
(Superseded to 20652300)

Note: (MODEL 5465,5665)

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 014893

FUSE, 30 AMP ACC-30
(Superseded to 20176100)

$

$

Not available

13

Gravely 018570

KEY, IGNITION SWITCH
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

14

Gravely 019666

NUT, JAM 9/16-24
(Superseded to 20287700)

$3.99

$

In Stock, only 1 left!

0

15

Gravely 019667

WASHER, LOCK
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

16

Gravely 019223

SWITCH, IGNITION
(Superseded to 59211800)

$68.99

$

In Stock, Qty 13

0

17

Gravely 038256

HOURMETER
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

18

Gravely 021425

WIRE, INSTRUMENT PANEL
(Superseded to 08801600)

$

$

Not available

19

Gravely 180044

BOLT, HEX 1/4-20X2.00
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 040410

CABLE, NEGATIVE BATTERY
(Superseded to 08542000)

$

$

Not available

21

Gravely 037742

CLAMP
(Superseded to 08539500)

$22.99

$

In Stock, only 1 left!

0

22

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 037764

BATTERY, 12 VOLT MAINTENANCE-FREE

$

$

Not available

25

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

27

Gravely 180042

BOLT, HEX 1/4-20X1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

28

Gravely 007277

SWITCH, MAGNETIC
(Superseded to 20031900)

$51.99

$

In Stock, only 1 left!

0

29

Gravely 120375

NUT, HEX 1/4-20(MODEL 5260)
(Superseded to 06500916)

Note: (MODEL 5260)

$0.99

$

In Stock, Qty 13

0

29

Gravely 120375

NUT, HEX 1/4-20(MODEL 5465,5665)
(Superseded to 06500916)

Note: (MODEL 5465,5665)

$0.99

$

In Stock, Qty 13

0

30

Gravely 006981

CABLE, MAGNETIC SWITCH TO STARTER
(Superseded to 08547300)

$

$

Not available

31

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 018009

REGULATOR, RECTIFIER
(Superseded to 08505600)

$143.99

$

Usually ships in 4-12 days

0

33

Gravely 033847

BOOT, BATTERY CABLE(MODEL 5260,5665)
(Superseded to 03384700)

Note: (MODEL 5260,5665)

$

$

Not available
