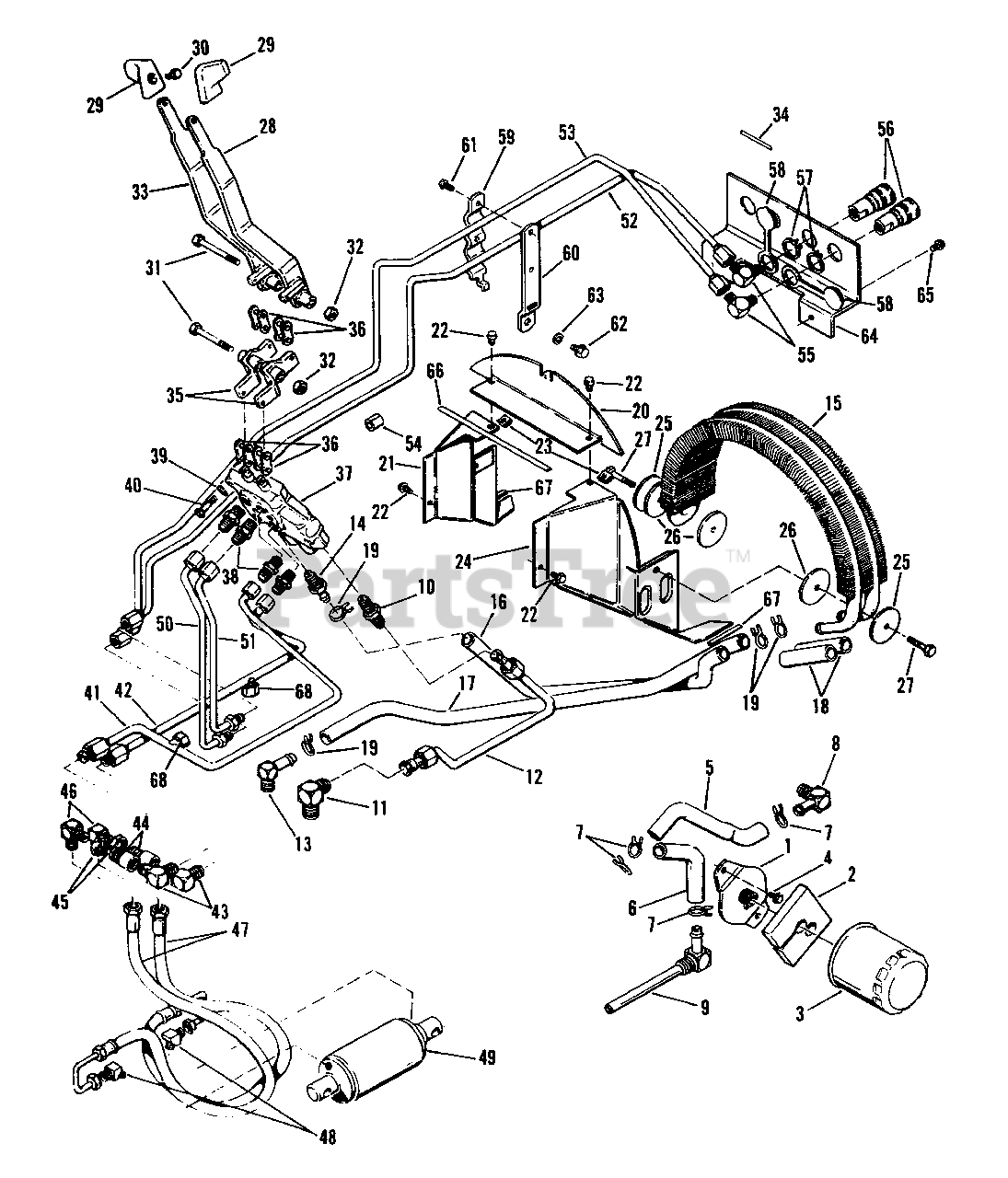

4041 (990954) - Simplicity Power Max Garden Tractor HYDRAULIC SYSTEM Parts Diagram

Power Max Garden Tractor

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Simplicity 171842

Filter Plate Assembly

$

$

Not available

2

Simplicity 173120

Pad

$

$

Not available

3

Simplicity 2171439

Oil Filter

$

$

Not available

4

Simplicity 2715083

Hex Capscrew, 5/16"-18 x 1/2" lg.

$

$

Not available

5

Simplicity 2175119

Hydraulic Hose

$

$

Not available

6

Simplicity 171454

Hydraulic Hose

$

$

Not available

7

Simplicity 2171457

Hose Clamp

$

$

Not available

8

Simplicity 174627

Elbow Assembly

$

$

Not available

9

Simplicity 174628

Elbow

$

$

Not available

10

Simplicity 171460

Male Connector

$

$

Not available

11

Simplicity 171461

Elbow

$

$

Not available

12

Simplicity 172838

Tube Assembly

$

$

Not available

13

Simplicity 173051

Elbows

$

$

Not available

14

Simplicity 2171465SM

Hose Connector

$19.99

$

Usually ships in 2-12 days

0

15

Simplicity 172116

Oil Cooler

$

$

Not available

16

Simplicity 2172322

Hydraulic Hose

$

$

Not available

17

Simplicity 2172323

Hydraulic Hose

$

$

Not available

18

Simplicity 173227

Hydraulic Hose

$

$

Not available

19

Simplicity 2166044

Hose Clamp

$

$

Not available

20

Simplicity 174474

Upper Shroud (Rear)

$

$

Not available

21

Simplicity 174524

Shroud Assembly, Left Hand

$

$

Not available

22

Simplicity 2715067

Thread Forming Screw, 1/4"-20 x 3/8" lg.

$

$

Not available

23

Simplicity 2718057

Speed Nut

$

$

Not available

24

Simplicity 174476

Shroud Assembly, Right Hand

$

$

Not available

25

Simplicity 2166150

Washer

$

$

Not available

26

Simplicity 172757

Washer

$

$

Not available

27

Simplicity 2715158

Thread Forming Screw, 1/4"-20 x 1-1/2" lg.

$

$

Not available

28

Simplicity 171105

Lever Assembly

$

$

Not available

29

Simplicity 2171165

Knob

$

$

Not available

30

Simplicity 2715085

Thread Forming Screw, 1/4"-20 x 3/4" lg.

$

$

Not available

31

Simplicity 2705028

Hex Capscrew, 3/8"-16 x 2-3/4" lg.

$

$

Not available

32

Simplicity 2717524

Hex Jam Nut, 3/8"-16

$

$

Not available

33

Simplicity 175153

Level Assy. (Mfg. Nos. 953 & 954)

$

$

Not available

34

Simplicity 173811

Film "Power lift" (Mfg. Nos. 953 & 954)

$

$

Not available

35

Simplicity 171104

Bellcrank Assembly

$

$

Not available

36

Simplicity 2171101

Connector Link

$

$

Not available

37

Simplicity 173138

Hydraulic Valve (Mfg. No. 920)

$

$

Not available

37

Simplicity 171494

Hydraulic Valve (Mfg. Nos. 953 & 954)

$

$

Not available

38

Simplicity 173115

Male Connector

$

$

Not available

39

Simplicity 2720003

Lockwasher, 1/4"

$

$

Not available

40

Simplicity 715168

Hex Capscrew, 1/4"-20 x 1-3/4" lg.

$

$

Not available

41

Simplicity 172830

Tube Assembly

$

$

Not available

42

Simplicity 172835

Tube Assembly

$

$

Not available

43

Simplicity 173116

Elbow

$

$

Not available

44

Simplicity 173073

Fitting

$

$

Not available

45

Simplicity 173074

Nut

$

$

Not available

46

Simplicity 173319

Elbow

$

$

Not available

47

Simplicity 2172305SM

Hose

$

$

Not available

48

Simplicity 2172320SM

Fitting

$22.99

$

Usually ships in 2-12 days

0

49

Simplicity 2168279

Cylinder

$

$

Not available

50

Simplicity 172836

Tube Assy. (Mfg. Nos. 953 & 954)

$

$

Not available

51

Simplicity 172837

Tube Assy. (Mfg. Nos. 953 & 954)

$

$

Not available

52

Simplicity 172833

Tube Assy. (Mfg. Nos. 953 & 954)

$

$

Not available

53

Simplicity 172834

Tube Assy. (Mfg. Nos. 953 & 954)

$

$

Not available

54

Simplicity 176574

Spacer (Mfg. Nos. 953 & 954)

$

$

Not available

55

Simplicity 173116

Elbow (Mfg. Nos. 953 & 954)

$

$

Not available

56

Simplicity 2173358SM

Body Assy. (Mfg. Nos. 953 & 954)

$74.99

$

In Stock, only 1 left!

0

57

Simplicity 2166017SM

Retaining Ring (Mfg. Nos. 953 & 954)

$1.99

$

Usually ships in 2-12 days

0

58

Simplicity 2173360SM

Plastic Plug (Mfg. Nos. 953 & 954)

$16.99

$

In Stock, Qty 6

0

59

Simplicity 172766

Clamp (Mfg. Nos. 953 & 954)

$

$

Not available

60

Simplicity 172767

Bracket (Mfg. Nos. 953 & 954)

$

$

Not available

61

Simplicity 2715077

Taptite Screw, 1/4"-20 x 5/8" lg. (Mfg. Nos. 953 & 954)

$

$

Not available

62

Simplicity 2705011

Hex Capscrew, 3/8"-16 x 5/8" lg. (Mfg. Nos. 953 & 954)

$

$

Not available

63

Simplicity 2720002

Lockwasher, 3/8" (Mfg. Nos. 953 & 954)

$

$

Not available

64

Simplicity 172755

Mtg. Plate (Mfg. Nos. 953 & 954)

$

$

Not available

65

Simplicity 2715090

Washer Hd. Screw, 1/4"-20 x 1/2" lg. (Mfg. Nos. 953 & 954)

$

$

Not available

66

Simplicity 173118

Molding

$

$

Not available

67

Simplicity 173119

Molding

$

$

Not available

68

Simplicity 173117

Cap

$

$

Not available
