4041 (990953) - Simplicity Power Max Garden Tractor MAIN DRIVE Parts Diagram

Power Max Garden Tractor

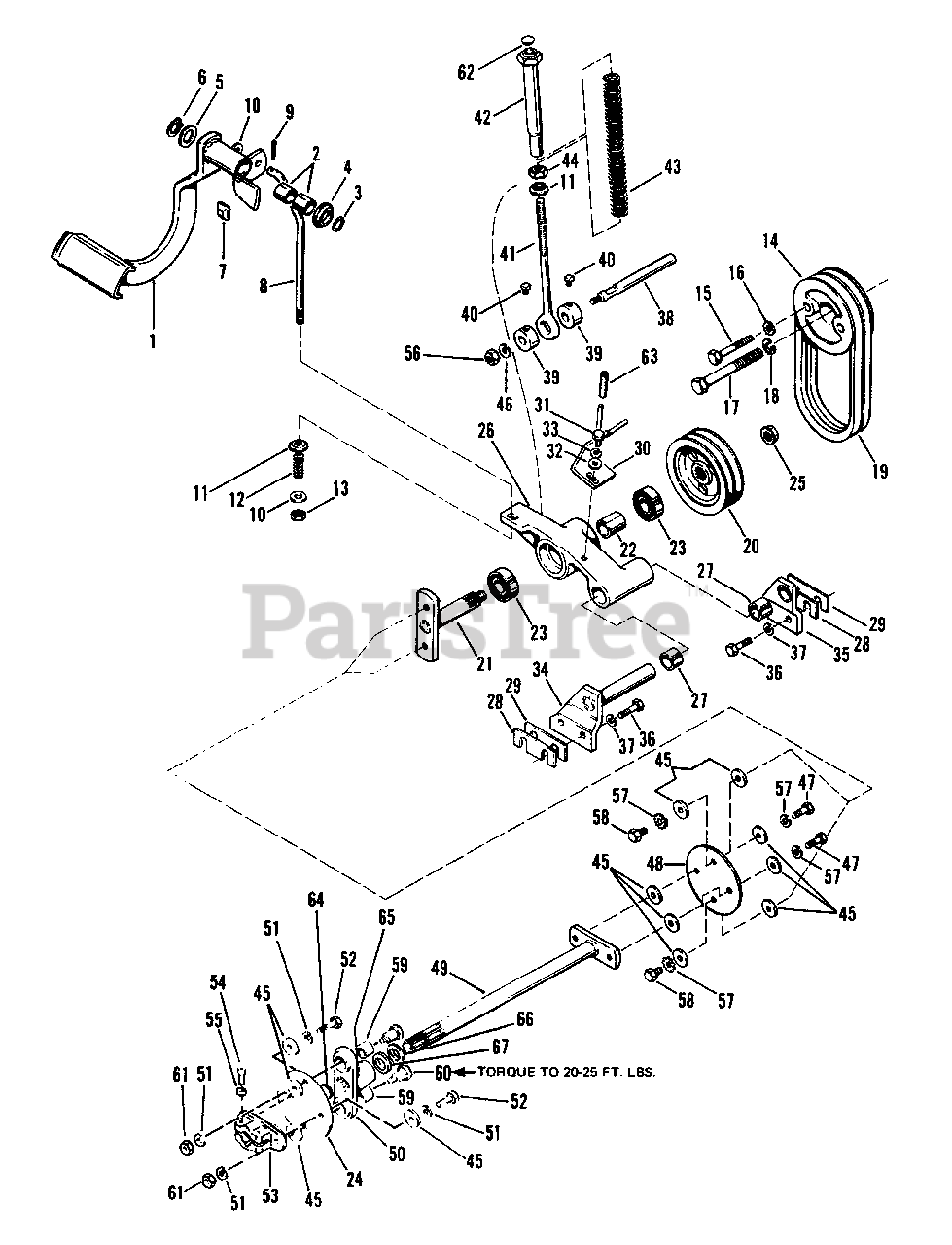

MAIN DRIVE Parts Diagram

  • Title

1

Simplicity 168122

Lever Assembly

$

$

Not available

2

Simplicity 168140

Bearing Sleeve

$

$

Not available

3

Simplicity 2118134SM

Retaining Ring

$

$

Not available

4

Simplicity 154462

Washer

$

$

Not available

5

Simplicity 2101022

Washer

$

$

Not available

6

Simplicity 168152

Retaining Ring

$

$

Not available

7

Simplicity 171005

Bumper

$

$

Not available

8

Simplicity 171006

Clutch Rod

$

$

Not available

9

Simplicity 2722001

Cotter Pin

$

$

Not available

10

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

11

Simplicity 171007

Clutch Spacer

$

$

Not available

12

Simplicity 172868

Spring

$

$

Not available

13

Simplicity 2717510

Hex Nut, Lock, 3/8"-16

$

$

Not available

14

Simplicity 172541

Input Pulley

$

$

Not available

15

Simplicity 2715072

Hex Capscrew, 3/8"-16 x 2-3/4" lg.

$

$

Not available

16

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

17

Simplicity 715058

Hex Capscrew, 7/16"-14 x 4-1/2" lg.

$

$

Not available

18

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

19

Simplicity 2170921SM

Matched "V" Belts

$40.99

$

In Stock, only 3 left!

0

20

Simplicity 176216

Input Pulley

$

$

Not available

21

Simplicity 2176217SM

Shaft Assembly

$216.99

$

In Stock, only 1 left!

0

22

Simplicity 176221

Spacer

$

$

Not available

23

Simplicity 2108202SM

Bearing

$11.99

$

In Stock, Qty 20+

0

24

Simplicity 2175230SM

Coupling

$73.99

$

In Stock, only 3 left!

0

25

Simplicity 2172887

Washer Base Lock Nut

$

$

Not available

26

Simplicity 176222

Pivot Arm

$

$

Not available

27

Simplicity 2154289SM

Bearing Sleeve

$12.99

$

Usually ships in 2-12 days

0

28

Simplicity 173042

Shim

$

$

Not available

29

Simplicity 173043

Shim

$

$

Not available

30

Simplicity 173760

Belt Stop

$

$

Not available

31

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available

32

Simplicity 2719002

Plain Washer

$

$

Not available

33

Simplicity 2720001

Lock Washer

$

$

Not available

34

Simplicity 170932

Support Assembly

$

$

Not available

35

Simplicity 172975

Support Assembly

$

$

Not available

36

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

37

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

38

Simplicity 170958

Pivot Shaft

$

$

Not available

39

Simplicity 1729282SM

Set Collar

$16.99

$

Usually ships in 2-12 days

0

40

Simplicity 2713503

Set Screw, 5/16"-18 x 5/16" lg.

$

$

Not available

41

Simplicity 170959

Eyebolt

$

$

Not available

42

Simplicity 176460

Tube Assembly

$

$

Not available

43

Simplicity 2171011SM

Spring

$75.99

$

In Stock, only 1 left!

0

44

Simplicity 2717013

Hex Nut, Jam, 3/8"-16

$

$

Not available

45

Simplicity 2157424SM

Special Washer

$7.49

$

In Stock, Qty 5

0

46

Simplicity 2720002

Look Washer, 3/8"

$

$

Not available

47

Simplicity 2705004

Hex Capscrew, 3/8"-16 x 7/8" lg.

$

$

Not available

48

Simplicity 2173026SM

Coupling

$39.99

$

In Stock, only 1 left!

0

49

Simplicity 176209

Drive Shaft Assembly

$

$

Not available

50

Simplicity 175229

Yoke

$

$

Not available

51

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

52

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

53

Simplicity 176223

Clamp Yoke

$

$

Not available

54

Simplicity 2715187

Socket Hd. Screw, 5/16"-18 x 1-1/4" lg.

$

$

Not available

55

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

56

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

57

Simplicity 2721004

Shake Proof Lock Washer, 3/8"

$

$

Not available

58

Simplicity 2705004

Hex Capscrew, 3/8"-16 x 7/8" lg.

$

$

Not available

59

Simplicity 2177943SM

Bushing

$18.99

$

Usually ships in 2-12 days

0

60

Simplicity 2108412

Shoulder Bolt

$

$

Not available

61

Simplicity 2717013

Jam Nut

$

$

Not available

62

Simplicity 177777

Hole Plug

$

$

Not available

63

Simplicity 173010

Fuel Line

$

$

Not available

64

Simplicity 177134

Plug

$

$

Not available

65

Simplicity 2727002

Grease Fitting

$

$

Not available

66

Simplicity 172266

Washer

$

$

Not available

67

Simplicity 177141

Felt Washer

$

$

Not available
