4041 (990953) - Simplicity Power Max Garden Tractor 3 POINT HITCH Parts Diagram

Power Max Garden Tractor

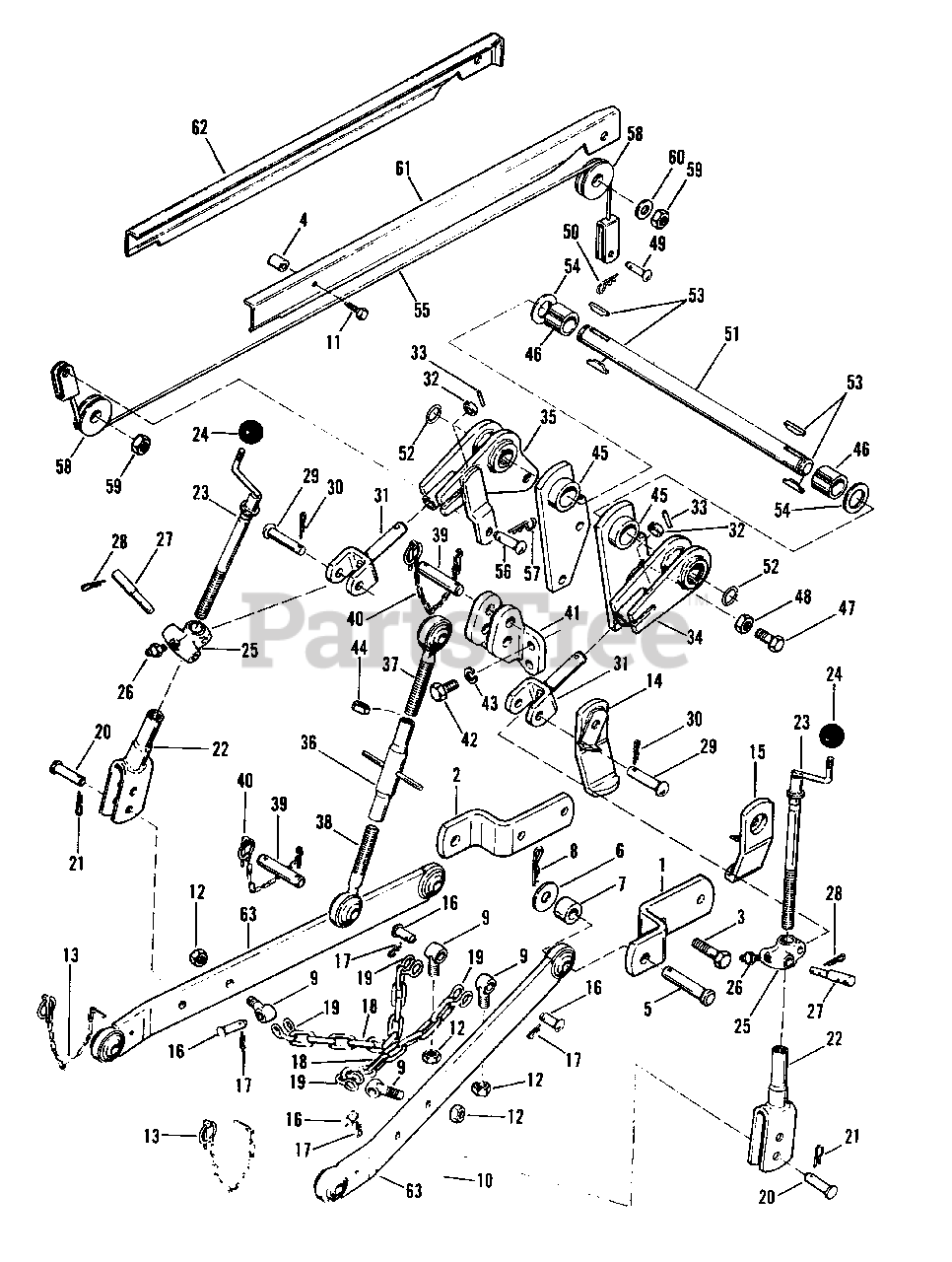

3 POINT HITCH Parts Diagram

  • Title

1

Simplicity 170185

Pull Link Strap, R.H.

$

$

Not available

2

Simplicity 172197

Pull Link Strap, L.H.

$

$

Not available

3

Simplicity 2715141

Hex Capscrew, 1/2"-13 x 2" lg.

$

$

Not available

4

Simplicity 1707571SM

Spacer

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 173641

Pin

$

$

Not available

6

Simplicity 2116001

Washer

$

$

Not available

7

Simplicity 173630

Collar

$

$

Not available

8

Simplicity 2106788

Hair Pin Clip

$

$

Not available

9

Simplicity 168285

Eyebolt

$

$

Not available

10

Simplicity 722013

Cotter Pin, 1/4" x 1-1/2" lg.

$

$

Not available

11

Simplicity 714018

Self Tapping Screw 1/4"-20 x 1-1/4" lg.

$

$

Not available

12

Simplicity 2717516

Hex Nut, Lock, 1/2"-20

$

$

Not available

13

Simplicity 171689

Retaining Ring

$

$

Not available

14

Simplicity 173634

Rub Bar Assy. L.H.

$

$

Not available

15

Simplicity 173635

Rub Bar Assy. R.H.

$

$

Not available

16

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

17

Simplicity 2106787

Spring Clip

$

$

Not available

18

Simplicity 173006

Chain

$

$

Not available

19

Simplicity 168284

Shackle

$

$

Not available

20

Simplicity 2174492

Pin

$

$

Not available

21

Simplicity 2106788

Hair Pin Clip

$

$

Not available

22

Simplicity 171747

Clevis Assembly

$

$

Not available

23

Simplicity 171701

Link Assembly

$

$

Not available

24

Simplicity 1729255SM

Ball

$12.99

$

Usually ships in 2-12 days

0

25

Simplicity 171825

Trunnion

$

$

Not available

26

Simplicity 2727014

Grease Fitting

$

$

Not available

27

Simplicity 173386

Pin

$

$

Not available

28

Simplicity 2106788

Hair Pin Clip

$

$

Not available

29

Simplicity 1729275SM

King Pin

$18.99

$

Usually ships in 2-12 days

0

30

Simplicity 2106788

Hair Pin Clip

$

$

Not available

31

Simplicity 171706

Clevis Assembly

$

$

Not available

32

Simplicity 171709

Collar

$

$

Not available

33

Simplicity 2723008

Roll Pin

$

$

Not available

34

Simplicity 171710

Lift Arm Assy. R.H.

$

$

Not available

35

Simplicity 171714

Lift Arm Assy. L.H.

$

$

Not available

36

Simplicity 2171720

Upper Link Assy.

$

$

Not available

37

Simplicity 2168281

Stud Assembly, R.H.

$

$

Not available

38

Simplicity 2171693

Stud Assembly, L.H.

$

$

Not available

39

Simplicity 2171695SM

Pin

$36.99

$

Usually ships in 2-12 days

0

40

Simplicity 171689

Retaining Ring

$

$

Not available

41

Simplicity 171722

Upper Support Link

$

$

Not available

42

Simplicity 2715092

Hex Capscrew, 7/16"-14 x 1-1/4" lg.

$

$

Not available

43

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

44

Simplicity 718005

Hex Nut, Full

$

$

Not available

45

Simplicity 176606

Support Assembly

$

$

Not available

46

Simplicity 171691

Bushing

$

$

Not available

47

Simplicity 715144

Hex Capscrew, 1/2"-13 x 1-1/2" lg.

$148.99

$

Usually ships in 2-12 days

0

48

Simplicity 2718063

Lock Nut

$

$

Not available

49

Simplicity 2174492

Pin

$

$

Not available

50

Simplicity 2106788

Hair Pin Clip

$

$

Not available

51

Simplicity 171719

Rock Shaft

$

$

Not available

52

Simplicity 2154291SM

Retaining Ring

$6.99

$

Usually ships in 2-12 days

0

53

Simplicity 171692

Key

$

$

Not available

54

Simplicity 106391

Washer

$

$

Not available

55

Simplicity 2172727SM

Cable Assembly

$71.99

$

Usually ships in 2-12 days

0

56

Simplicity 1729281SM

Pin

$8.49

$

In Stock, only 1 left!

0

57

Simplicity 2106787

Spring Clip

$

$

Not available

58

Simplicity 2172725SM

Pulley

$48.99

$

In Stock, only 1 left!

0

59

Simplicity 2717521

Hex Nut, Lock, 1/2"-13

$

$

Not available

60

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

61

Simplicity 172825

Wire Guard, R.H.

$

$

Not available

62

Simplicity 172812

Wire Guard, L.H.

$

$

Not available

63

Simplicity 168293

Pull Link Assembly

$

$

Not available
