4040 (990705) - Simplicity Power Max Garden Tractor, 16.5hp OIL SYSTEM Parts Diagram

Power Max Garden Tractor, 16.5hp

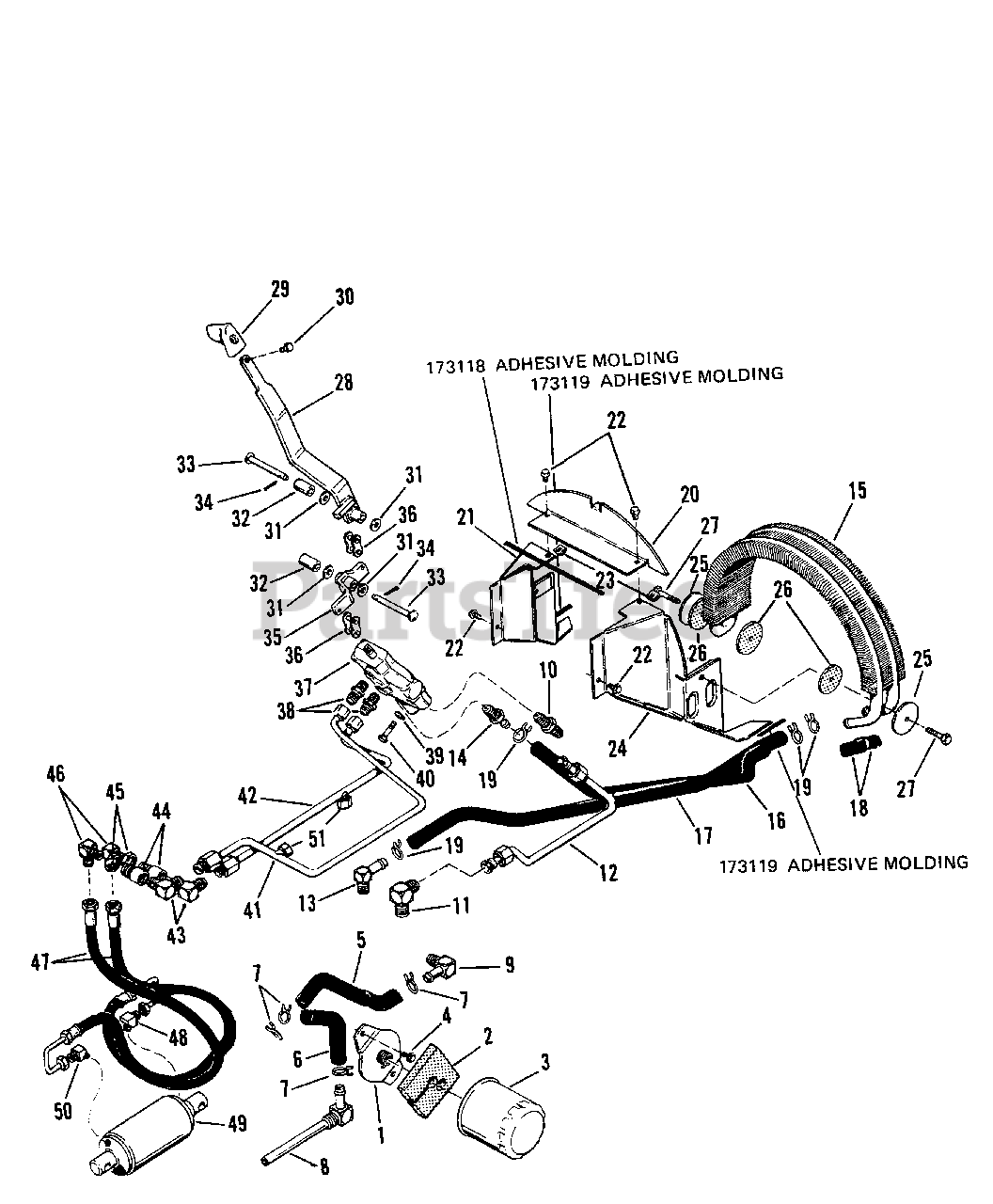

OIL SYSTEM Parts Diagram

  • Title

1

Simplicity 171842

Oil Filter Plate Assembly

$

$

Not available

2

Simplicity 173120

Pad

$

$

Not available

3

Simplicity 2171439

Oil Filter

$

$

Not available

4

Simplicity 2715083

Hex Capscrew, 5/16"-18 x 1/2" lg.

$

$

Not available

5

Simplicity 2175119

Hydraulic Hose

$

$

Not available

6

Simplicity 171454

Hydraulic Hose

$

$

Not available

7

Simplicity 2171457

Hose Clamp

$

$

Not available

8

Simplicity 174627

Elbow Assembly

$

$

Not available

9

Simplicity 174628

Elbow

$

$

Not available

10

Simplicity 171460

Male Connector

$

$

Not available

11

Simplicity 171461

Elbow

$

$

Not available

12

Simplicity 172838

Tube Assembly

$

$

Not available

13

Simplicity 173051

Elbow

$

$

Not available

14

Simplicity 2171465SM

Hose Connector

$19.99

$

Usually ships in 2-12 days

0

15

Simplicity 172116

Oil Cooler

$

$

Not available

16

Simplicity 2172322

Hydraulic Hose

$

$

Not available

17

Simplicity 2172323

Hydraulic Hose

$

$

Not available

18

Simplicity 173227

Hydraulic Hose

$

$

Not available

19

Simplicity 2166044

Hose Clamp

$

$

Not available

20

Simplicity 174474

Shroud, Upper Rear

$

$

Not available

21

Simplicity 174524

Shroud Assembly, L.H.

$

$

Not available

22

Simplicity 2715067

Thread Forming Screw, 1/4"-20 x 3/8" lg.

$

$

Not available

23

Simplicity 2718057

Speed Nut

$

$

Not available

24

Simplicity 174476

Shroud Assembly, R.H.

$

$

Not available

25

Simplicity 2166150

Washer

$

$

Not available

26

Simplicity 172757

Washer

$

$

Not available

27

Simplicity 2715158

Thread Forming Screw, 1/4"-20 x 1-1/2" lg.

$

$

Not available

28

Simplicity 171105

Valve Lever Assembly

$

$

Not available

29

Simplicity 2171165

Knob

$

$

Not available

30

Simplicity 2715085

Thread Forming Screw, 1/4"-20 x 3/4" lg.

$

$

Not available

31

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

32

Simplicity 172926

Hub

$

$

Not available

33

Simplicity 171110

Pivot Pin

$

$

Not available

34

Simplicity 2722016

Cotter Pin, 3/32" x 5/8" lg.

$

$

Not available

35

Simplicity 171104

Valve Bellcrank Assembly

$

$

Not available

36

Simplicity 2171101

Connecting Link

$

$

Not available

37

Simplicity 173138

Hydraulic Valve

$

$

Not available

38

Simplicity 173115

Male Connector

$

$

Not available

39

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

40

Simplicity 2705053

Hex Capscrew, 1/4"-20 x 1-3/4" lg.

$

$

Not available

41

Simplicity 172835

Tube Assembly

$

$

Not available

42

Simplicity 172830

Tube Assembly

$

$

Not available

43

Simplicity 173116

Elbow

$

$

Not available

44

Simplicity 173073

Fitting

$

$

Not available

45

Simplicity 173074

Nut

$

$

Not available

46

Simplicity 172319

Elbow

$

$

Not available

47

Simplicity 2172305SM

Hose

$

$

Not available

48

Simplicity 2172320SM

Fitting

$22.99

$

Usually ships in 2-12 days

0

49

Simplicity 2168279

Cylinder

$

$

Not available

50

Simplicity 172321

Fitting

$

$

Not available

51

Simplicity 173117

Cap

$

$

Not available
