4040 (990705) - Simplicity Power Max Garden Tractor, 16.5hp HOOD, FENDERS, LIGHTS AND PLATFORMS Parts Diagram

Power Max Garden Tractor, 16.5hp

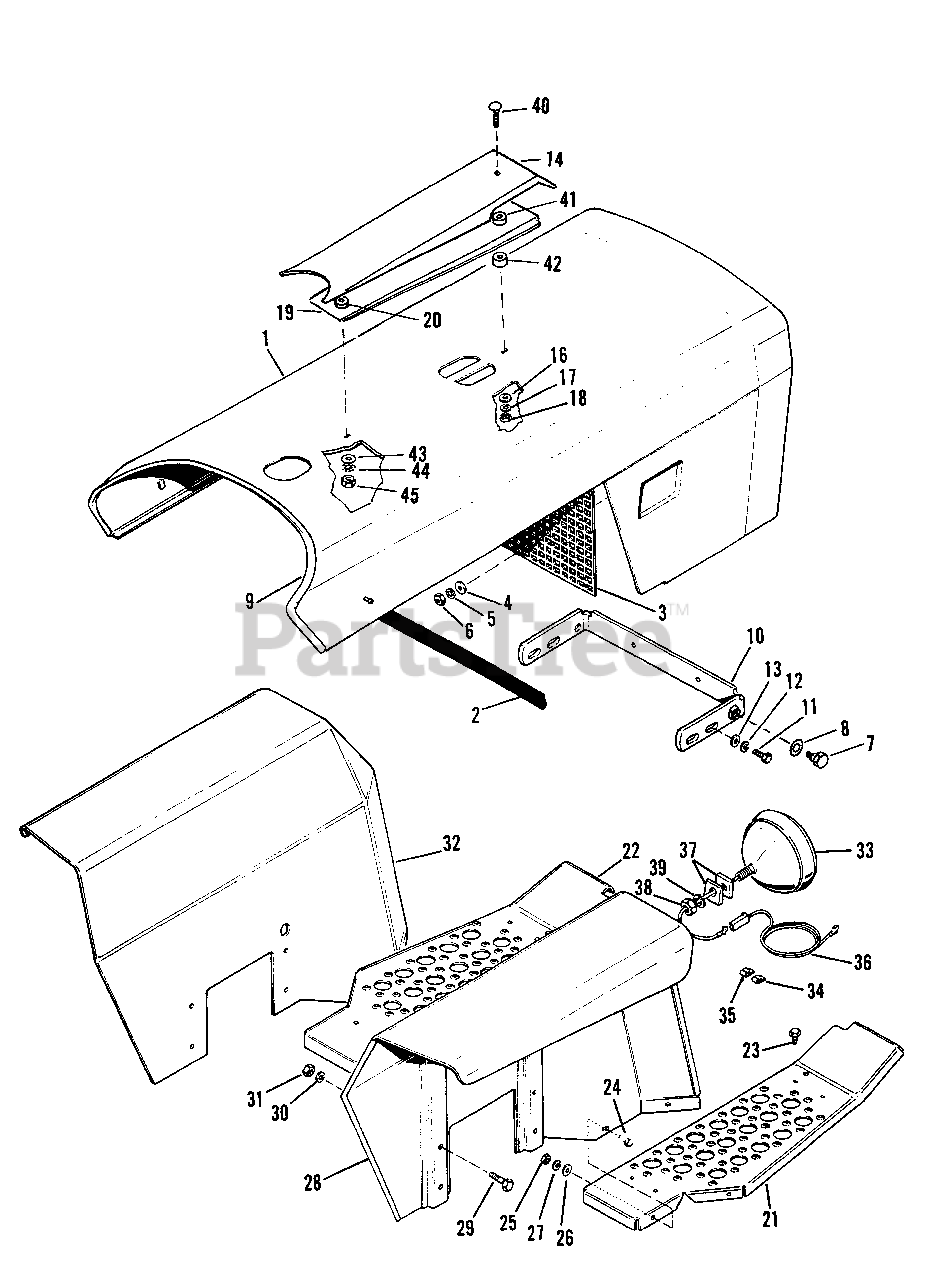

HOOD, FENDERS, LIGHTS AND PLATFORMS Parts Diagram

  • Title

1

Simplicity 170549

Hood Assembly

$

$

Not available

2

Simplicity 173499

Seal

$

$

Not available

3

Simplicity 171738

Grille

$

$

Not available

4

Simplicity 172894

Washer

$

$

Not available

5

Simplicity 2721003

Shakeproof Lock Washer No. 10

$

$

Not available

6

Simplicity 2717023

Hex Nut, Full, No. 10-24

$

$

Not available

7

Simplicity 2108412

Shoulder Bolt

$

$

Not available

8

Simplicity 175234

Washer

$

$

Not available

9

Simplicity 172155

Molding

$

$

Not available

10

Simplicity 175243

Hinge

$

$

Not available

11

Simplicity 2705004

Hex Capscrew, 3/8"-16

$

$

Not available

12

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

13

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

14

Simplicity 174306

Scoop Assembly

$

$

Not available

16

Simplicity 2719008

Plain Washer,

$

$

Not available

17

Simplicity 1909055SM

Lock Washer,

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 174288

Inner Scoop

$

$

Not available

19

Simplicity 174320

Rubber Washer

$

$

Not available

20

Simplicity 173498

Molding

$

$

Not available

21

Simplicity 170457

Platform, R.H.

$

$

Not available

22

Simplicity 170458

Platform, L.H.

$

$

Not available

23

Simplicity 2715125

Thread Forming Screw 5/16"-18 x 7/8" lg.

$

$

Not available

24

Simplicity 2705012

Thread Forming Screw, 5/16"-18 x 5/8" lg.

$

$

Not available

25

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

26

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

27

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

28

Simplicity 170431

Wheel Guard Assembly, R.H.

$

$

Not available

29

Simplicity 2705009

Hex Capscrew, 3/8"-16 x 1-1/2" lg.

$

$

Not available

30

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

31

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

32

Simplicity 170432

Wheel Guard Assembly, L.H.

$

$

Not available

33

Simplicity 170462

Lamp

$

$

Not available

34

Simplicity 122159

Clip

$

$

Not available

35

Simplicity 172910

Clip

$

$

Not available

36

Simplicity 172911

Wire

$

$

Not available

37

Simplicity 170461

Special Washer

$

$

Not available

38

Simplicity 2717017

Hex Nut, Full, 1/2"-13

$

$

Not available

39

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

40

Simplicity 2703013

Carriage Bolt, 1/4"-20 x 1-1/2" lg.

$

$

Not available

41

Simplicity 174319

Rubber Washer

$

$

Not available

42

Simplicity 174292

Spacer

$

$

Not available

43

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

44

Simplicity 721002

Lock Washer, 1/4" Shakeproof

$

$

Not available

45

Simplicity 717012

Hex Jam Nut, 1/4"-20

$

$

Not available
