4040 (990705) - Simplicity Power Max Garden Tractor, 16.5hp ENGINE, FUEL SYSTEM, AIR CLEANER AND MUFFLER Parts Diagram

Power Max Garden Tractor, 16.5hp

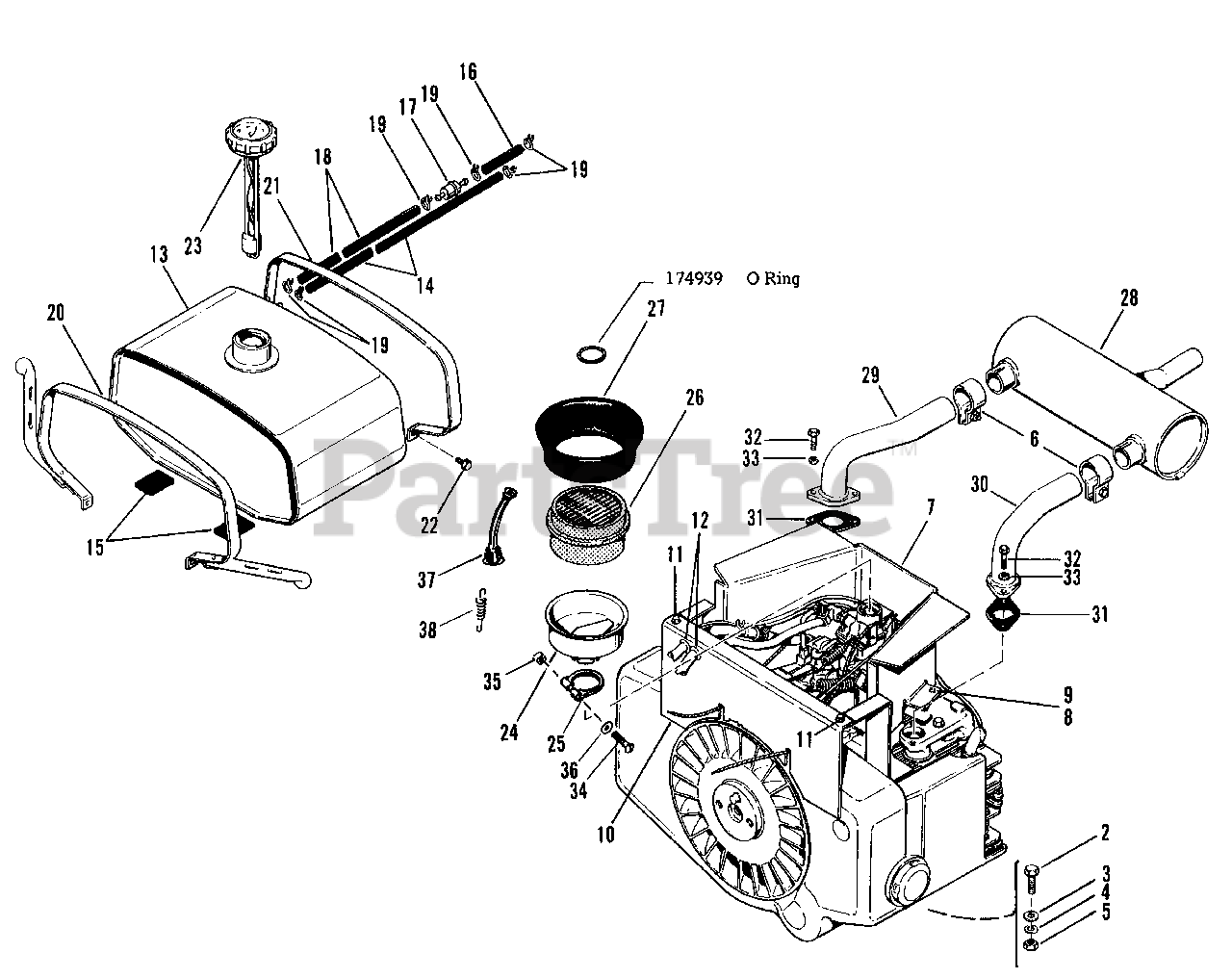

ENGINE, FUEL SYSTEM, AIR CLEANER AND MUFFLER Parts Diagram

  • Title

1

ENGINE, 16.5 HP, Onan, Model CCKA/MS, Type 2026G

$

$

Not available

2

Simplicity 705039

Hex Capscrew, 7/16"-14 x 1-1/2" lg.

$6.99

$

In Stock, only 2 left!

0

3

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

4

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

5

Simplicity 2717022

Hex Nut, Full, 7/16"-14

$

$

Not available

6

Simplicity 2172061SM

Clamps
(Superseded to 2831893SM)

$

$

Not available

7

Simplicity 173003

Heat Shield Assembly

$

$

Not available

8

Simplicity 710004

Rd. Hd. Screw, No. 10-32 x 3/8" lg.

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 1909055SM

Lock Washer No. 10

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 172995

Shroud, Front

$

$

Not available

11

Simplicity 2715090

Self Tapping Screw, 1/4"-20 x 1/2"

$

$

Not available

12

Simplicity 2172176SM

Grommet

$6.49

$

In Stock, only 2 left!

0

13

Simplicity 170717

Fuel Tank Assembly

$

$

Not available

14

Simplicity 171331

Fuel Line, return

$

$

Not available

15

Simplicity 106582

Felt Gasket

$

$

Not available

16

Simplicity 173010

Fuel Line

$

$

Not available

17

Simplicity 2173007

Gas Filter

$

$

Not available

18

Simplicity 2173011

Fuel Line

$

$

Not available

19

Simplicity 2154372

Clamp

$

$

Not available

20

Simplicity 171333

Tank Strap Assembly-Real

$

$

Not available

21

Simplicity 168271

Tank Strap-Front

$

$

Not available

22

Simplicity 2715128

Thread Forming Screw, 1/4"-20 x 1" lg.

$

$

Not available

23

Simplicity 2170730SM

Fuel Gauge

$

$

Not available

24

Simplicity 173814

Funnel Assembly

$

$

Not available

25

Simplicity 174940

Clamp

$

$

Not available

26

Simplicity 173136

Air Cleaner

$

$

Not available

27

Simplicity 173137

Air Cleaner Seal

$

$

Not available

28

Simplicity 2172648

Muffler

$

$

Not available

29

Simplicity 171134

Exhaust Pipe Assembly, L.H.

$

$

Not available

30

Simplicity 171135

Exhaust Pipe Assembly, R.H.

$

$

Not available

31

Simplicity 171159

Gasket

$

$

Not available

32

Simplicity 2715046

Hex Capscrew, 5/16"-18 x 1-1/4" lg. (grade 5)

$

$

Not available

33

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

34

Simplicity 710013

Screw

$22.99

$

Usually ships in 2-12 days

0

35

Simplicity 2717035

S Q Nut

$

$

Not available

36

Simplicity 2719008

Plain Washer

$

$

Not available

37

Simplicity 174106

Breather Tube

$

$

Not available

38

Simplicity 175253

Spring

$

$

Not available
