4040 (990705) - Simplicity Power Max Garden Tractor, 16.5hp CONTROLS AND BATTERY Parts Diagram

Power Max Garden Tractor, 16.5hp

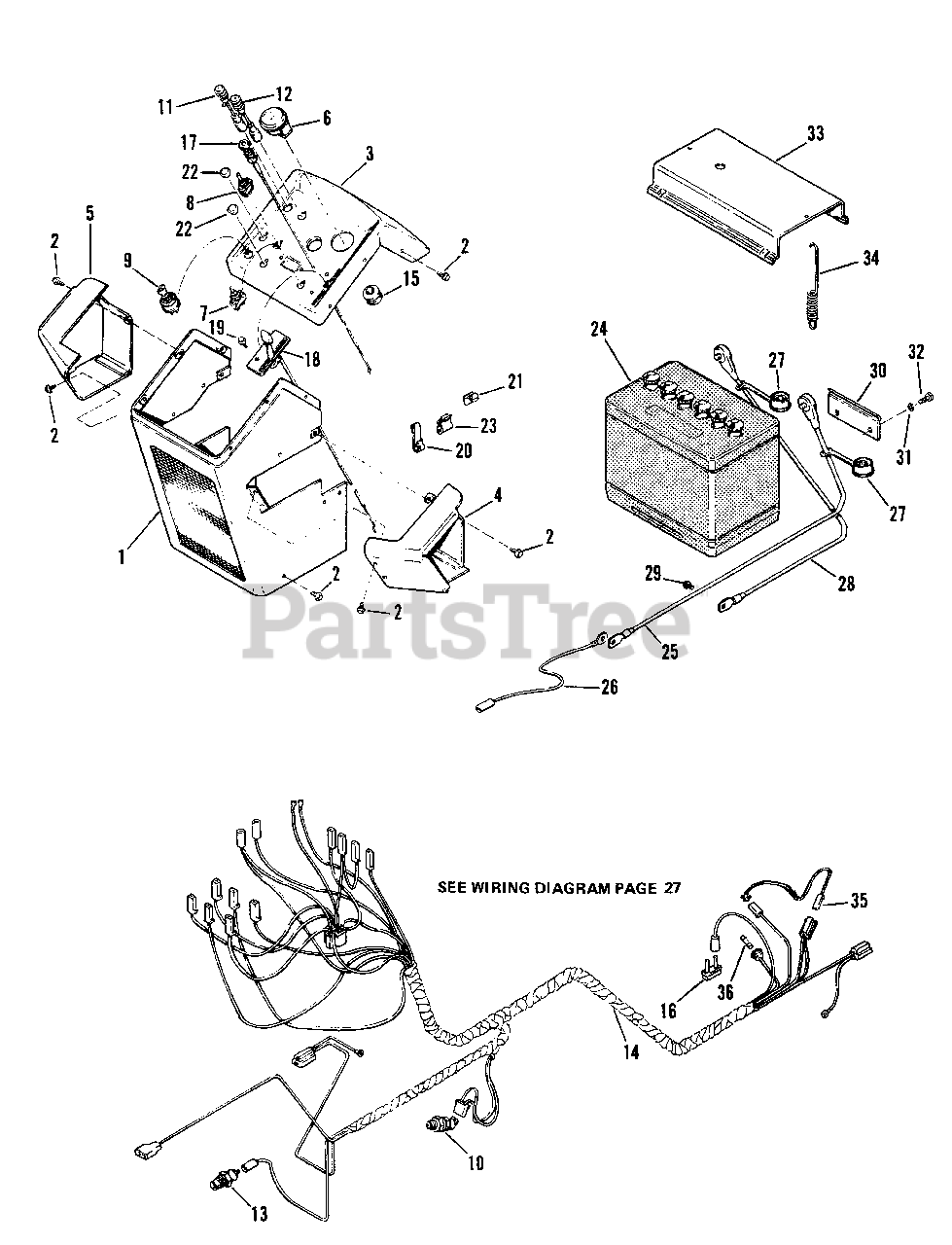

CONTROLS AND BATTERY Parts Diagram

  • Title

1

Simplicity 171139

Body Support Assembly

$

$

Not available

2

Simplicity 2715124

Thread Forming Screw, 1/4"-20 x 3/8" lg.

$

$

Not available

3

Simplicity 173488

Panel Assembly

$

$

Not available

4

Simplicity 172188

Panel Assembly, R.H.

$

$

Not available

5

Simplicity 172189

Panel Assembly, L.H.

$

$

Not available

6

Simplicity 2171492

Ammeter

$

$

Not available

7

Simplicity 2173016SM

Electric Switch

$50.99

$

In Stock, only 2 left!

0

8

Simplicity 2122184SM

Toggle Switch

$22.99

$

Usually ships in 2-12 days

0

9

Simplicity 2171491SM

Ignition Switch

$

$

Not available

10

Simplicity 2122233SM

Safety Switch

$

$

Not available

11

Simplicity 172916

Indicator Light, Hot

$

$

Not available

12

Simplicity 173237

Indicator Light, Oil

$

$

Not available

13

Simplicity 171498

Indicator Light Switch

$

$

Not available

14

Simplicity 172202

Wiring Harness

$

$

Not available

15

Simplicity 173240

Grommet

$

$

Not available

16

Simplicity 2172163

Circuit Breaker

$

$

Not available

17

Simplicity 2172198

Choke Control

$

$

Not available

18

Simplicity 2168243

Throttle Control

$

$

Not available

19

Simplicity 2715077

Thread Forming Screw 1/4"-20 x 5/8" lg.

$

$

Not available

20

Simplicity 173771

Clip

$

$

Not available

21

Simplicity 173783

Speed Clip

$

$

Not available

22

Simplicity 173429

Plug Button

$

$

Not available

23

Simplicity 173769

Clip

$

$

Not available

24

Simplicity 168235

Battery

Note: FOR SERVICE CONTACT YOUR LOCAL UNITED MOTOR SERVICE DEALER (DELCO-REMY)

$

$

Not available

25

Simplicity 173124

Cable-Positive

$

$

Not available

26

Simplicity 173574

Wire

$

$

Not available

27

Simplicity 173419

Cap

$

$

Not available

28

Simplicity 173123

Cable-Negative

$

$

Not available

29

Simplicity 2715110

Taptite Screw, 5/16"-18 x 3/8" lg.

$

$

Not available

30

Simplicity 168236

Clamp

$

$

Not available

31

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available

32

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

33

Simplicity 172230

Cover

$

$

Not available

34

Simplicity 2159181SM

Spring

$7.49

$

In Stock, only 1 left!

0

35

Simplicity 173096

Wire

$

$

Not available

36

Simplicity 1604476

Fuse, 30 Amps.

$

$

Not available
