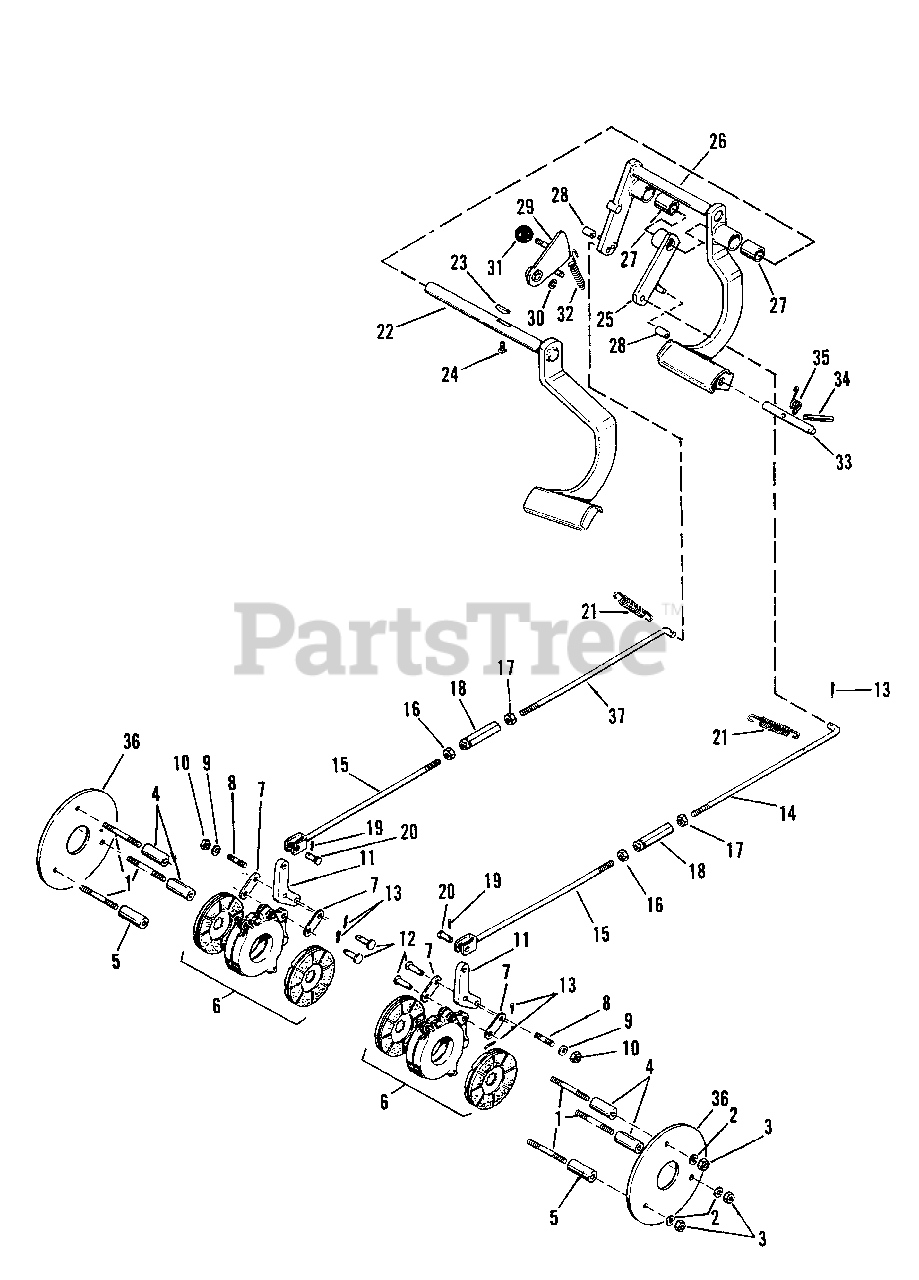

4040 (990705) - Simplicity Power Max Garden Tractor, 16.5hp BRAKES Parts Diagram

Power Max Garden Tractor, 16.5hp

BRAKES Parts Diagram

  • Title

1

Simplicity 170806

Stud

$

$

Not available

2

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

3

Simplicity 2717003

Hex Nut, 3/8"-16

$

$

Not available

4

Simplicity 170814

Spacer

$

$

Not available

5

Simplicity 170813

Spacer

$

$

Not available

6

Simplicity 168063

Brake Assembly

$

$

Not available

7

Simplicity 170802

Link Plate

$

$

Not available

8

Simplicity 170803

Stud

$

$

Not available

9

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

10

Simplicity 2717524

Hex Nut, Full Lock, 3/8"-16

$

$

Not available

11

Simplicity 170816

Brake Lever

$

$

Not available

12

Simplicity 2108158

Pin

$

$

Not available

13

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

14

Simplicity 172864

Brake Rod, Front

$

$

Not available

15

Simplicity 172900

Brake Rod Assembly, Rear

$

$

Not available

16

Simplicity 2717014

Hex Nut, Jam, 3/8"-24-R.H.

$

$

Not available

17

Simplicity 717034

Hex Nut, Jam, 3/8"-24-L.H.

$

$

Not available

18

Simplicity 164072

Turnbuckle

$

$

Not available

19

Simplicity 2722001

Cotter Pin

$

$

Not available

20

Simplicity 2108158

Pin

$

$

Not available

21

Simplicity 2156302

Spring
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

22

Simplicity 168112

Brake Lever Assembly, R.H.

$

$

Not available

23

Simplicity 173272

Key

$

$

Not available

24

Simplicity 2713002

Set Screw, 5/16"-18 x 3/8" lg.

$

$

Not available

25

Simplicity 168126

Brake Rod Anchor Assembly

$

$

Not available

26

Simplicity 168116

Brake Lever Assembly, L.H.

$

$

Not available

27

Simplicity 168119

Bearing Sleeve

$

$

Not available

28

Simplicity 173417

Stop

$

$

Not available

29

Simplicity 175218

Cam Assembly

$

$

Not available

30

Simplicity 2158399SM

Retaining Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

31

Simplicity 2122005SM

Knob

$14.99

$

Usually ships in 2-12 days

0

32

Simplicity 173761

Spring

$

$

Not available

33

Simplicity 173442

Pedal Lock Rod

$

$

Not available

34

Simplicity 723023

Roll Pin
(Superseded to 302778MA)

$18.99

$

Usually ships in 2-12 days

0

35

Simplicity 173755

Spring

$

$

Not available

36

Simplicity 171562

Shim Plate

$

$

Not available

37

Simplicity 173955

Ft. Brake Rod

$

$

Not available
