404 (590-404-100) - Cub Cadet 72" Mower Deck, Mid Mount att Main Frame Parts Diagram

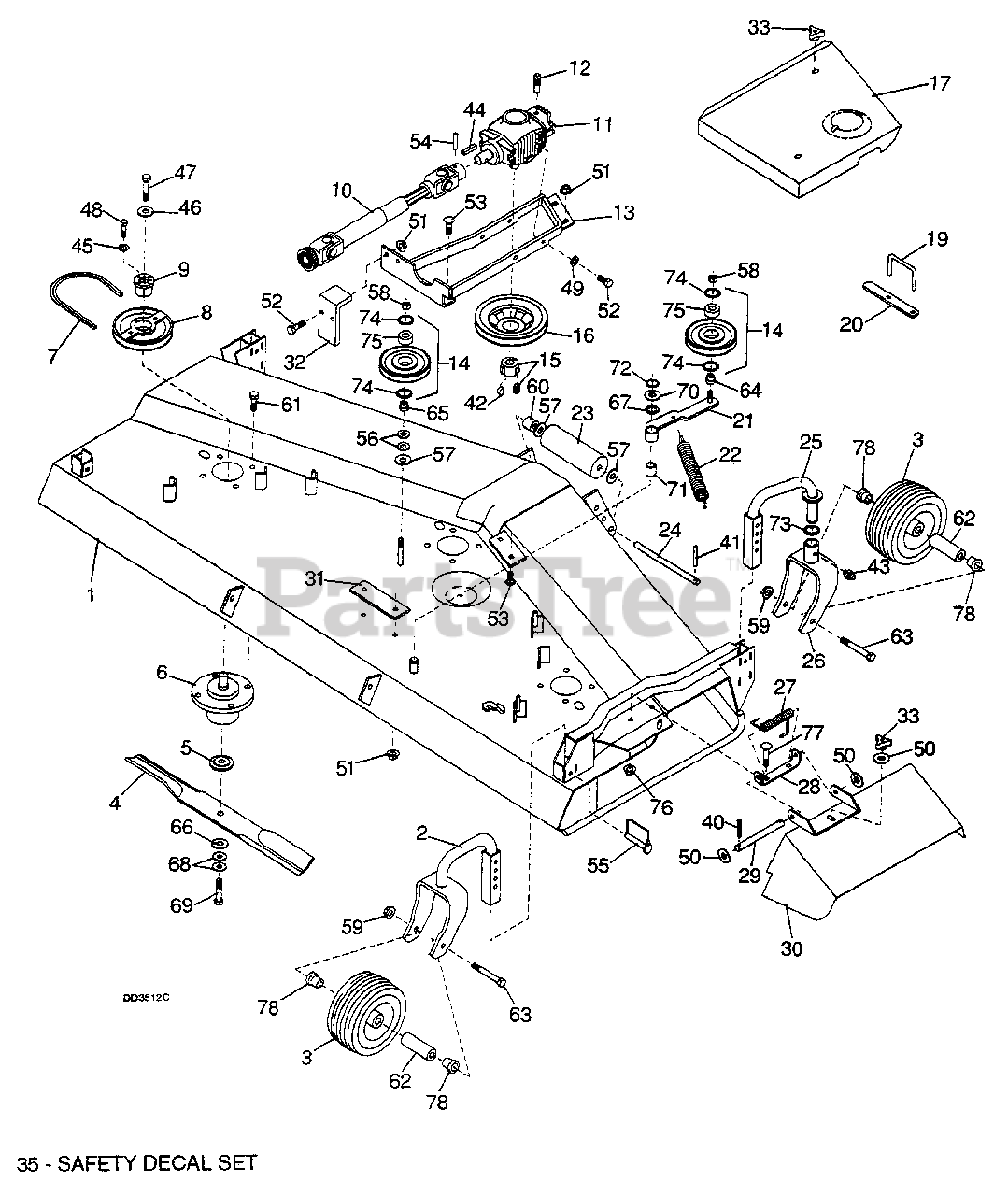

72" Mower Deck, Mid Mount

Main Frame Parts Diagram

  • Title

1

Frame

Note: (Not sold separately)

$

$

Not available

2

Cub Cadet WM-66963

3.5 x 9.5 Wheel Clevis & Handle

$260.99

$

Usually ships in 3-6 days

0

3

Cub Cadet WM-66965

7.75 x 3.5 x .75 Wheel

$

$

Not available

4

Cub Cadet 759-3780

CW 24.66 Blade Kit w/Hdwe

$209.99

$

Usually ships in 3-6 days

0

5

Cub Cadet WM-33736

5/8 x 3 x 7.16 Shoulder washer

$

$

Not available

6

Spindle assembly

Note: (See "Blade Spindle" illustration & parts list)

$

$

Not available

7

Cub Cadet WM-15624

V-Belt WW133

$240.99

$

Usually ships in 3-6 days

0

8

Cub Cadet WM-66955

Sheave, 5.40, 1, B, 1.625

$

$

Not available

9

Cub Cadet WM-34756

H3/4 Bushing with key and hardware

$72.99

$

Usually ships in 3-6 days

0

10

Cub Cadet WM-66543

Drive shaft assembly
(Superseded to WM-1020635)

Note: (See "Drive Shaft" illustrations & parts lists)

$

$

Not available

11

Gearbox assembly

Note: (See "Gearbox" illustration & parts list)

$

$

Not available

12

Cub Cadet WM-34576

Gearbox vent plug

$

$

Not available

13

Cub Cadet WM-66868

Gearbox mounting stand

$

$

Not available

14

Cub Cadet WM-66969

Idler sheave with bearing

$

$

Not available

15

Cub Cadet WM-66505

.81 Bore taper lock bushing w/hardware

$

$

Not available

16

Cub Cadet WM-66507

1 BF 7.0 Offset sheave

$

$

Not available

17

Cub Cadet WM-66976

Right belt shield

$

$

Not available

?18

Cub Cadet WM-66977

Left belt shield

$

$

Not available

19

Cub Cadet WM-34590

Spindle lock wrench

$

$

Not available

20

Cub Cadet WM-34595

Spindle wrench handle

$

$

Not available

21

Cub Cadet WM-66973

Idler arm assembly with bushing

$165.99

$

Usually ships in 3-6 days

0

22

Cub Cadet WM-31360

.2 x 1.45 x 8.1 External spring

$

$

Not available

23

Cub Cadet WM-16173

Roller, 2.38 Dia x 7

$

$

Not available

24

Cub Cadet WM-66981

.5 x 9.75 Pin

$74.99

$

Usually ships in 3-6 days

0

25

Cub Cadet WM-66957

Front gauge wheel arm

$292.99

$

Usually ships in 3-6 days

0

26

Cub Cadet WM-66958

Caster clevis 9.5

$227.99

$

Usually ships in 3-6 days

0

27

Cub Cadet WM-66815

Spring

$

$

Not available

28

Cub Cadet WM-66865

Deck bracket

$

$

Not available

29

Cub Cadet WM-11760

3/8 x 7-1/4 Pin

$

$

Not available

30

Cub Cadet WM-66866

Discharge chute

$

$

Not available

31

Cub Cadet WM-67025

Link, .18 x 1.5 x 5.38

$

$

Not available

32

Cub Cadet WM-67029

Lug, Bent .38 x 2.5 x 3.75

$

$

Not available

33

Cub Cadet WM-66840

3-Prong knob

$

$

Not available

35

Cub Cadet WM-19020

Safety decal set

$

$

Not available

40

Cub Cadet WM-1256

3/16 x 1 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

41

Cub Cadet WM-4115

3/16 x 1-1/8 Spring pin
(Superseded to 715-0150)

Note: Obtain Locally

$4.49

$

In Stock, Qty 15

0

42

Cub Cadet WM-62233

Woodruff key 3/16 x 3/4

Note: Obtain Locally

$

$

Currently unavailable

43

Cub Cadet WM-1972

1/4-28 Taper threaded grease fitting
(Superseded to 937-0146)

Note: Obtain Locally

$5.49

$

In Stock, only 2 left!

0

44

Cub Cadet WM-62234

1/4 x 1/4 x 7/8 Key

Note: Obtain Locally

$

$

Currently unavailable

45

Cub Cadet WM-1985

1/4 Standard lockwasher
(Superseded to 936-0329)

Note: Obtain Locally

$4.49

$

In Stock, Qty 11

0

46

Cub Cadet WM-32806

1/4 x 7/8 x 7GA Washer

$

$

Not available

47

Cub Cadet WM-2457

1/4 NC x 3/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

48

Cub Cadet WM-10378

1/4 NC x 1 HHCS GR5

Note: Obtain Locally

$

$

Currently unavailable

49

Cub Cadet WM-838

3/8 Standard lockwasher

Note: Obtain Locally

$3.99

$

Usually ships in 3-6 days

0

50

Cub Cadet WM-565

3/8 Standard flat washer

Note: Obtain Locally

$

$

Currently unavailable

51

Cub Cadet WM-14350

3/8 NC Flanged hex locknut

$

$

Not available

52

Cub Cadet WM-839

3/8 NC x 1 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

53

Cub Cadet WM-6697

3/8 NC x 1 Carriage bolt GR5

Note: Obtain Locally

$

$

Not available

54

Cub Cadet WM-11606

Spirol pin 3/8 x 1-1/2

$7.99

$

Usually ships in 3-6 days

0

55

Cub Cadet WM-33000

Lynch pin 3/8 x 2-1/4

$

$

Not available

56

Cub Cadet WM-31983

.50 x .88 x 18GA Shim washer

$

$

Not available

57

Cub Cadet WM-854

1/2 Standard flat washer

Note: Obtain Locally

$

$

Not available

58

Cub Cadet WM-765

1/2 NC Hex locknut

Note: Obtain Locally

$

$

Not available

59

Cub Cadet WM-11900

1/2 NC Flanged locknut

Note: Obtain Locally

$5.49

$

In Stock, only 1 left!

0

60

Cub Cadet WM-27887

1/2 x 3/4 x 3/4 Sleeve

$

$

Not available

61

Cub Cadet WM-4119

1/2 NF x 1 Hex head cap screw GR5

$

$

Not available

62

Cub Cadet WM-29368

1/2 x 3/4 x 3-3/8 Sleeve

$18.99

$

In Stock, Qty 7

0

63

Cub Cadet WM-23479

1/2 NC x 5 Hex head cap screw GR5

$4.99

$

In Stock, only 3 left!

0

64

Cub Cadet WM-67284

Shoulder sleeve, .5 x .9 x .76

$

$

Not available

65

Cub Cadet WM-66970

Shoulder sleeve, .667 x .81 x 1.23

$

$

Not available

66

Cub Cadet WM-692

3/8 Standard flat washer

Note: Obtain Locally

$

$

Currently unavailable

67

Cub Cadet WM-22060

5/8 x 1 x 1/4 Felt seal

$

$

Not available

68

Cub Cadet WM-10635

5/8 x 1-3/4 x 14GA Cup washer

$

$

Not available

69

Cub Cadet WM-34582

5/8 NC x 2 Nylok Hex head cap screw GR5

$

$

Not available

70

Cub Cadet WM-11036

3/4 x 1-1/2 x 18GA Shim washer

$

$

Not available

71

Cub Cadet WM-35145

3/4 x 1 x 1 Oilite bushing

$

$

Not available

72

Cub Cadet WM-35139

Retaining ring, External

$

$

Not available

73

Cub Cadet WM-30031

Retaining ring, .078 x 1
(Superseded to WM-M0003)

$

$

Not available

74

Cub Cadet WM-35141

Retaining ring, Internal

$5.99

$

Usually ships in 3-6 days

0

75

Cub Cadet WM-35193

Bearing 6203

$

$

Not available

76

Cub Cadet WM-66885

3/8 NC Spirol lock flange nut

$

$

Not available

77

Cub Cadet WM-24890

3/8 NC x 1-1/4 Carriage bolt

Note: Obtain Locally

$

$

Currently unavailable

78

Cub Cadet WM-65577

3/4 x 1.415 Flanged bearing

$

$

Not available
