404 (216-404-100) - Cub Cadet Rear-Tine Tiller (1986) Tiller Chain Case (Tines) Parts Diagram

Rear-Tine Tiller

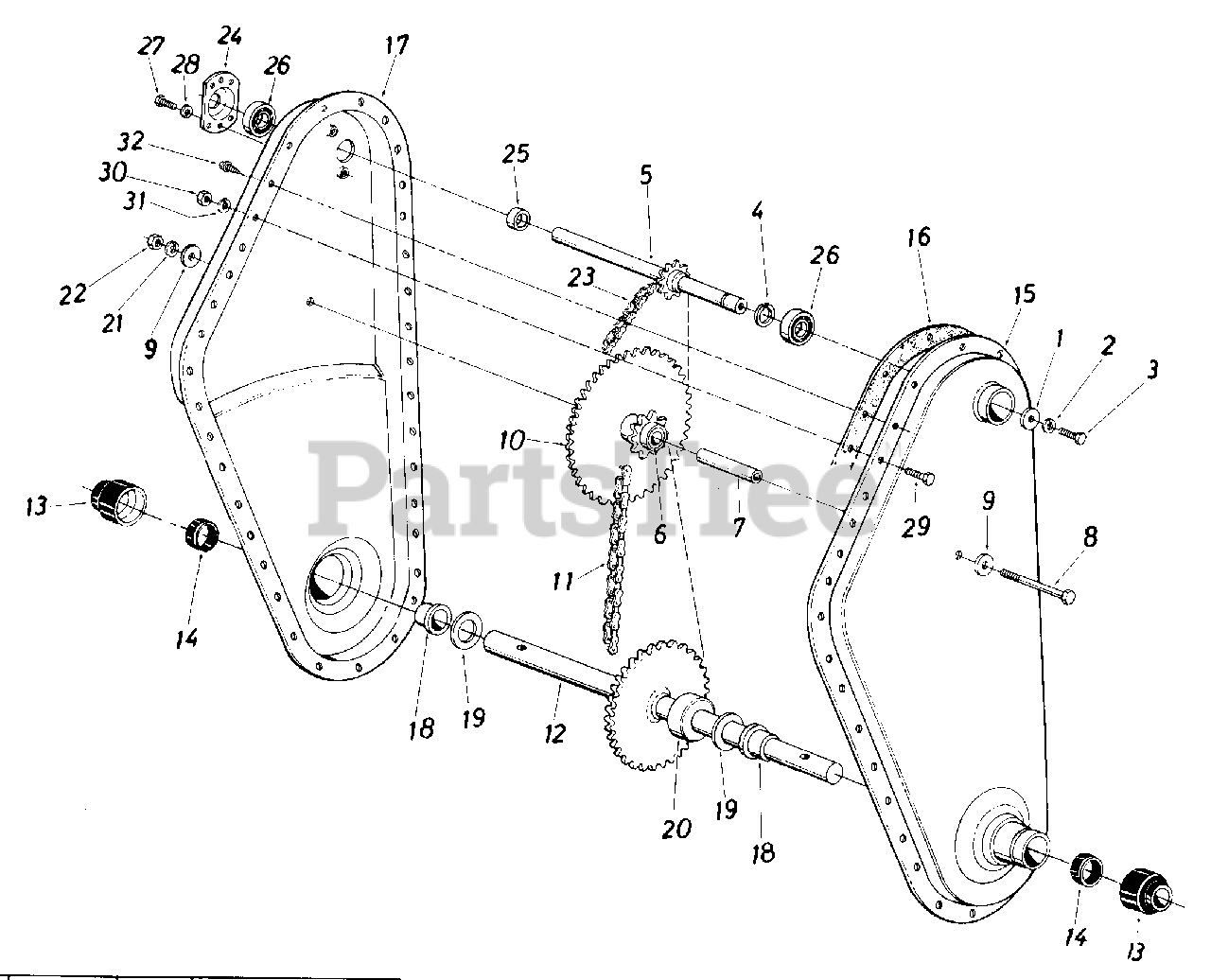

Tiller Chain Case (Tines) Parts Diagram

  • Title
1

Cub Cadet 736-0176

WASHER-FL

$4.99

$

In Stock, only 4 left!

0

2

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 710-0513

BOLT - 1/4-28 X 5/8 61.5
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

4

Cub Cadet 716-0131

RING-SNAP
(Superseded to 916-0131)

$7.49

$

In Stock, only 1 left!

0

5

Cub Cadet 04956

SHAFT-INPUT

$

$

Not available

6

$

$

Not available

7

Cub Cadet 750-0275

HUB-SPROCKET

$

$

Not available

8

Cub Cadet 710-0629

SCREW-HEX 3/8-16 X 2.75

$

$

Not available

9

Cub Cadet 736-0258

WASHER-FL-.385 X 1.00 X .135

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 713-0331

SPROCKET ASSY-8T & 40T

$

$

Not available

11

Cub Cadet 713-0328

#50 CHAIN 5/8 PITCH X 46 LINKS E
(Superseded to 913-0328)

$102.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 14986

SHAFT ASSY-TINE

$

$

Not available

13

Cub Cadet 731-0487

CAP-DUST
(Superseded to 931-0487)

$11.99

$

In Stock, only 3 left!

0

$9.99

$

In Stock, Qty 6

0

15

Cub Cadet 14984

HOUSING ASSY-RH

Variations

Cub Cadet 14984-0637

HOUSING AS - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14984-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

16

Cub Cadet 721-0170

GASKET
(Superseded to 721P0170)

$15.99

$

In Stock, only 1 left!

0

17

Cub Cadet 14985

HOUSING ASSY-LH

Variations

Cub Cadet 14985-0637

HOUSING AS - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14985-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

18

Cub Cadet 731-0374

BEARING-KING PIN
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

19

Cub Cadet 736-0163

WASHER-FL-1.03 ID X 1.62 X .03 HD

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 750-0570

SPACER
(Superseded to 950-0570)

$10.99

$

In Stock, Qty 6

0

21

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0711

NUT-HEX JAM 3/8X24

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 713-0327

#35 CHAIN 3/8 PITCH X 52 LINKS E
(Superseded to 913-0327)

$

$

Not available

24

Cub Cadet 05034

HOUSING-BRG
(Superseded to 05034A)

$

$

Not available

25

$

$

Not available

26

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

27

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

29

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 737-0133

PLASTILUBE-#0-14 OZ CARTRIDGE
(Superseded to 737-0300A)

Note: (12 oz.)

$34.99

$

In Stock, Qty 20+

0
