404 (216-404-100) - Cub Cadet Rear-Tine Tiller (1986) Rotary Tiller Part 2 Parts Diagram

Rear-Tine Tiller

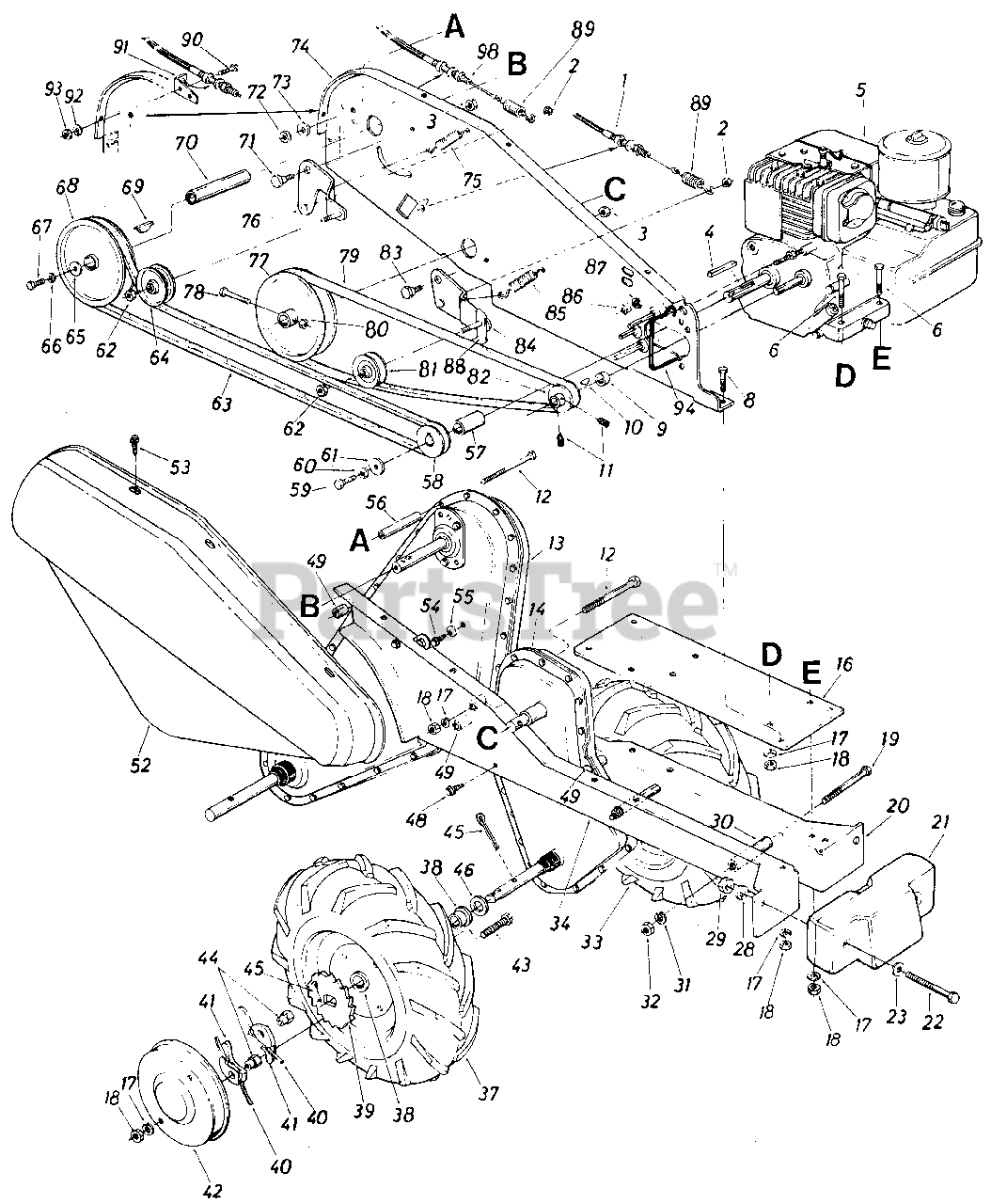

Rotary Tiller Part 2 Parts Diagram

  • Title

1

Cub Cadet 746-0484

CONTROL-CLUTCH
(Superseded to 946-0484)

Note: (Wheels)

$66.99

$

In Stock, Qty 10

0

2

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet 712-0266

NUT-HEX CENTER L-JAM
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 714-0122

KEY-SQ 3/16 X .75

$3.99

$

In Stock, Qty 20+

0

5

Note: Engine

$

$

Not available

6

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 711-0494

SPACER

$

$

Not available

10

Cub Cadet 714-0131

KEY-HI-PRO #5-1/8X5/8 DIA

$

$

Not available

11

Cub Cadet 710-0938

SCREW-SET 1/4-28 X .25

$

$

Not available

12

Cub Cadet 710-0189

SCREW-HEX 5/16-18 X 3.00

$6.49

$

In Stock, Qty 5

0

13

Cub Cadet 14981

CHAIN CASE ASSY-COMP

Note: Tines

Variations

Cub Cadet 14981-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 14963

CHAIN CASE ASSY-WHL

$

$

Currently unavailable

16

Cub Cadet 14973

PLATE-MTG-ENG

Note: Color Code 499

Variations

Cub Cadet 14973-0637

PLATE-MTG- - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0830

SCREW-HEX 3/8-24 X 3.0 LG

$

$

Not available

20

Cub Cadet 14975

RAIL-FRAME-LH

Variations

Cub Cadet 14975-0637

RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 723-0340

COUNTERWEIGHT

$

$

Not available

22

Cub Cadet 710-0786

SCREW-HEX 1/2-13 X 4.0

$16.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0326

WASHER-FL

$4.49

$

In Stock, only 2 left!

0

28

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.49

$

In Stock, Qty 6

0

29

Cub Cadet 712-0206

NUT-HEX 1/2-13

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 750-0579

SPACER

$

$

Currently unavailable

31

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0241

NUT-HEX 3/8-24

$4.49

$

In Stock, Qty 13

0

33

Cub Cadet 734-1129

WHEEL ASSY W/TIRE-LH

$

$

Currently unavailable

34

Cub Cadet 14974

RAIL-FRAME-RH

Variations

Cub Cadet 14974-0637

RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 734-1130

WHEEL ASSY W/TIRE-RH

$

$

Currently unavailable

38

Cub Cadet 741-0227

BEARING-FLANGE

$11.99

$

In Stock, Qty 20+

0

39

Cub Cadet 748-0292

RATCHET

$

$

Not available

40

Cub Cadet 10622

SPRING-NYLON
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

41

Cub Cadet 748-0291

PAWL
(Superseded to 948-0291A)

$14.99

$

In Stock, only 3 left!

0

42

Cub Cadet 14967

COVER-WHEEL

$

$

Not available

43

Cub Cadet 710-0874

SCREW-HEX 5/16-24 X 1.25

$6.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 712-0329

NUT-HEX 5/16-18 SPEC

$

$

Not available

45

Cub Cadet 714-0470

PIN-COTTER-1/8 DIA X 1.25

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0214

WASHER-FL-.885 ID X 1.37 OD X .060

$

$

Not available

48

Cub Cadet 710-0600

SCREW-HEX WASH SF TAPP

$3.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-0470

SPACER

$6.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 14980

COVER-BELT

Note: Color Code 499

$

$

Not available

53

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0653

SCREW-TAP 1/4-20 X .38

$4.49

$

In Stock, Qty 7

0

55

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 750-0219

SPACER

$

$

Currently unavailable

57

Cub Cadet 750-0442

SPACER

$

$

Not available

58

Cub Cadet 756-0396

PULLEY

$

$

Not available

59

Cub Cadet 710-0117

SCREW-HEX SPECIAL 5/16-24X1.0
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

Cub Cadet 736-0343

WASHER-5/16 X 1.25 X 1.27

$4.49

$

In Stock, Qty 7

0

62

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, Qty 6

0

63

Cub Cadet 754-0195

BELT-V 1/2 X 54
(Superseded to 954-0195A)

$54.99

$

In Stock, only 4 left!

0

64

Cub Cadet 756-0405

PULLEY-IDLER

$71.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 736-0176

WASHER-FL

$4.99

$

In Stock, only 4 left!

0

66

Cub Cadet 736-0349

WASHER-FL .630 X 1.00 X .020

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 710-0412

SCREW-HEX 1/4-28 X .75

$5.99

$

In Stock, Qty 9

0

68

Cub Cadet 756-0389

PULLEY
(Superseded to 756-0389A)

$

$

Not available

69

Cub Cadet 714-0388

KEY-3/16 X 5/8
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

70

Cub Cadet 750-0472

SPACER

$

$

Not available

71

Cub Cadet 738-0183

SCREW-SHLD
(Superseded to 938-0183)

$

$

Not available

72

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

74

Cub Cadet 14991

PLATE ASSY-SIDE

$

$

Not available

75

Cub Cadet 732-0445

SPRING-EXTENSION

$8.99

$

In Stock, only 1 left!

0

76

Cub Cadet 14971

BRACKET ASSY-TINE

Note: Color Code 499

$

$

Currently unavailable

77

Cub Cadet 756-0387

PULLEY

$

$

Currently unavailable

78

Cub Cadet 710-0698

SCREW-HEX

$

$

Not available

79

Cub Cadet 754-0109

BELT-V 1/2 X 43
(Superseded to 954-0109)

$42.99

$

In Stock, Qty 6

0

80

Cub Cadet 712-0117

NUT-HEX CENTER L-1/4-28
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

81

Cub Cadet 756-0116

PULLEY-V-BELT IDLER
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

82

Cub Cadet 756-0386

PULLEY

$

$

Not available

83

Cub Cadet 738-0147

SCREW-SHLD .500 DIA X .170

$

$

Not available

84

Cub Cadet 14969

BRACKET ASSY-WHL

$

$

Not available

85

Cub Cadet 732-0445

SPRING-EXTENSION

$8.99

$

In Stock, only 1 left!

0

86

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

87

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

88

Cub Cadet 15399

BRACKET-BELT GUARD

$

$

Not available

89

Cub Cadet 732-0387

SPRING-EXTENSION

$

$

Not available

90

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

Note: (405)

$4.49

$

In Stock, Qty 20+

0

91

Cub Cadet 15093

BRACKET-CLUTCH

Note: (405)

$

$

Not available

92

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

Note: (405)

$4.99

$

In Stock, Qty 20+

0

93

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

Note: (405)

$4.49

$

In Stock, Qty 20+

0

94

Cub Cadet 747-0507

GUARD-BELT

$

$

Currently unavailable

98

Cub Cadet ~746-0408

Note: Clutch Control Cable (Tines) (404)

$

$

Currently unavailable

Cub Cadet 746-0535

CABLE-CLUTCH
(Superseded to 946-0535)

Note: (Tines) (405)

$69.99

$

In Stock, Qty 10

0
