404 (215-404-100) - Cub Cadet Rear-Tine Tiller (1985) Rotary Tiller Part 1 Parts Diagram

Rear-Tine Tiller

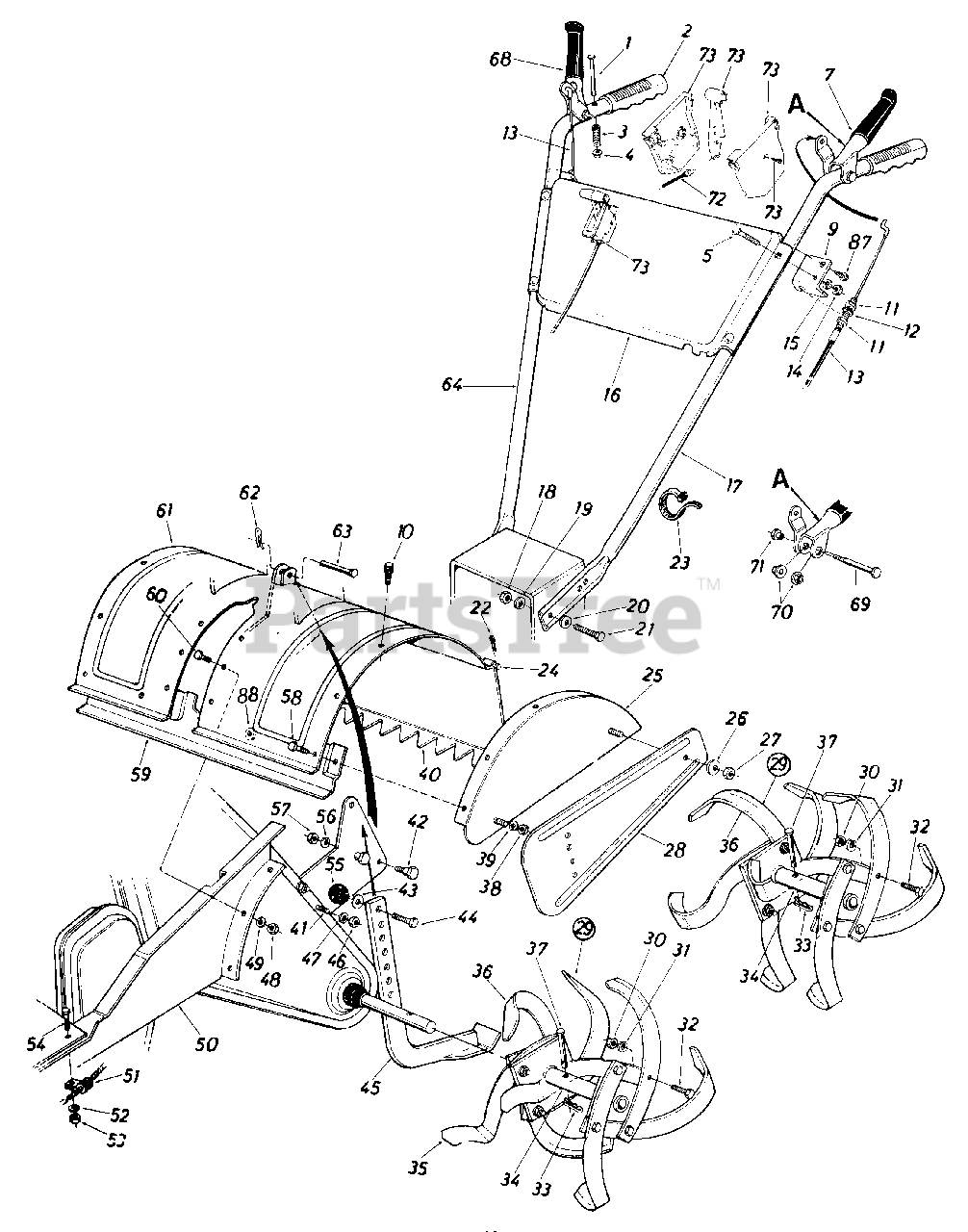

Rotary Tiller Part 1 Parts Diagram

  • Title

1

Cub Cadet 711-0750

PIN-CLEVIS-1/4 DIA X 2.25 LG

$

$

Currently unavailable

2

Cub Cadet 720-0180

GRIP-BLACK
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

3

Cub Cadet 732-0442

SPRING-COMPRESSION

$

$

Not available

4

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0458

BOLT-CARRIAGE 5/16-18 X 1.75

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet 784-0031

GRIP ASSY-CLUTCH-LH

Note: (Tines)

$

$

Not available

9

Cub Cadet 15093

BRACKET-CLUTCH

$

$

Not available

10

Cub Cadet 710-0607

SCREW-TAP 5/16-18X.62

$6.99

$

In Stock, Qty 11

0

11

Cub Cadet 712-0256

NUT-HEX JAM 5/16-24

$

$

Not available

12

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 746-0484

CONTROL-CLUTCH
(Superseded to 946-0484)

$66.99

$

In Stock, Qty 10

0

14

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 784-0036

PANEL-HANDLE

$

$

Not available

17

Cub Cadet 749-0639

HANDLE-LH

$

$

Currently unavailable

18

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

19

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0253

SCREW-HEX 3/8-16 X 1.00
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, Qty 12

0

23

Cub Cadet 725-0157

TIE-CABLE

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 747-0432

ROD-TILLER FLAP

$13.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 14939

DECK ASSEMBLY-UPR

Note: (Not Shown)

$

$

Currently unavailable

25

Cub Cadet 14990

COVER ASSY-END-RH

Note: (Not Shown)

Variations

Cub Cadet 14990-0637

COVER ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14990-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

26

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 15390

SHIELD-SIDE

Note: Color Code 499

Variations

Cub Cadet 15390-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 15390-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 15390-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 15390-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 15390-0637

SHIELD-SIDE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 15390-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

Cub Cadet 15390-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 15390-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 15390-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

29

Cub Cadet 15397

TINE ASSY-LH-COMP

Note: (Not Shown)

Variations

Cub Cadet 15397-0637

TINE ASSEMBLY-L - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 15398

TINE ASSY-RH-COMP

Note: (Not Shown)

Variations

Cub Cadet 15398-0637

TINE ASSEMBLY (RH)-COMP - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 712-0241

NUT-HEX 3/8-24

$4.49

$

In Stock, Qty 13

0

31

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-0191

SCREW 3/8-24X1.25 GR5

$4.99

$

In Stock, Qty 9

0

33

Cub Cadet 714-0149

PIN-COTTER
(Superseded to 914-0149B)

$

$

Not available

34

Cub Cadet 14978

ADAPTER ASSY-TINE

Variations

Cub Cadet 14978-0637

ADAPTER AS - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 742-0106

TINE-RH-12IN-BOLO
(Superseded to 1916946001)

Variations

Cub Cadet 742-0106-0637

Tiller Bolo Tine, 12" RH 3-Hole - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 742-0105

TINE-LH-12IN-BOLO

Variations

Cub Cadet 742-0105-0637

TINE 12 L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 711-0415

PIN-CLEVIS 3/8 X 1.620

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 14979

FLAP-HINGE
(Superseded to 786-0113)

Variations

Cub Cadet 14979-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet 14979-0638

USE 786-0113A-0638 SHIELD-REA - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

Cub Cadet 14979-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 14979-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 14979-0665

USE 786-0113A-0665 SHIELD-REA - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 14979-0606

REAR TINE SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 14979-0662

REAR TINE SHIELD - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-0736

BOLT-HEX 5/16-18X1

$

$

Not available

42

Cub Cadet 738-0507

SCREW-SHLD R
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0117

WASHER-FL-.385 ID X .62 OD X .033
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-0216

SCREW-HEX 3/8-16 X .75

$4.49

$

In Stock, Qty 15

0

45

Cub Cadet 14992

BAR ASSY-DEPTH
(Superseded to 786-0120-0637)

Variations

Cub Cadet 14992-0637

Depth Bar Assembly - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

46

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 14975

RAIL-FRAME-LH

Note: Color Code 499

Variations

Cub Cadet 14975-0637

RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

51

Cub Cadet 726-0175

CLAMP

$

$

Not available

52

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 720-0165

KNOB-BALL 1-3/8 " DIA.
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

56

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

58

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 15393

BRACKET-REINF

Variations

Cub Cadet 15393-0637

BRACKET-REINF POWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

60

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 14987

SHIELD ASSY-TINE

$

$

Currently unavailable

62

Cub Cadet 714-0149

PIN-COTTER
(Superseded to 914-0149B)

$

$

Not available

63

Cub Cadet 711-0415

PIN-CLEVIS 3/8 X 1.620

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 749-0638

HANDLE-RH

Variations

Cub Cadet 749-0638-0637

HANDLE (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

68

Cub Cadet 784-0029

GRIP ASSY-CLUTCH-RH

Note: (Wheels)

$

$

Not available

69

Cub Cadet 738-0560

SCREW-SHLD .374 DIA X1.530
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

70

Cub Cadet 741-0402

BEARING-FLANGE

$

$

Not available

71

Cub Cadet 738-0561

NUT-SHLD
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 831-0692

CONTROL-THROTTLE
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 831-0692

CONTROL-THROTTLE
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

88

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0
