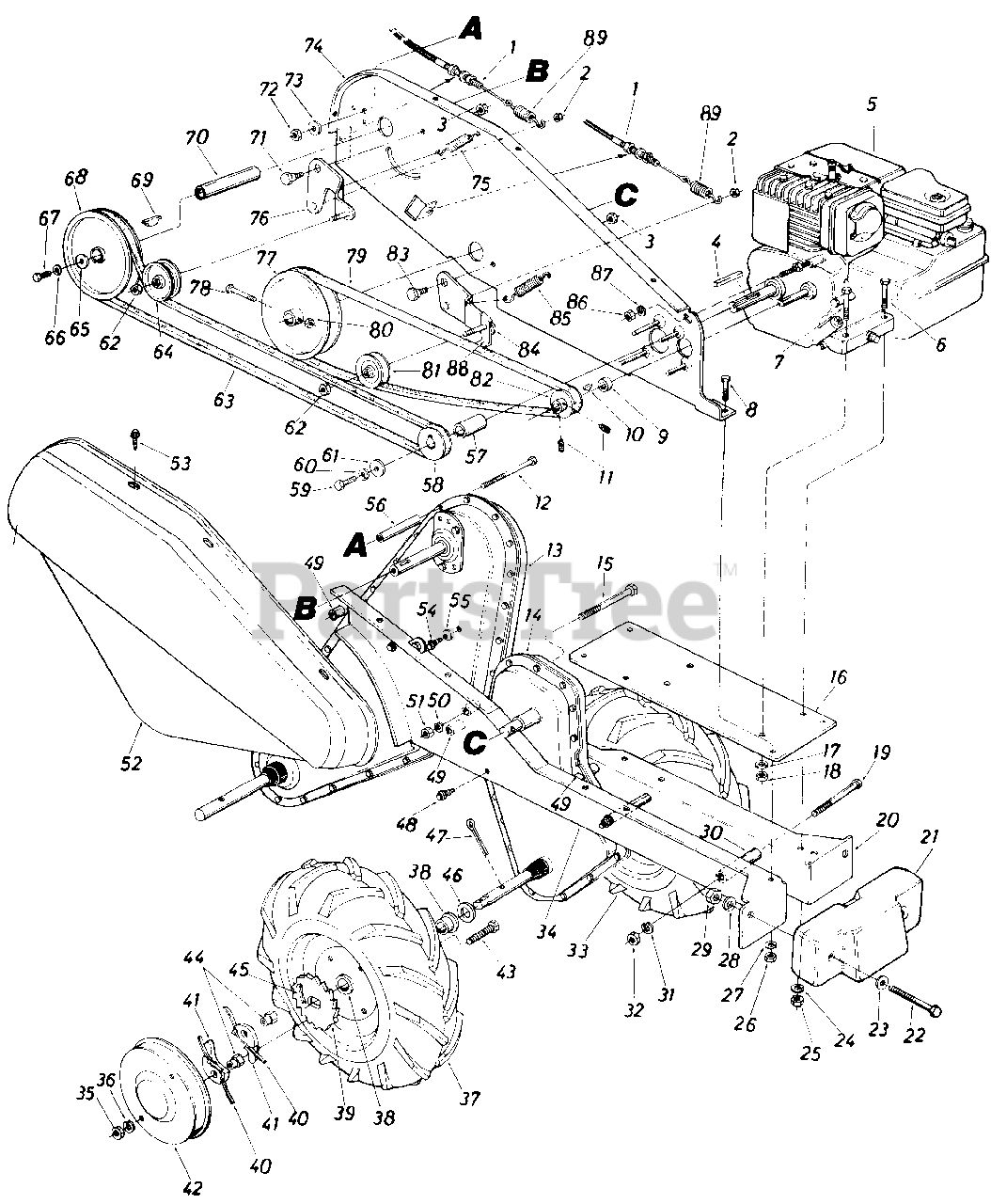

404 (214-404-100) - Cub Cadet Rear-Tine Tiller (1984) Idler Bracket, Tines And Wheels Parts Diagram

Rear-Tine Tiller

Idler Bracket, Tines And Wheels Parts Diagram

  • Title

1

Cub Cadet 746-0484

Clutch Control Cable
(Superseded to 946-0484)

$66.99

$

In Stock, Qty 10

0

2

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet 712-0266

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

4

Cub Cadet 714-0122

Sq. Key 3/16" Dia. x .75

$3.99

$

In Stock, Qty 20+

0

5

Engine

$

$

Not available

6

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 711-0494

Spacer .51" I.D. x 3/4" O.D. x .39" Lg.

$

$

Not available

10

Cub Cadet 714-0131

Hi-Pro Key #5 Woodruff

$

$

Not available

11

Cub Cadet 710-0938

Set Scr. 1/4-28 x .25" Lg.

$

$

Not available

12

Cub Cadet 710-0189

Hex Bolt 5/16-18 x 3.0" Lg.

$6.49

$

In Stock, Qty 5

0

13

Cub Cadet 14981

Chain Case Ass'y. Comp.-Tines

Variations

Cub Cadet 14981-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 14963

Chain Case Ass'y. Comp.-Wheels

$

$

Currently unavailable

15

Cub Cadet 710-0189

Hex Bolt 5/16-18 x 3.0" Lg.

$6.49

$

In Stock, Qty 5

0

16

Cub Cadet 14973

Engine Mounting Plate

Note: Color Code - 499

Variations

Cub Cadet 14973-0637

PLATE-MTG- - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0830

Hex Bolt 3/8-24 x 3.0" Lg.

$

$

Not available

20

Cub Cadet 14975

Frame Rail - L.H.

Variations

Cub Cadet 14975-0637

RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 723-0340

Counter Weight

$

$

Not available

22

Cub Cadet 710-0786

Hex Bolt 1/2-13 x 4.0" Lg.

$16.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0326

Fl-Wash. 1/2 I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

29

Cub Cadet 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 750-0579

Spacer 3/8" I.D. x 5/8" O.D. x 2.18" Lg.

$

$

Currently unavailable

31

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

33

Cub Cadet 734-1129

Comp. Wheel Ass'y. - L.H.

$

$

Currently unavailable

34

Cub Cadet 14974

Frame Rail - R.H.

Variations

Cub Cadet 14974-0637

RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

36

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 734-1130

Comp. Wheel Ass'y. - R.H.

$

$

Currently unavailable

38

Cub Cadet 741-0227

Flange Brg. 7/8" I.D. x 1.12" Lg.

$11.99

$

In Stock, Qty 20+

0

39

Cub Cadet 748-0292

Ratchet Wheel

$

$

Not available

40

Cub Cadet 10622

Nylon Spring
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

41

Cub Cadet 748-0291

Pawl .44" I.D.
(Superseded to 948-0291A)

$14.99

$

In Stock, only 3 left!

0

42

Cub Cadet 14967

Wheel Cover

$

$

Not available

43

Cub Cadet 710-0874

Hex Bolt 5/16-24 x 1.25" Lg.

$6.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 712-0329

Special Hex Nut 5/16-24 Thd.

$

$

Not available

45

Cub Cadet 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0214

Fl-Wash. 7/8" I.D. x 1-3/8" O.D. x .06

$

$

Not available

47

Cub Cadet 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 750-0470

Spacer 5/16" I.D. x 16 Ga. x .96" Lg.

$6.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 14980

Belt Cover

Note: Color Code - 499

$

$

Not available

53

Cub Cadet 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0653

Hex Wash. S-Tap Scr. x 3/8" Lg.

$4.49

$

In Stock, Qty 8

0

55

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 750-0219

Spacer 3/8" I.D. x 1/2" O.D. x 2.0" Lg.

$

$

Currently unavailable

57

Cub Cadet 750-0442

Spacer 3/4" I.D. x 1.12" O.D. x 1.56" Lg

$

$

Not available

58

Cub Cadet 756-0396

1/2" "V"-4L Pulley 3/4" I.D. x 2.59" O.D.

$

$

Not available

59

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

Cub Cadet 736-0343

Fl-Wash. 5/16" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

62

Cub Cadet 712-0116

Hex L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

63

Cub Cadet 754-0195

"V"-Belt 1/2" x 54" Lg.
(Superseded to 954-0195A)

$54.99

$

In Stock, only 4 left!

0

64

Cub Cadet 756-0405

Fl-Idler Pulley 3.75" O.D. x 3/8" I.D.

$71.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 736-0176

Fl-Wash. .25" I.D. x .93" O.D. x .120

$4.99

$

In Stock, only 4 left!

0

66

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

67

Cub Cadet 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

68

Cub Cadet 756-0389

Split Pulley 6" Dia. x 5/8" I.D
(Superseded to 756-0389A)

$

$

Not available

69

Cub Cadet 714-0388

Hi-Pro Key
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

70

Cub Cadet 750-0472

Spacer

$

$

Not available

71

Cub Cadet 738-0183

Shld. Bolt 1/2" Dia. x .210" Lg.
(Superseded to 938-0183)

$

$

Not available

72

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 14991

Side Plate Ass'y.

$

$

Not available

75

Cub Cadet 732-0445

Ext. Spring .50" O.D. x 1.55" Lg.

$8.99

$

In Stock, only 2 left!

0

76

Cub Cadet 14971

Idler Bracket Ass'y. - Tines

$

$

Currently unavailable

77

Cub Cadet 756-0387

Pulley 6" Dia. x 5/8" I.D.

$

$

Currently unavailable

78

Cub Cadet 710-0698

Hex Bolt 1/4-28 x 1.50" Lg.

$

$

Not available

79

Cub Cadet 754-0109

"V"-Belt 1/2" x 43" Lg.
(Superseded to 954-0109)

$42.99

$

In Stock, Qty 6

0

80

Cub Cadet 712-0117

Hex Cent. L.-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

81

Cub Cadet 756-0166

"V"-Idler Pulley 2-5/8" O.D.
(Superseded to 756-1035A)

$34.99

$

In Stock, only 3 left!

0

82

Cub Cadet 756-0386

1/2" "V"-Pulley 2 1/4" O.D. x .50" I.D.

$

$

Not available

83

Cub Cadet 738-0147

Shld. Bolt 1/2" Dia. x .160" Lg.

$

$

Not available

84

Cub Cadet 14969

Idler Bracket Ass'y - Wheels

$

$

Not available

85

Cub Cadet 732-0444

Ext. Spring .50" O.D. x 1.97" Lg.
(Superseded to 732-0445)

$8.99

$

In Stock, only 2 left!

0

86

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

87

Cub Cadet 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

88

Cub Cadet 15399

Belt Keeper Ass'y.

$

$

Not available

89

Cub Cadet 732-0387

Ext. Spring

$

$

Not available
