404 (214-404-100) - Cub Cadet Rear-Tine Tiller (1984) Chain Case (Wheels) Parts Diagram

Rear-Tine Tiller

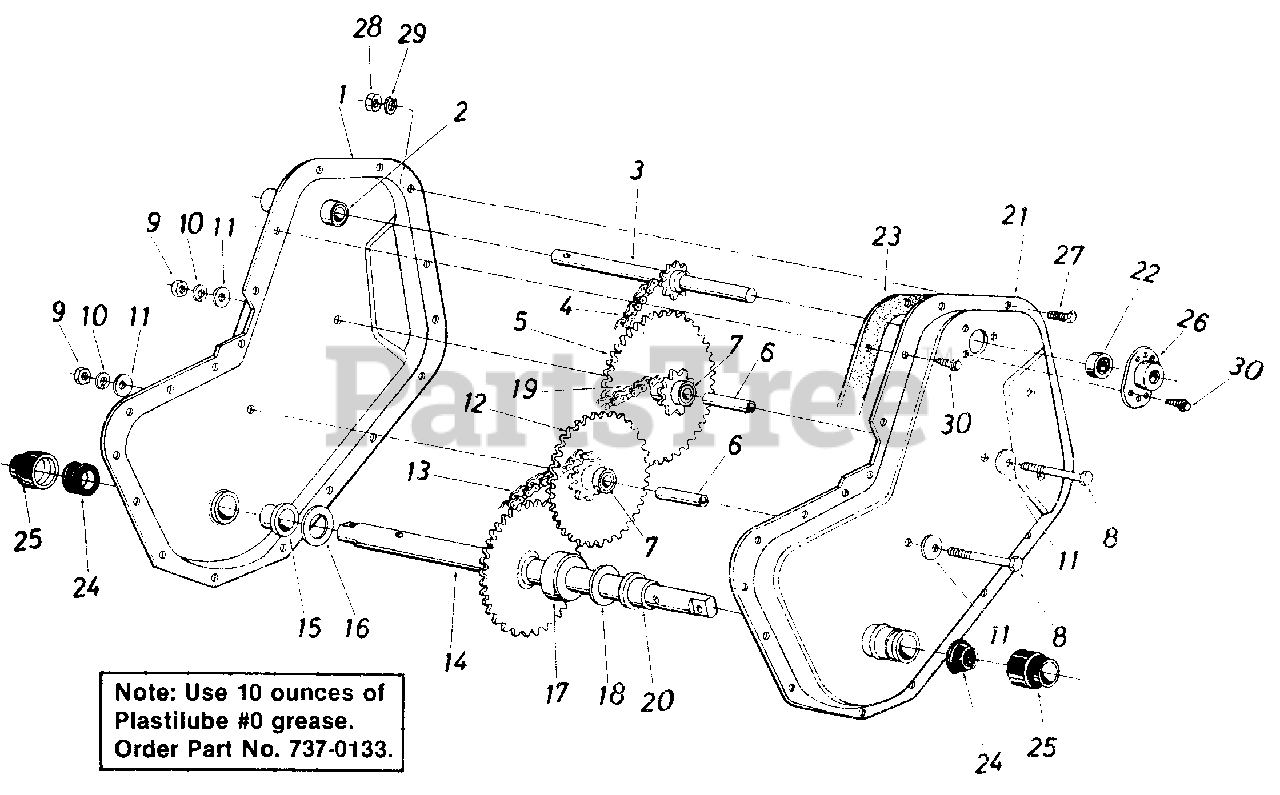

Chain Case (Wheels) Parts Diagram

  • Title

1

Cub Cadet 14962

Chain Case Half Ass'y. - R.H.

$

$

Not available

2

Cub Cadet 748-0154

Bearing 5/8" I.D. x .813" O.D. x 1.31" Lg.

$

$

Not available

3

Cub Cadet 14960

Input Shaft Ass'y.

$

$

Not available

4

Cub Cadet 713-0325

Chain #35 - 3/8" Pitch x 44 Links

$

$

Not available

5

Cub Cadet 713-0316

Sprocket and Hub Ass'y.

$

$

Currently unavailable

6

Cub Cadet 750-0351

Bearing Inner Axle

$

$

Not available

7

Cub Cadet 741-0228

Sleeve Brg. 5/8" I.D. x 3/4" O.D. x 1.50

$

$

Not available

8

Cub Cadet 710-0369

Hex Bolt 3/8-24 x 2.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0219

Bell-Wash. .41" I.D. x 1.13" O.D. x .03
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 713-0330

Sprocket & Hub Ass'y. 9T-22T

$

$

Not available

13

Cub Cadet 713-0326

#420 Chain 1/2 Pitch x 28 Links Endless
(Superseded to 913-0326)

$

$

Not available

14

Cub Cadet 14968

Wheel Shaft Ass'y.

$

$

Currently unavailable

15

Cub Cadet 741-0227

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0265

Fl-Wash. .88" I.D. x 1.5" O.D. x .03

$

$

Not available

17

Cub Cadet 750-0354

Spacer 7/8" I.D. x 1 3/4" O.D. x .68" Lg.
(Superseded to 750-0354A)

$

$

Not available

18

Cub Cadet 736-0265

Fl-Wash. .88" I.D. x 1.50" O.D. x .03

$

$

Not available

19

Cub Cadet 713-0267

#420 Chain 1/2" Pitch x 30 Links Endless

$

$

Not available

20

Cub Cadet 741-0227

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

21

Cub Cadet 15797

Chain Case Half Ass'y. - L.H.

Note: Code N

Variations

Cub Cadet 15797-0637

HOUSING-WHEEL (LH)-CPOWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 741-0155

Bearing
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

23

Cub Cadet 721-0156

Gasket
(Superseded to 921-0156A)

$

$

Not available

24

Cub Cadet 721-0157

Seal

$

$

Not available

25

Cub Cadet 731-0486

Dust Cup

$

$

Not available

26

Cub Cadet 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

27

Cub Cadet 710-0195

Hex Bolt 1/4-28 x 5/8" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

28

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

Cub Cadet 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 737-0133

Grease - Plastilube #0 14 oz
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
