404 (194-404-100) - Cub Cadet Sleeve Hitch (1984) Sleeve Hitch Parts Diagram

Sleeve Hitch

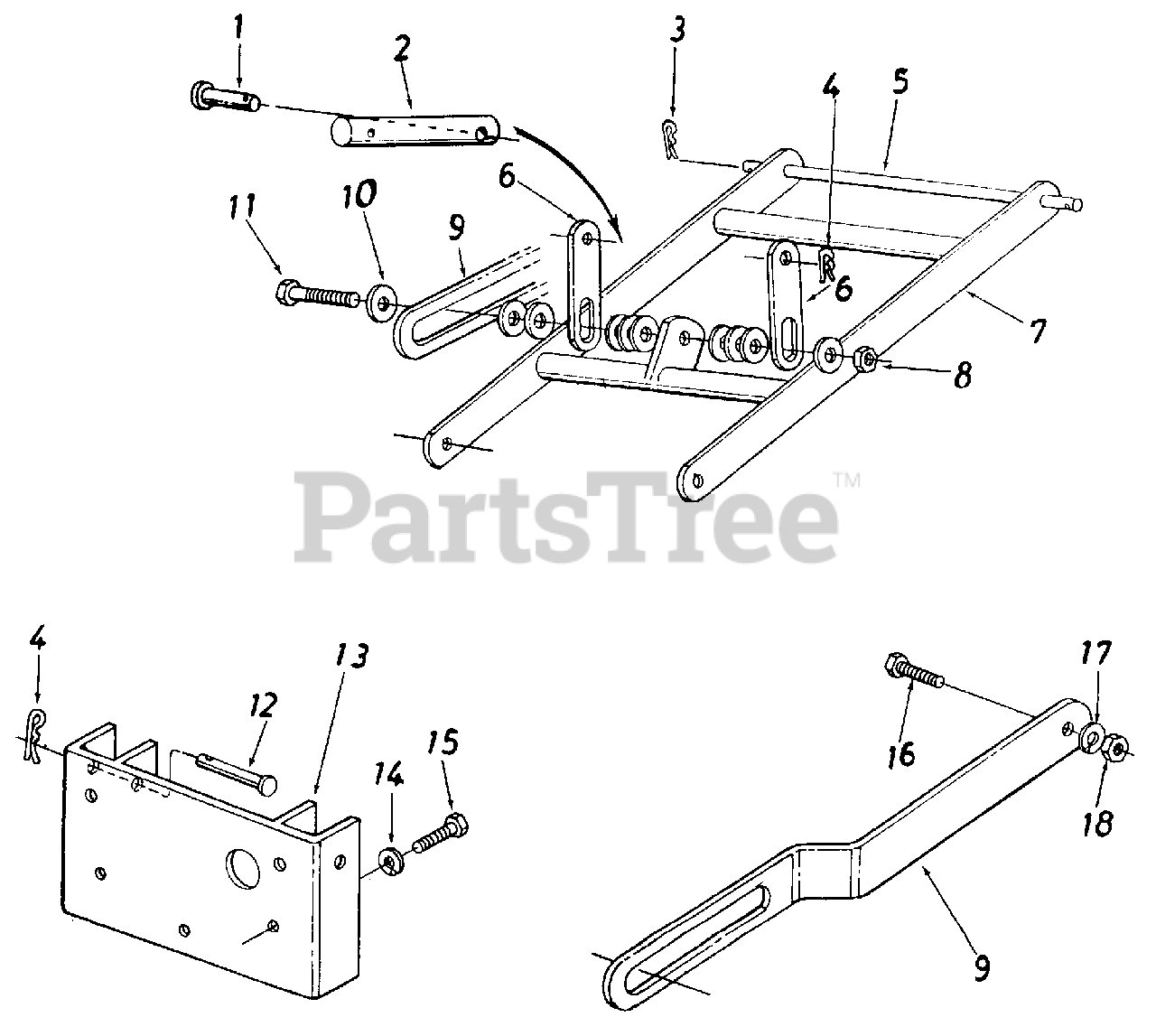

Sleeve Hitch Parts Diagram

  • Title

1

Cub Cadet 711-3030

Clevis Pin 1/2" Dia. x 2.17" Lg.

$

$

Not available

2

Cub Cadet 738-3036

Hitch Shaft

$

$

Not available

3

Cub Cadet 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 6

0

4

Cub Cadet 714-0101

Hair Pin Cotter

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 738-0482

Hitch Rod

$

$

Not available

6

Cub Cadet 747-3090

Link

$

$

Currently unavailable

7

Cub Cadet 14883

Hitch Bar Ass'y.

$

$

Not available

8

Cub Cadet 712-0384

Hex L.-Nut 1/2-13 Thd.
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

9

Cub Cadet 14890

Stabilizer Link

$

$

Not available

10

Cub Cadet 736-0179

Fl.-Wash. 1/2" I.D. x .93" O.D.

Note: (10 Req'd)

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-3107

Hex Bolt 1/2-13 x 3" Lg.
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

12

Cub Cadet 711-0577

Clevis Pin 5/8" Dia. 3-1/16" Lg.

$

$

Not available

13

Cub Cadet 703-0690

Mounting Plate Ass'y.

$

$

Not available

14

Cub Cadet 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3005

Hex Bolt 3/8-16 x 1.25" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 738-0296

Shoulder Bolt 4.35" Dia. x .265

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0119

L.-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
