404 (190-404-100) - Cub Cadet Adapter for 400 with Sleeve Hitch att Sleeve Hitch Adapter Parts Diagram

Adapter for 400 with Sleeve Hitch

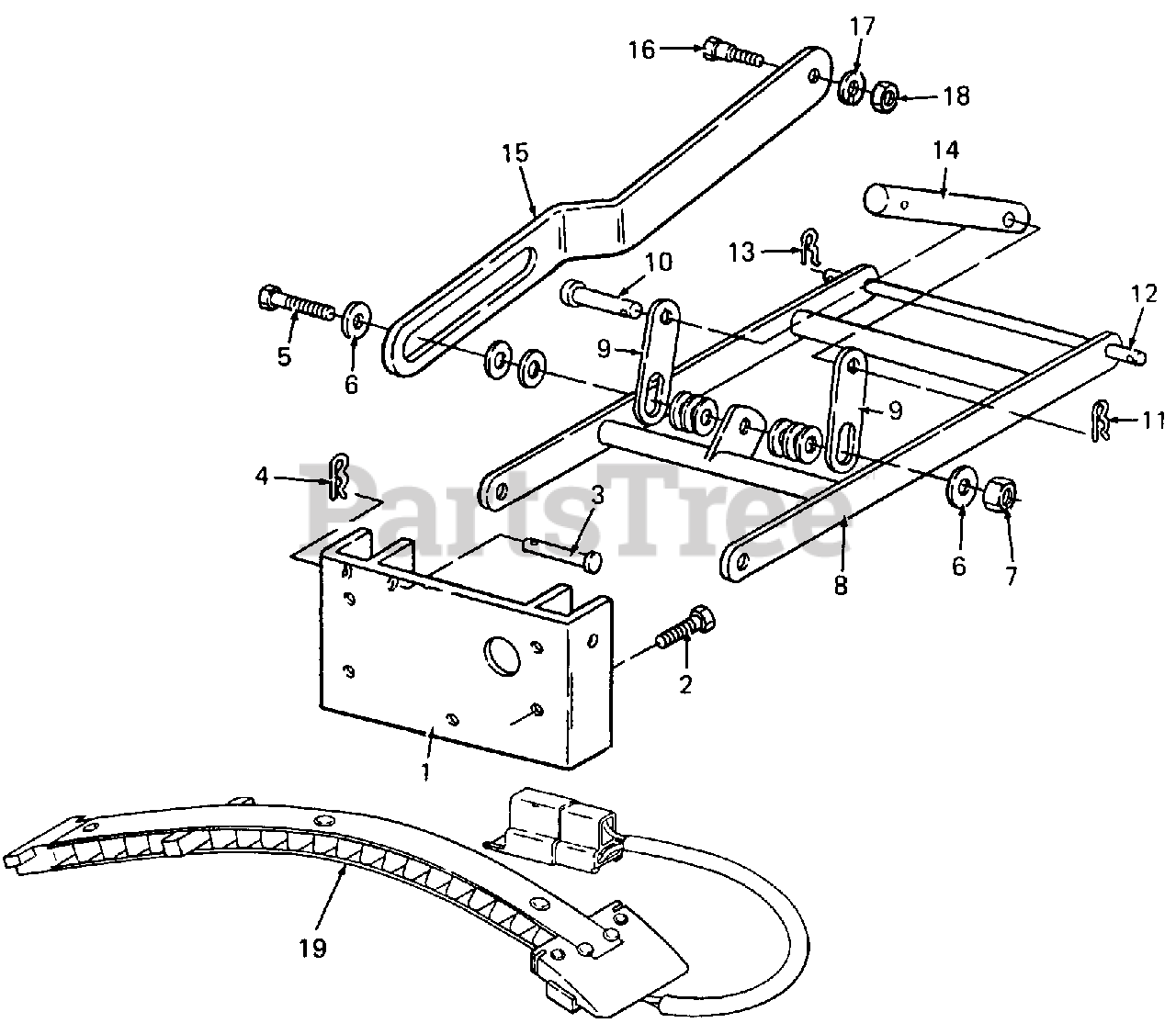

Sleeve Hitch Adapter Parts Diagram

  • Title

1

Cub Cadet 703-0690

Plate Assy, Mounting

$

$

Not available

2

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 9

0

3

Cub Cadet 711-0577

Pin, Clevis, 5/8 Dia X 3-1/16 Lg

$

$

Not available

4

Cub Cadet 714-0117

Pin, Internal Cotter, 5/8 Dia

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet 710-3107

Screw, Hex Cap, 1/2-13 X 3.0 Lg GR5
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

6

Cub Cadet 736-0179

Washer, Flat, .531 X 1.25 X .100 Thk

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-0384

Nut, Hex Center Lock, 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

8

Cub Cadet 14883

Bar Assy, Hitch

$

$

Not available

9

Cub Cadet 747-3090

Link

$

$

Currently unavailable

10

Cub Cadet 711-3030

Pin, Clevis, 1/2 Dia X 2.17 Lg

$

$

Not available

11

Cub Cadet 714-0101

Pin, Internal Cotter, 1/2 Dia

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet 738-0482

Rod, Hitch

$

$

Not available

13

Cub Cadet 714-0147

Pin, Hitch Clip

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet 738-3036

Shaft, Hitch

$

$

Not available

15

Cub Cadet 14890

Link, Stabilizer

$

$

Not available

16

Cub Cadet 738-0296

Bolt, Shoulder

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0119

Washer, Flat, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 725-1287

Switch Assy, NC Beam Seat

$

$

Not available

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, only 2 left!

0
