40383x58C - Murray 40" Lawn Tractor (2001) Deck Assembly (part 1) Parts Diagram

40" Lawn Tractor

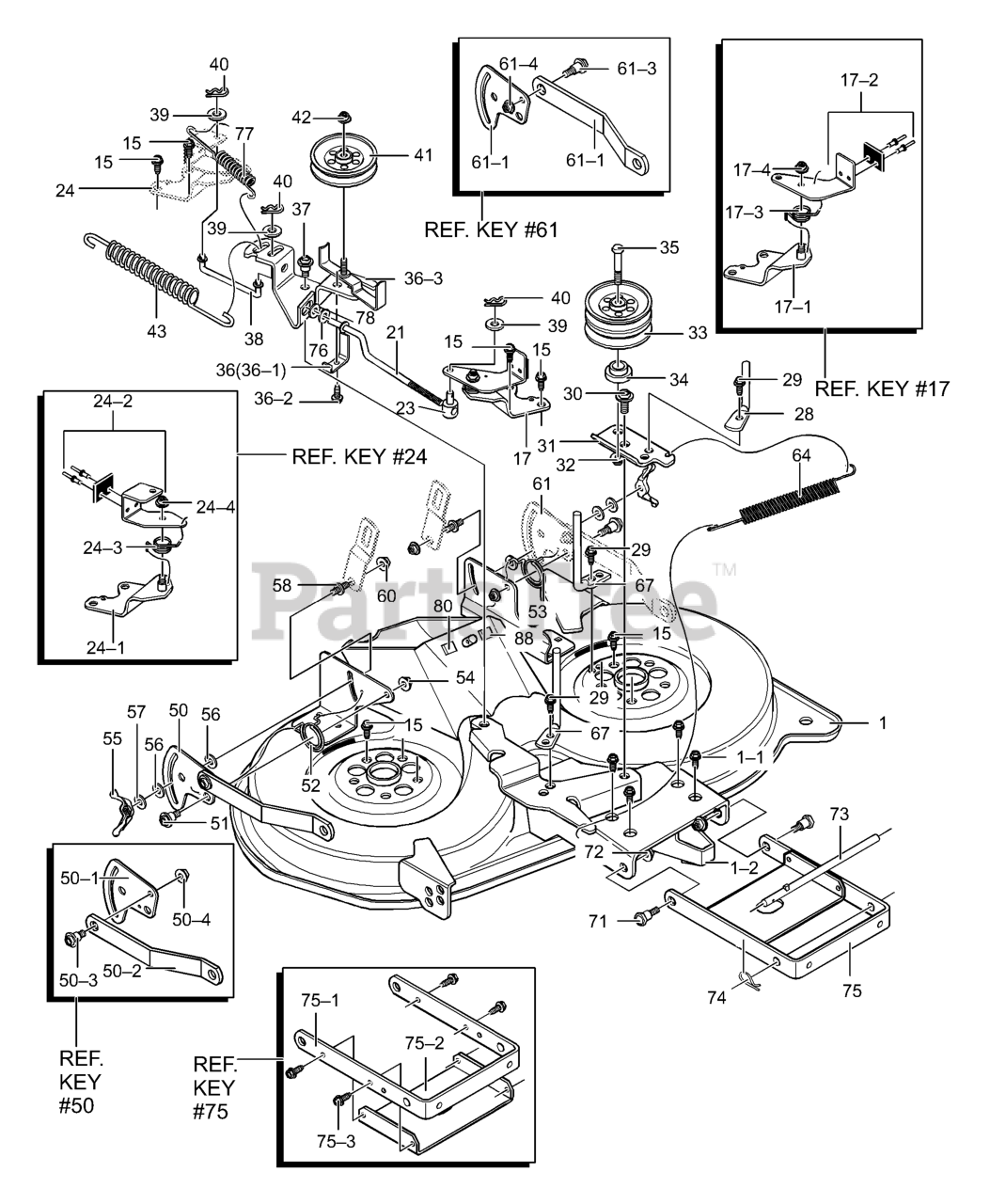

Deck Assembly (part 1) Parts Diagram

  • Title

1

Murray 690109-821

Housing, 40" Deck

$

$

Currently unavailable

1-1

UNKNOWN

$

$

Not available

1-2

UNKNOWN

$

$

Not available

15

UNKNOWN

$

$

Not available

17

Murray 94665-821

Brake Arm Assembly LH

$

$

Currently unavailable

17-1

Murray 94293

Brake Support Assembly LH
(Superseded to 94293GS)

$67.99

$

Usually ships in 2-12 days

0

17-2

Murray 94291

Brake Arm

$24.99

$

Usually ships in 2-12 days

0

17-3

Murray 710110

Spring, Torsion

$23.99

$

Usually ships in 2-12 days

0

17-4

Murray 710205

Nut, 5/16-18

$14.99

$

In Stock, only 2 left!

0

21

Murray 690021

Link, Brake LH
(Superseded to 799063)

$91.99

$

In Stock, only 4 left!

0

23

Murray 711591

Nut, Adjusting

$335.99

$

Usually ships in 2-12 days

0

24

Murray 94664-821

Brake Arm Assembly RH

$

$

Currently unavailable

24-1

Murray 94294

Brake Support RH
(Superseded to 94294GS)

$15.99

$

Usually ships in 2-12 days

0

24-2

Murray 94292

Brake Arm RH
(Superseded to 690327)

$4.99

$

Usually ships in 2-12 days

0

24-3

Murray 710077

Spring, Torsion

$

$

Currently unavailable

24-4

Murray 710205

Nut, 5/16-18

$14.99

$

In Stock, only 2 left!

0

28

Murray 711912MA

Belt Guide

$34.99

$

Usually ships in 2-12 days

0

29

Murray 780055MA

Screw, 5/16-18 x 0.50
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

30

Murray 711613MA

Bolt, Shoulder

$1.99

$

Usually ships in 2-12 days

0

31

Murray 94261-821

Arm, Double Idler

$

$

Currently unavailable

32

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

33

Murray 94279MA

Pulley, Idler Double Vee

$

$

Not available

34

Murray 94269MA

Spacer

$6.99

$

Usually ships in 2-12 days

0

35

Murray 711915

Screw, 3/8-16 x 3.00

$

$

Currently unavailable

36

Murray 94973-821

Idler Arm Assembly

$

$

Currently unavailable

36-1

Murray 94312

Spring - Belt Guide
(Superseded to 94312GS)

$280.99

$

Usually ships in 2-12 days

0

36-2

Murray 710264

Screw, 1/4-20x.50

$

$

Not available

36-3

Murray 94298

Idler Arm
(Superseded to 690330)

$3.49

$

In Stock, only 2 left!

0

37

Murray 711613MA

Bolt, Shoulder

$1.99

$

Usually ships in 2-12 days

0

38

Murray 690023

Link, Brake RH

$28.99

$

In Stock, Qty 9

0

39

Murray 712480MA

Washer, Flat

$18.99

$

Usually ships in 2-12 days

0

40

Murray 711682MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

41

Murray 690024

Pulley, Idler

$27.99

$

Usually ships in 2-12 days

0

42

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

43

Murray 710234

Spring, Extension

$4.99

$

Usually ships in 2-12 days

0

50

Murray 690158-821

Assy, Plate,Rear Sus Bkt RH

$

$

Currently unavailable

50-1

Murray 94128

Plate-Suspension
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

50-2

Murray 94055

Suspension Bracket Rear

$

$

Currently unavailable

50-3

Murray 710095

Bolt, Shoulder

$4.99

$

Usually ships in 2-12 days

0

50-4

Murray 710140

Nut, 3/8-16

$10.99

$

Usually ships in 2-12 days

0

51

Murray 711611

Bolt, Shoulder

$1.49

$

Usually ships in 2-12 days

0

52

Murray 710112

Spring, Torsion RH

$11.99

$

In Stock, only 2 left!

0

53

Murray 710113

Spring, Torsion LH

$

$

Not available

54

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

55

Murray 711600

Wingnut, 5/16-18

$

$

Currently unavailable

56

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 8

0

57

Murray 711628MA

Washer
(Superseded to 017X45MA)

$

$

Not available

58

Murray 711595

Pin, Hanger

$

$

Not available

60

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

61

Murray 690159-821

Assy., Plate Rear Sus Brkt., LH

$

$

Currently unavailable

61-1

Murray 94128

Plate-Suspension
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

61-2

Murray 94055

Suspension Bracket, Rear

$

$

Currently unavailable

61-3

Murray 710095

Bolt, Shoulder

$4.99

$

Usually ships in 2-12 days

0

61-4

Murray 710140

Nut, 3/8-16

$10.99

$

Usually ships in 2-12 days

0

64

Murray 710233

Spring, Extension

$7.99

$

In Stock, only 1 left!

0

67

Murray 690030

Belt Guide

$

$

Currently unavailable

71

Murray 711611

Shoulder Bolt

$1.49

$

Usually ships in 2-12 days

0

72

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

73

Murray 95295

Rod, Hanger

$

$

Currently unavailable

74

Murray 711676

Hair Pin

$

$

Currently unavailable

75

Murray 690058-821

Assembly, Bracket & Stiffener

$18.99

$

Usually ships in 2-12 days

0

75-1

Murray 94058

Bracket, Front Suspension

$3.99

$

Usually ships in 2-12 days

0

75-2

Murray 95057

Stiffener

$

$

Currently unavailable

75-3

Murray 710079

Screw, 5/16-18 x 0.75

$

$

Not available

76

Murray 583409MA

Flatwasher

$4.49

$

Usually ships in 2-12 days

0

77

Murray 710658

Spring, Extension

$42.99

$

Usually ships in 2-12 days

0

78

Murray 712480MA

Washer, Flat

$18.99

$

Usually ships in 2-12 days

0

80

Murray 318197

Pad, Adhesive

$1.99

$

Usually ships in 2-12 days

0

88

UNKNOWN

$

$

Not available
