40383x58B - Murray 40" Lawn Tractor (2000) Grass Bagger Assembly Parts Diagram

40" Lawn Tractor

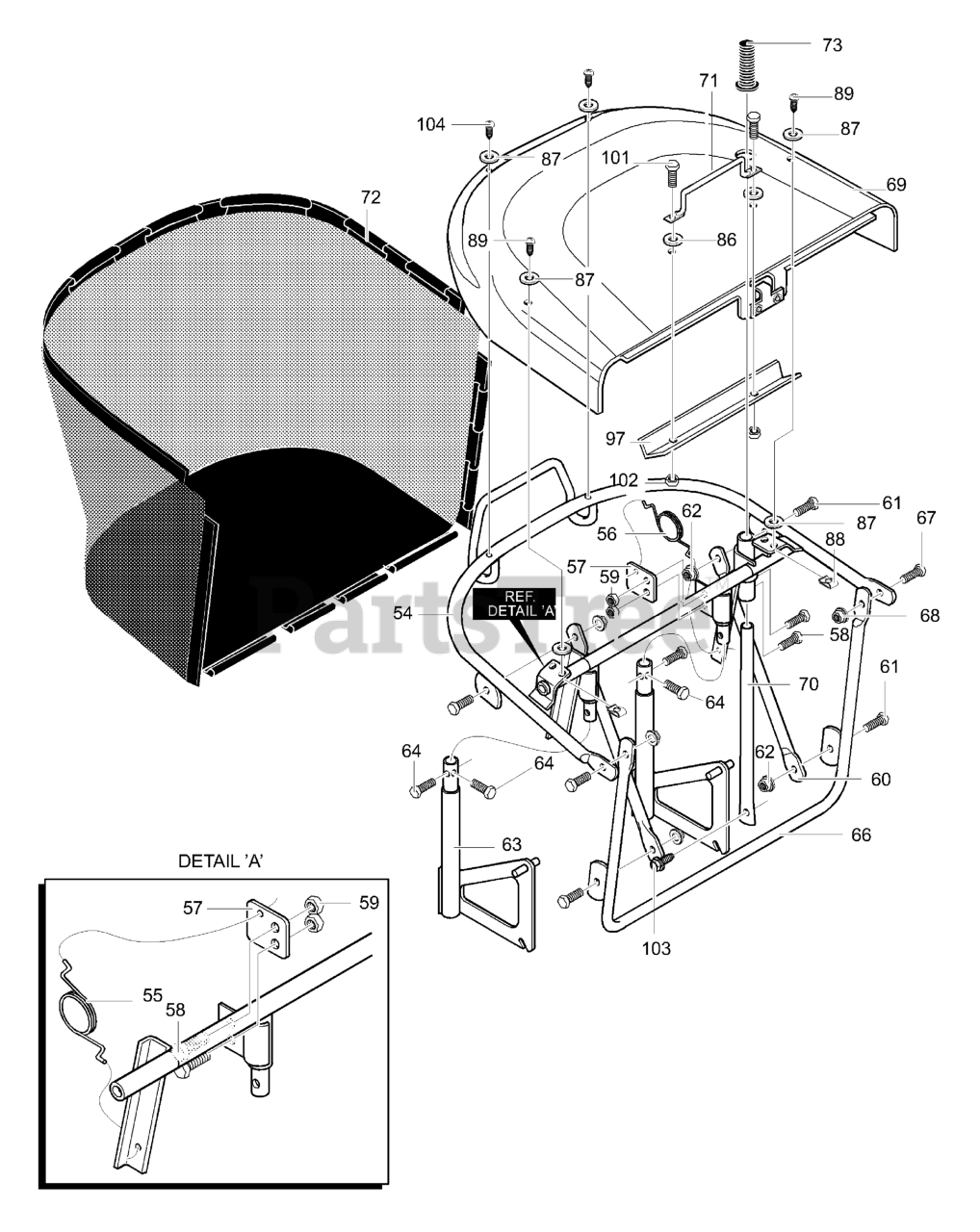

Grass Bagger Assembly Parts Diagram

  • Title
54

Murray 690044-821

Asm. Weld Upper Frame

$

$

Currently unavailable

55

Murray 690003

Spring, Torsion RH

$18.99

$

Usually ships in 2-12 days

0

56

Murray 690004

Spring, Torsion LH

$

$

Currently unavailable

57

Murray 95339-821

Bracket, Spring Collector

$

$

Currently unavailable

58

Murray 313686MA

Screw, 1/4-20x.50

$3.99

$

In Stock, only 2 left!

0

59

Murray 73826

Nut, 1/4-20

$4.99

$

In Stock, Qty 20+

0

60

Murray 94850-821

Brace, Frame Collector

$

$

Currently unavailable

61

Murray 711909

Screw, 1/4-20x.62

$

$

Currently unavailable

62

Murray 711632

Nut, 1/4-20

$

$

Currently unavailable

63

Murray 95343-821

Weld Asm. Support Collector

$

$

Currently unavailable

64

Murray 711653

Screw, 1/4-20x1.50

$1.99

$

Usually ships in 2-12 days

0

66

Murray 95349-821

Weld Asm. Front Frame Collect

$

$

Currently unavailable

67

Murray 711909

Screw, 1/4-20x.62

$

$

Currently unavailable

68

Murray 711632

Nut, 1/4-20

$

$

Currently unavailable

69

Murray 94908-860

Top Collector Assembly

$

$

Currently unavailable

70

Murray 690019

Handle, Dump Collector

$59.99

$

In Stock, only 1 left!

0

71

Murray 690506-821

Handle, Reba Collector

$

$

Currently unavailable

72

Murray 95389MA

Reba Collector Bag

$110.99

$

Usually ships in 2-12 days

0

73

Murray 94854MA

Rubber Grip

$5.49

$

Usually ships in 2-12 days

0

86

Murray 712129

Washer

$

$

Currently unavailable

87

Murray 711921

Washer

$

$

Currently unavailable

88

Murray 578107

Nut, 1/4-20 Tinnerman

$

$

Not available

89

Murray 711674MA

Screw, 1/4-20x.63

$3.49

$

Usually ships in 2-12 days

0

97

Murray 690010-821

Brace, Bagger

$

$

Currently unavailable

101

Murray 712068

Screw, 1/4-20x1.50

$10.99

$

Usually ships in 2-12 days

0

102

Murray 711632

Nut, 1/4-20

$

$

Currently unavailable

103

Murray 711741

Screw, #12x.50

$1.99

$

Usually ships in 2-12 days

0

104

Murray 711741

Screw, #12x.50

$1.99

$

Usually ships in 2-12 days

0
