40382x58 - Murray 40" Lawn Tractor (1999) Rear Chassis Assembly (part 3) Parts Diagram

40" Lawn Tractor

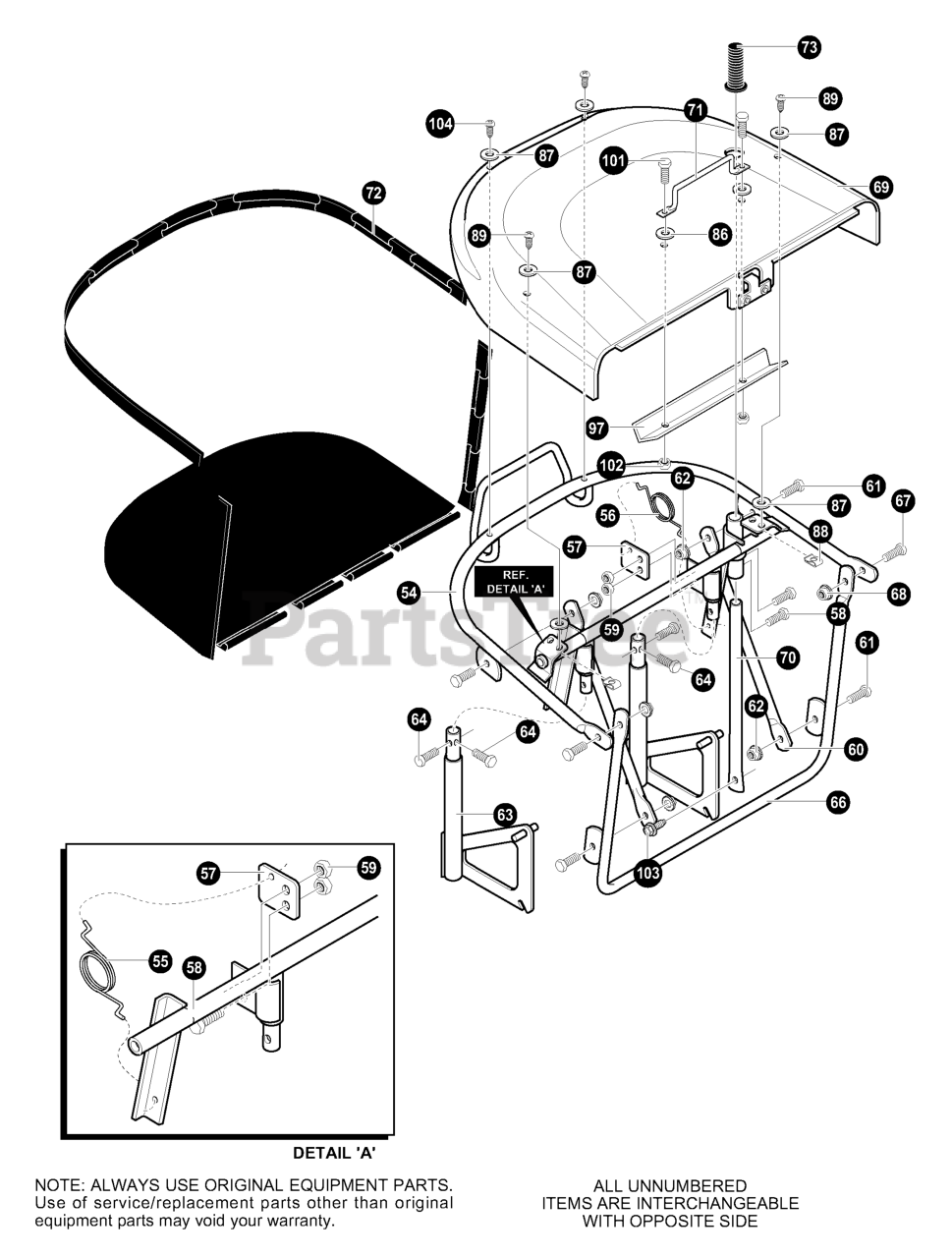

Rear Chassis Assembly (part 3) Parts Diagram

  • Title
54

Murray 690044-821

ASM. WELD UPPER FRAME

$

$

Currently unavailable

55

Murray 690003

SPRING, TORSION RH

$18.99

$

Usually ships in 2-12 days

0

56

Murray 690004

SPRING, TORSION LH

$

$

Currently unavailable

57

Murray 95339-821

BRACKET, SPRING COLLECTOR

$

$

Currently unavailable

58

Murray 313686MA

SCREW, 1/4-20X.50 HHC

$3.99

$

In Stock, only 2 left!

0

59

Murray 73826

NUT, 1/4-20 REGHEXCTRLK

$4.99

$

In Stock, Qty 20+

0

60

Murray 94850-821

BRACE, FRAME COLLECTOR

$

$

Currently unavailable

61

Murray 711909

SCREW, 1/4-20X.62 HHC

$

$

Currently unavailable

62

Murray 711632

NUT, 1/4-20 HEXNYL

$

$

Currently unavailable

63

Murray 95343-821

WELD ASM., SUPPORT COLLECTOR

$

$

Currently unavailable

64

Murray 711653

SCREW, 1/4-20X1.50

$1.99

$

Usually ships in 2-12 days

0

66

Murray 95349-821

WELD ASM., FRONT FRAME COLLECT.

$

$

Currently unavailable

67

Murray 711909

SCREW, 1/4-20X.62 HHC

$

$

Currently unavailable

68

Murray 711632

NUT, 1/4-20 HEXNYL

$

$

Currently unavailable

69

Murray 94908-898

TOP COLLECTOR ASM.

$

$

Currently unavailable

70

Murray 690019

HANDLE, DUMP COLLECTOR

$59.99

$

In Stock, only 1 left!

0

71

Murray 690506-821

HANDLE, REBA COLLECTOR

$

$

Currently unavailable

72

Murray 95389MA

REBA COLLECTOR BAG

$110.99

$

Usually ships in 2-12 days

0

73

Murray 94854MA

RUBBER GRIP

$5.49

$

Usually ships in 2-12 days

0

86

Murray 712129

WASHER, .281X1.25X.06

$

$

Currently unavailable

87

Murray 711921

WASHER, .328X1.06X.062

$

$

Currently unavailable

88

Murray 578107

NUT, 1/4-20 TINN U

$

$

Not available

89

Murray 711674MA

SCREW, 1/4-20X.63 PHPNHD

$3.49

$

Usually ships in 2-12 days

0

97

Murray 690010-821

BRACE, BAGGER

$

$

Currently unavailable

101

Murray 712068

SCREW 1/4-20X1.50 PHPNHD

$10.99

$

Usually ships in 2-12 days

0

102

Murray 711632

NUT, 1/4-20 HEXNYL

$

$

Currently unavailable

103

Murray 711741

SCREW, #12X.50 PHPNHTAP

$1.99

$

Usually ships in 2-12 days

0

104

Murray 711741

SCREW, #12X.50 PHPNHTAP

$1.99

$

Usually ships in 2-12 days

0
