40382x58 - Murray 40" Lawn Tractor (1999) Front Chassis Assembly Parts Diagram

40" Lawn Tractor

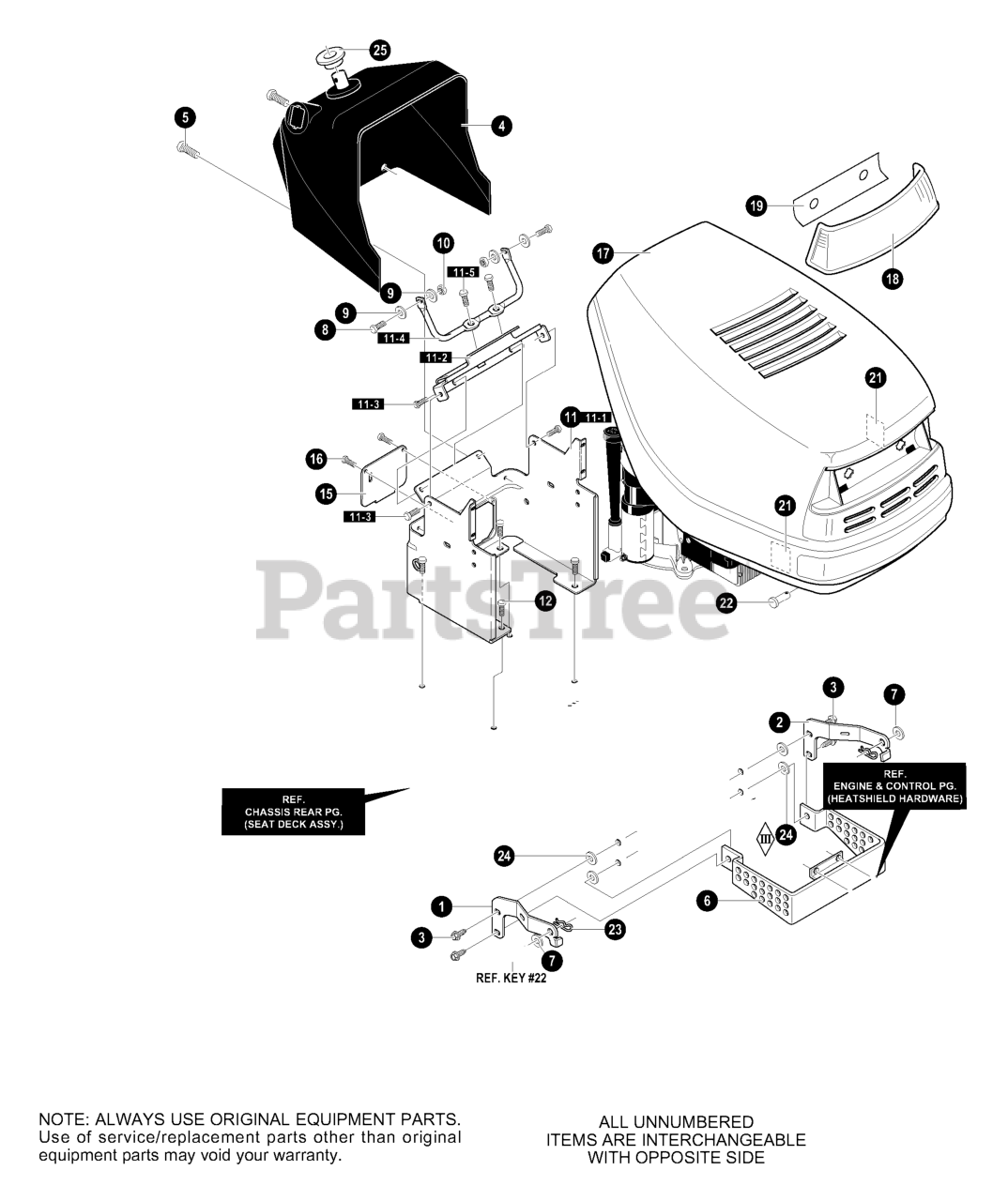

Front Chassis Assembly Parts Diagram

  • Title
1

Murray 95432-821

BRACKET, HOOD RH

$

$

Currently unavailable

2

Murray 95433-821

BRACKET, HOOD LH

$

$

Currently unavailable

3

Murray 711606MA

SCREW, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

4

Murray 94907

DASH
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

5

Murray 711762

SCREW,1/4-14X.75

$

$

Currently unavailable

6

Murray 95195-821

HEAT SHIELD GUARD

$13.99

$

Usually ships in 2-12 days

0

7

Murray 712480MA

WASHER, FLAT .375X.87 INSULATE

$18.99

$

Usually ships in 2-12 days

0

8

Murray 302628MA

SCREW, 1/4-20X .75 HHC

$4.49

$

In Stock, Qty 7

0

9

Murray 071067MA

WASHER, FLAT .286X .63X.065

$82.99

$

In Stock, only 1 left!

0

10

Murray 73826

NUT, 1/4-20 REGHEXCTRLK

$4.99

$

In Stock, Qty 20+

0

11

Murray 341569-898

ASSEMBLY LOWER CONSOLE

$

$

Currently unavailable

11-1

Murray 095425

TOWER, LOWER DASH

$

$

Currently unavailable

11-2

Murray 095426

SUPPORT, STEERING

$

$

Currently unavailable

11-3

Murray 710264

SCREW, 1/4-20X .50

$

$

Not available

11-4

Murray 095406

ROD, DASH BRACE

$

$

Currently unavailable

11-5

Murray 710264

SCREW, 1/4-20X .50

$

$

Not available

12

Murray 711606MA

SCREW, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

15

Murray 95270-898

PANEL, ACCESS

$

$

Currently unavailable

16

Murray 711629

SCREW, 10-24X.5

$

$

Not available

17

$185.99

$

Usually ships in 2-12 days

0

18

Murray 302670MA

LENS, HEADLAMP

$27.99

$

Usually ships in 2-12 days

0

19

Murray 308492

FOIL, LENS

$

$

Not available

21

Murray 301452MA

FOIL, HEAT REFLECTOR

$10.99

$

Usually ships in 2-12 days

0

22

Murray 711856MA

PIN,CLEVIS

$4.49

$

Usually ships in 2-12 days

0

23

Murray 711682MA

PIN,HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

24

Murray 6711MA

WASHER, PLASTIC .315X.75X.064

$3.99

$

Usually ships in 2-12 days

0

25

Murray 095404

BUSHING, STEERING SHAFT

$

$

Currently unavailable

--

Murray 712379

OPERATOR'S MANUAL

$

$

Currently unavailable
