40379x88 (VRO 4016 HRX) - Murray 40" Lawn Tractor (1999) Seat And Seat Pan Parts Diagram

40" Lawn Tractor

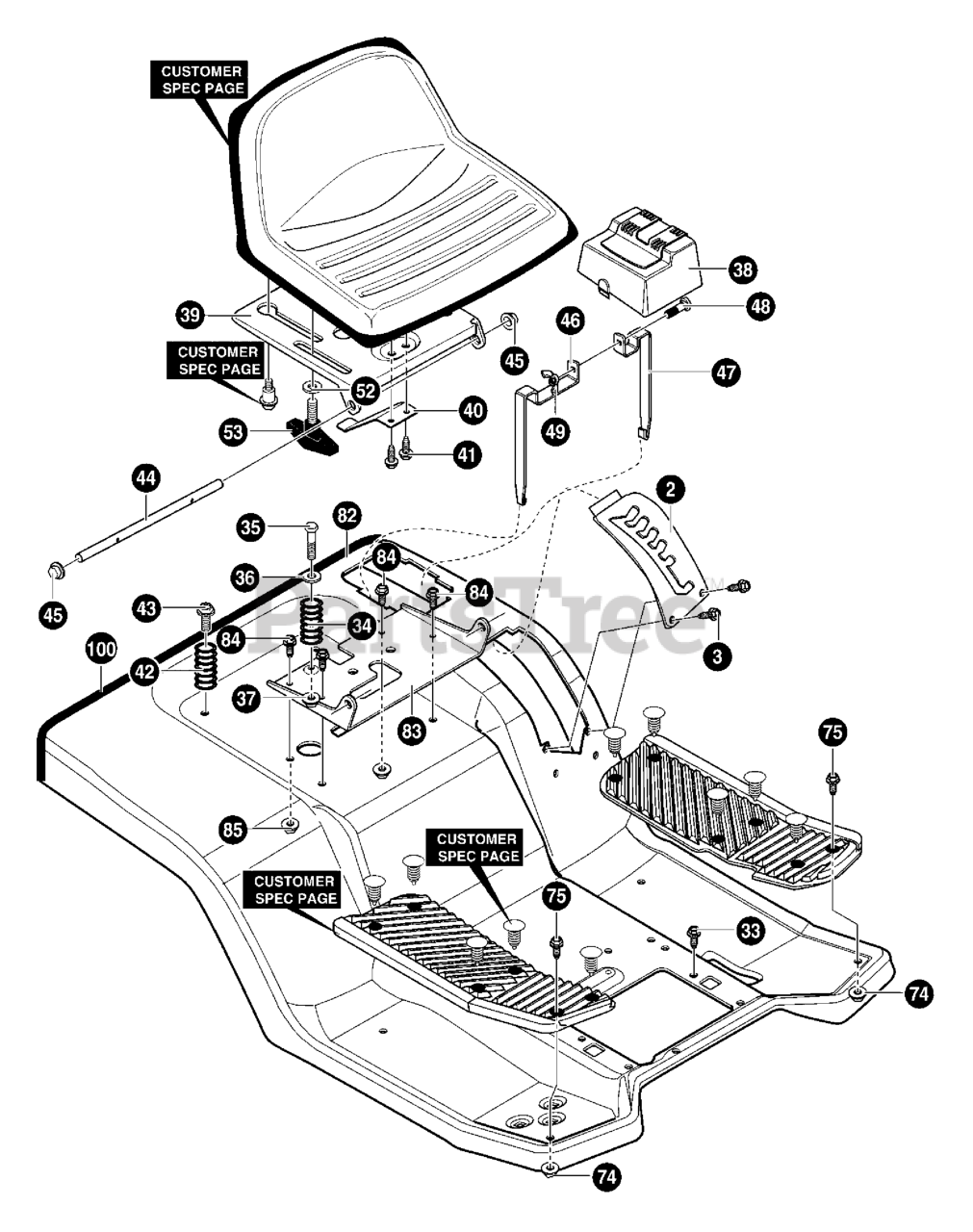

Seat And Seat Pan Parts Diagram

  • Title
2

Murray 95190-853

PLATE-LIFT DETENT 5 POS, REBA

$

$

Currently unavailable

3

Murray 711741

SCREW, #12X.50 PHPNHTAP

$1.99

$

Usually ships in 2-12 days

0

33

UNKNOWN

$

$

Not available

34

Murray 710136-853

SPRING, COMP. 4.57LGX1.17

$

$

Currently unavailable

35

Murray 711610

BOLT, SHOULD 1/4-20

$

$

Not available

36

Murray 95293

ZINC WASHER CUP

$1.99

$

Usually ships in 2-12 days

0

37

Murray 302635

NUT, CTRLK 1/4-20

$4.99

$

Usually ships in 2-12 days

0

38

Murray 94200MA

COVER, BATTERY

$26.99

$

Usually ships in 2-12 days

0

39

Murray 94154-848

SUPPORT, SEAT

$

$

Currently unavailable

40

Murray 094057MA

SPRING - LEAF

$5.99

$

Usually ships in 2-12 days

0

41

Murray 711592

SCREW, 1/4-20X.50 HWDFLLK MACK

$335.99

$

Usually ships in 2-12 days

0

42

Murray 710109

SPRING, COMP 2.43LG

$5.49

$

Usually ships in 2-12 days

0

43

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

44

Murray 95294

ZINC HINGE SEAT PIVOT

$

$

Not available

45

Murray 711627MA

NUT, PUSH CAP .375

$

$

Not available

46

Murray 95393-853

BATTERY BRACKET L.H.

$

$

Currently unavailable

47

Murray 95394-853

BATTERY BRACKET R.H.

$

$

Currently unavailable

48

Murray 711680

BOLT, 1/4-20X.63 CARR.
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

49

Murray 711636

NUT, WING 1/4-20

$

$

Not available

52

Murray 711644MA

WASHER, FLAT .344X.62X.06

$3.49

$

Usually ships in 2-12 days

0

53

Murray 711747MA

BOLT, WING 5/160-18X.50

$3.99

$

Usually ships in 2-12 days

0

74

Murray 710026

NUT, 5/16-18 HEXWDFLLK WHIZ

$

$

Not available

75

Murray 711891

BOLT, 5/16-18X.75 CARR.

$5.49

$

Usually ships in 2-12 days

0

82

Murray 94311-848

SEAT DECK PEDAL HYDRO

$

$

Currently unavailable

83

Murray 94153-848

BRACKET, SEAT PIVOT

$

$

Currently unavailable

84

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAPSGIBP

$7.99

$

In Stock, only 2 left!

0

85

Murray 711634MA

NUT, 5/16-18 HWDFLLK

$3.99

$

Usually ships in 2-12 days

0

100

Murray 055021

TRIM, STRIP

$

$

Currently unavailable
