40379x88 - Murray 40" Lawn Tractor (2000) Mower Suspension Assembly Parts Diagram

40" Lawn Tractor

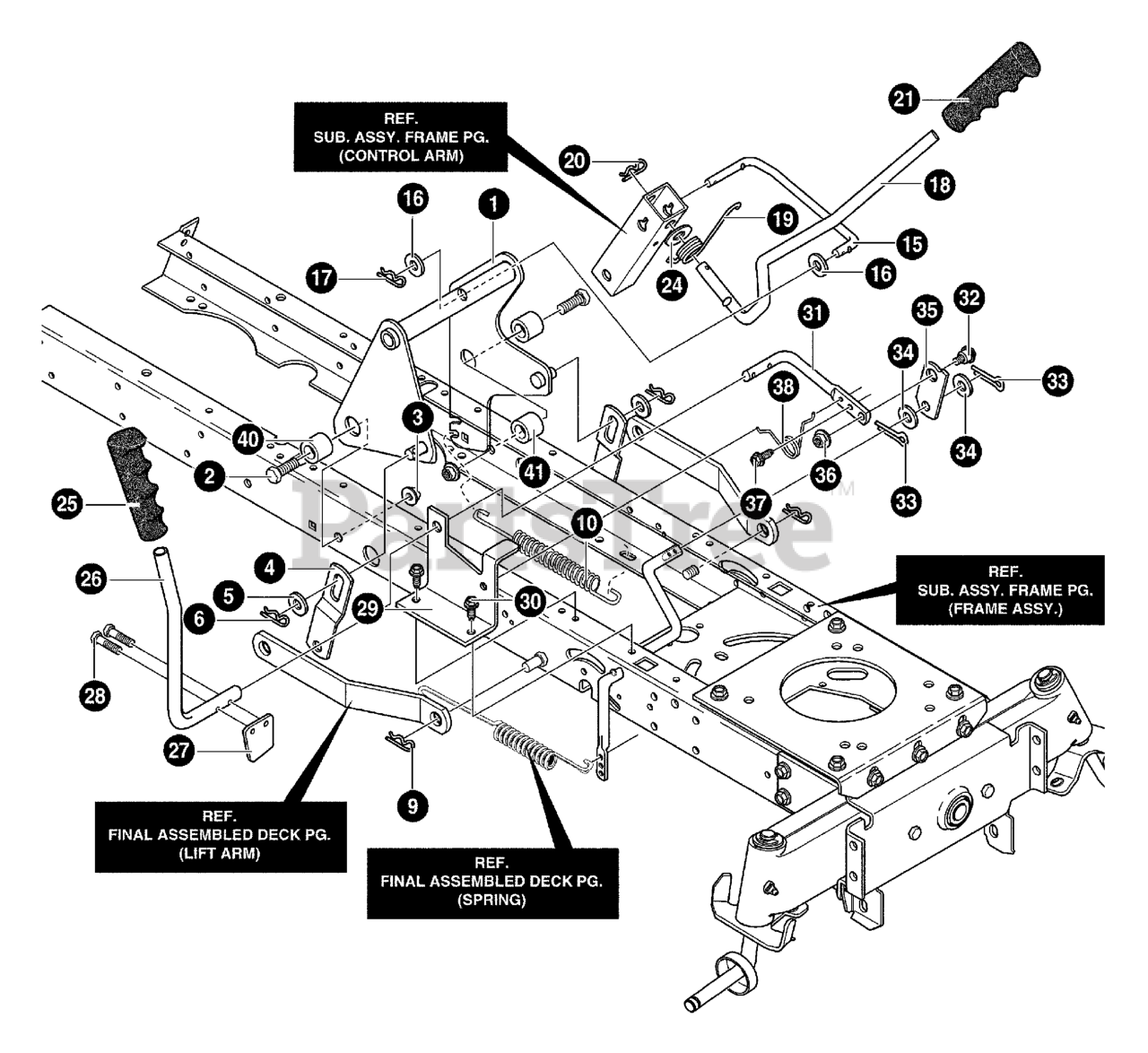

Mower Suspension Assembly Parts Diagram

  • Title
1

Murray 95233-853

ASM., LIFT ARM

$

$

Currently unavailable

2

Murray 711917MA

SCREW, 1/2-13X1.50

$3.99

$

Usually ships in 2-12 days

0

3

Murray 711918

NUT, 1/2-13 LOCK

$

$

Currently unavailable

4

Murray 94262-853

BRACKET, LIFT LINK

$

$

Currently unavailable

5

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

6

Murray 711676

PIN, HAIR

$

$

Currently unavailable

9

Murray 711676

PIN, HAIR

$

$

Currently unavailable

10

Murray 710235

SPRING, EXTENSION 9.82X1.01OD

$4.49

$

In Stock, only 1 left!

0

15

Murray 711981

LINK-LIFT HANDLE

$

$

Currently unavailable

16

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

17

Murray 711676

PIN, HAIR

$

$

Currently unavailable

18

Murray 690532

ZINC HANDLE, LIFT

$335.99

$

Usually ships in 2-12 days

0

19

Murray 710111

TORSION SPRING .657LG

$18.99

$

Usually ships in 2-12 days

0

20

Murray 711676

PIN, HAIR

$

$

Currently unavailable

21

Murray 092697MA

GRIP, LIFT
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

24

Murray 711616

WASHER, FLAT .550X1.00X11

$

$

Not available

25

Murray 092698MA

GRIP, PTO 5/8"
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

26

Murray 712033

PTO HANDLE

$24.99

$

Usually ships in 2-12 days

0

27

Murray 95284MA

ZINC PADDLE, SWITCH
(Superseded to 094022ZMA)

$3.99

$

In Stock, only 3 left!

0

28

Murray 711621MA

SCREW, THD FORM .246X1.050LG

$3.99

$

Usually ships in 2-12 days

0

29

Murray 94018-853

BRACKET, PTO

$

$

Currently unavailable

30

Murray 780055MA

SCREW, 5/16-18 x 0.50 WAHHTAP
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

31

Murray 95283MA

ZINC LEVER, PTO

$54.99

$

Usually ships in 2-12 days

0

32

Murray 711613MA

BOLT, .50X.75 HHSH 3/8-16

$1.99

$

Usually ships in 2-12 days

0

33

Murray 711659

PIN, HAIR .072DIAX1.13LH

$1.99

$

Usually ships in 2-12 days

0

34

Murray 711615MA

WASHER, FLAT .518X.87X16

$1.99

$

Usually ships in 2-12 days

0

35

Murray 95282

ZINC LINK PTO

$

$

Not available

36

Murray 711622

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

37

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

38

Murray 710141

TORSION SPRING

$11.99

$

In Stock, only 1 left!

0

40

Murray 94309

SPACER .513IDX.880OD

$

$

Currently unavailable

41

Murray 56150MA

SPACER, SLEEVE .94X1.13X.531

$5.99

$

Usually ships in 2-12 days

0
